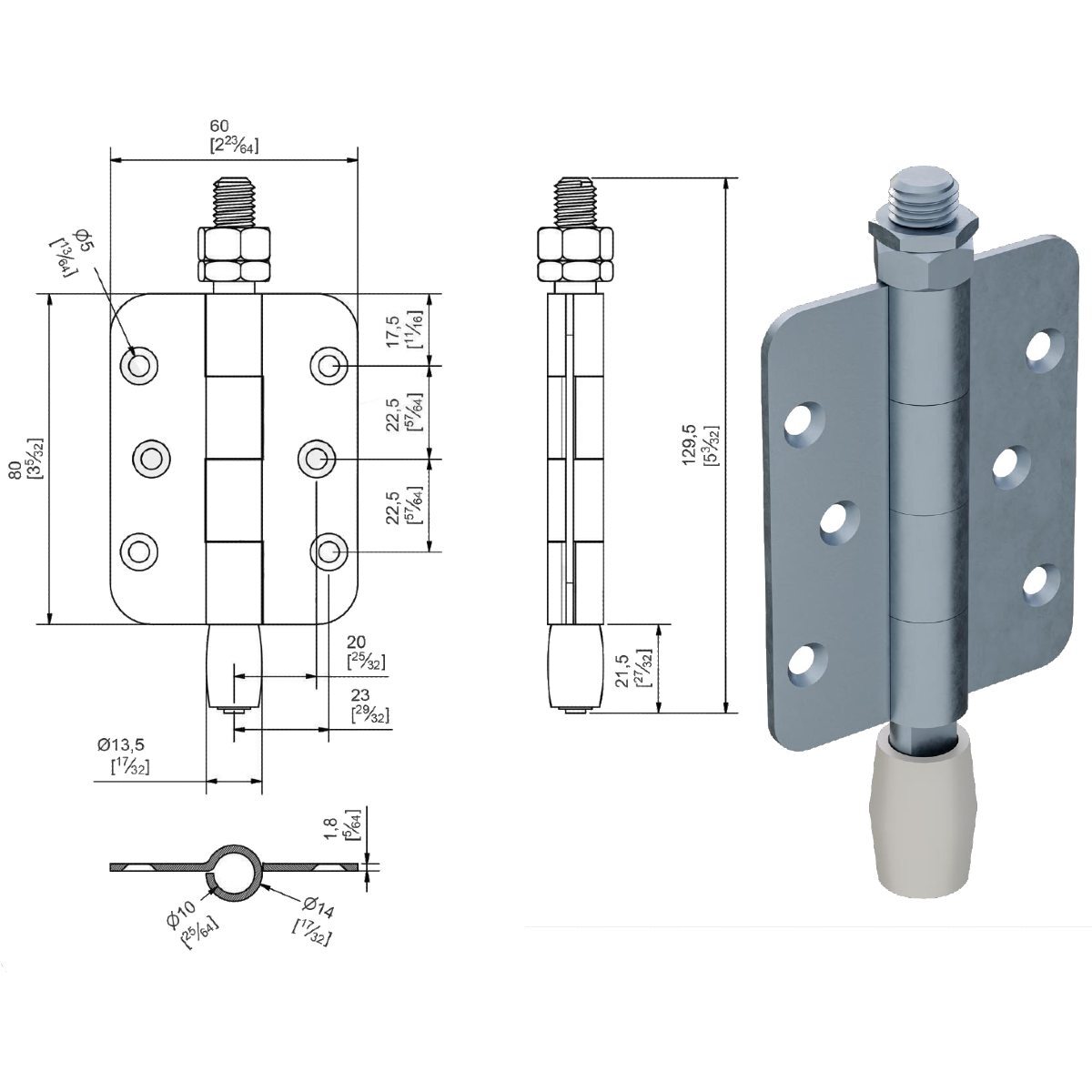

Hinge With Bottom Guide 1104

1940-001
Price: £20.53inc VAT
Write a review
− +

All Sportub components are manufactured to en1527 standard. All tracks are coated with magnesium zinc (without chromium) to preserve all the qualities to all weather conditions. They have up to 800h resistance to salt spray and red rust.

  • Dedicated for Sportub Folding 500 (20kg)
  • Manufactured to European standard EN1527
  • All technical drawings and DWG models available in 'Technical Docs' tab
  • Bottom connecting hinge with integrated bottom guide to work with 1109 Guide channel
  • If you require assistance configuring the product please fill in the 'Enquiry Form' in a tab above

Download Technical Drawing (pdf)

Download DWG Model (dwg)

Download Sportub Folding 500 (pdf)

Sliding Systems

System Type:
Bi-Folding Doors
