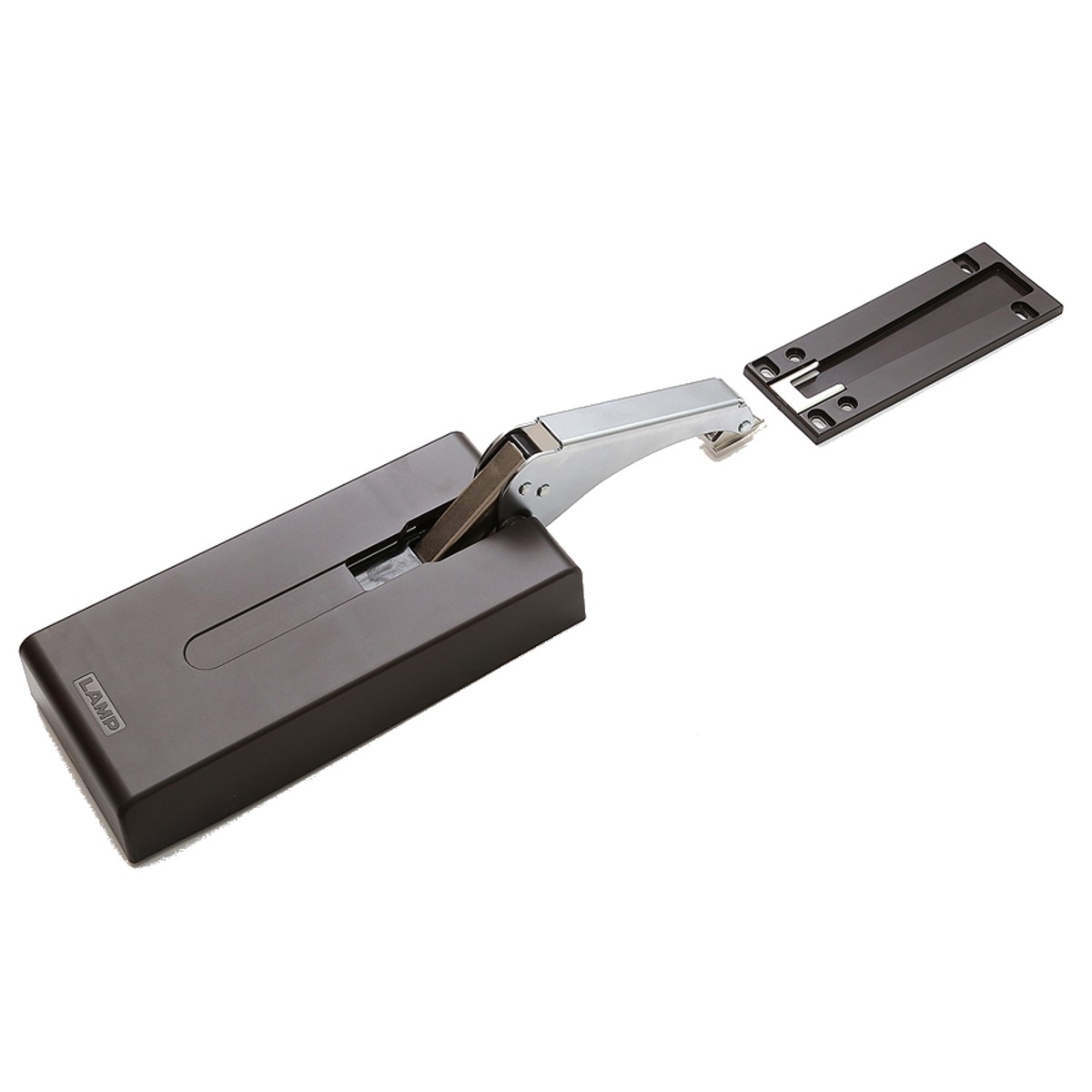

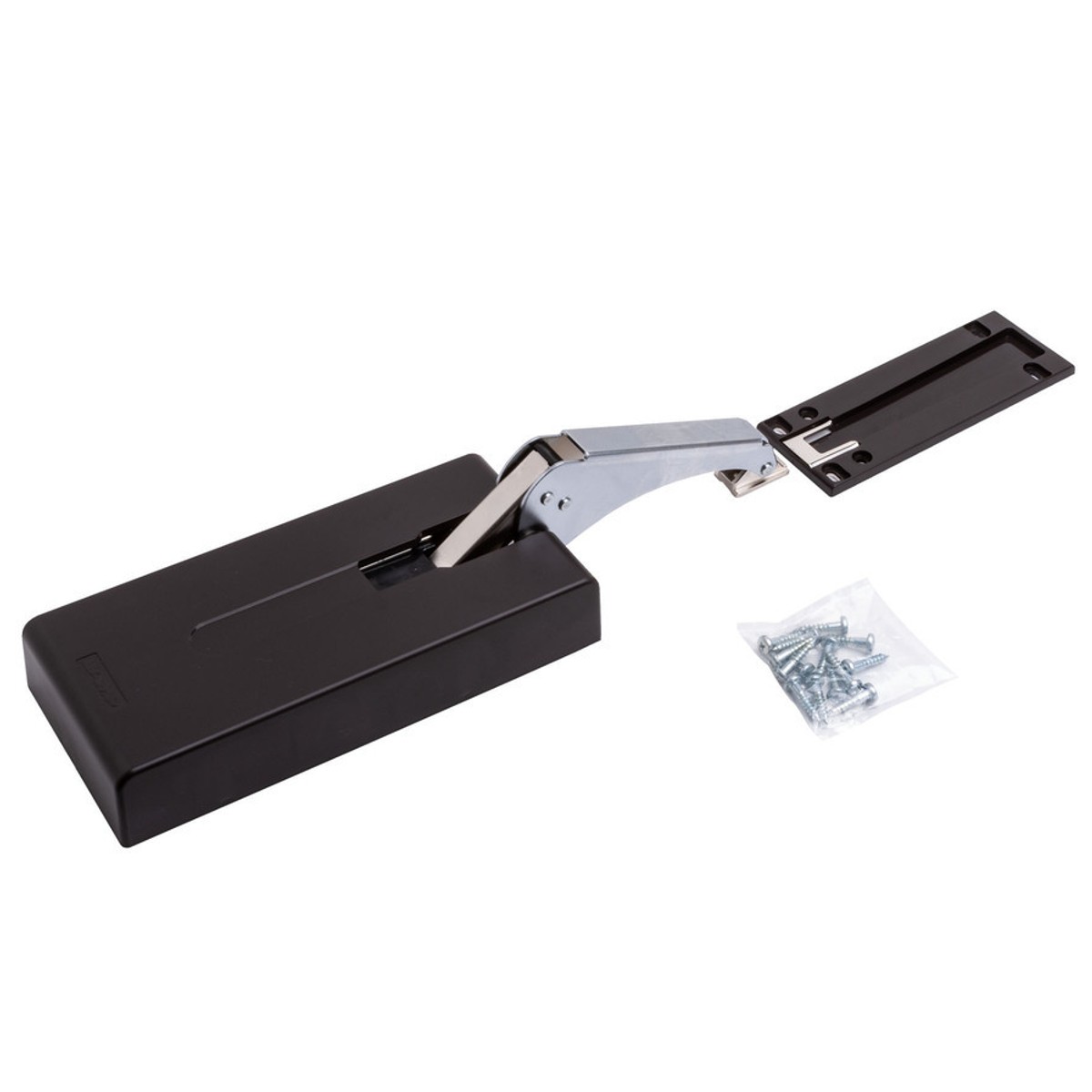

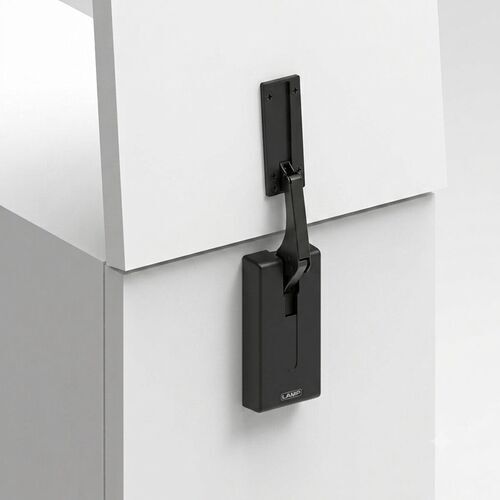

Lift-Assist Damper

Discover the ultimate in heavy-duty performance with the Lift-Assist Damper made by Sugatsune (LADH). This innovative damper is meticulously engineered to enhance efficiency and safety in the most demanding applications such as flaps at bars, restaurants and receptions. It is designed to provide exceptional support and reliability, ensuring smooth operation under the toughest conditions to allow easy access.

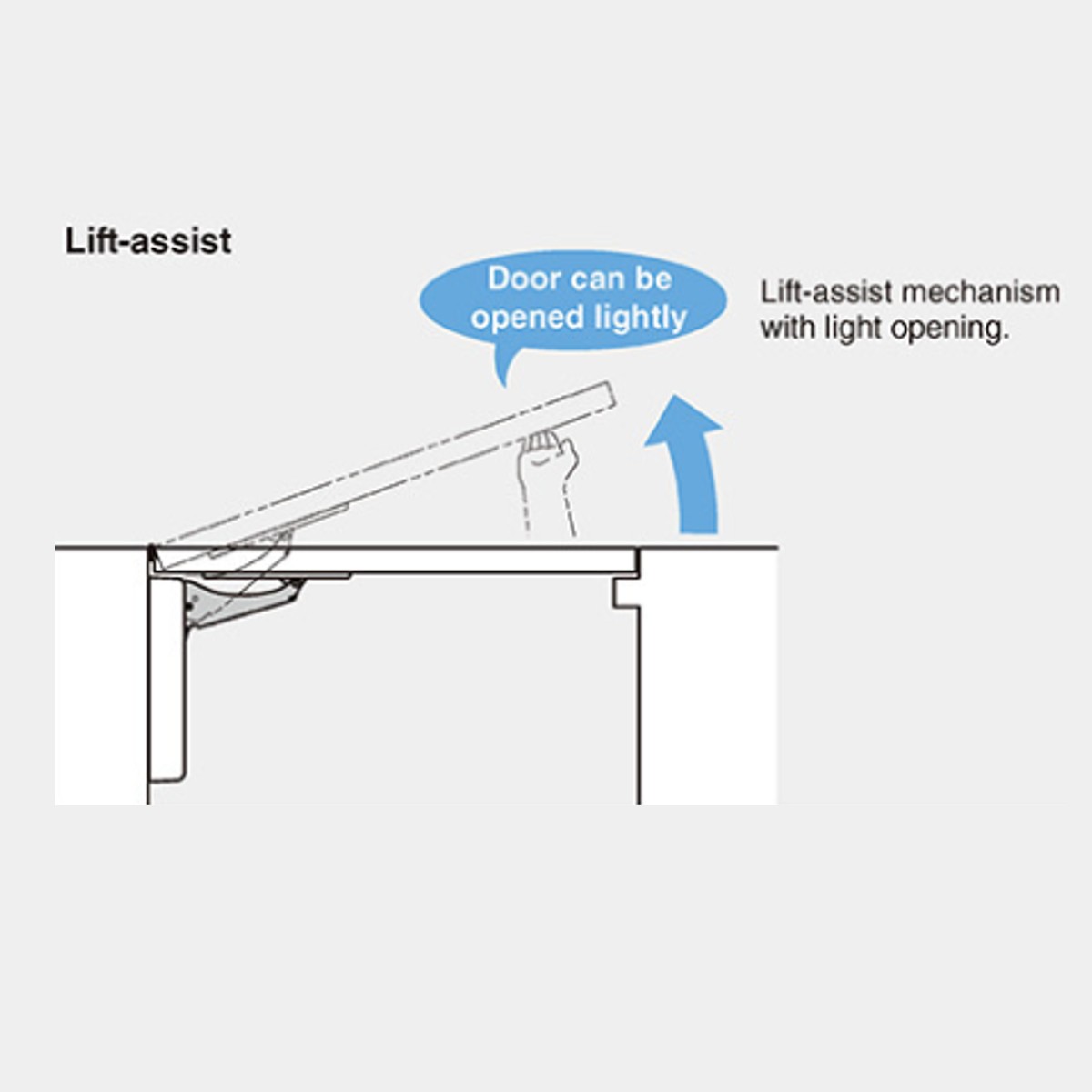

• Light opening
• Made out of steel
• Adjustable for 25-50 N_m
• Minimum flap thickness: 30mm
• Maximum flap thickness: 50mm

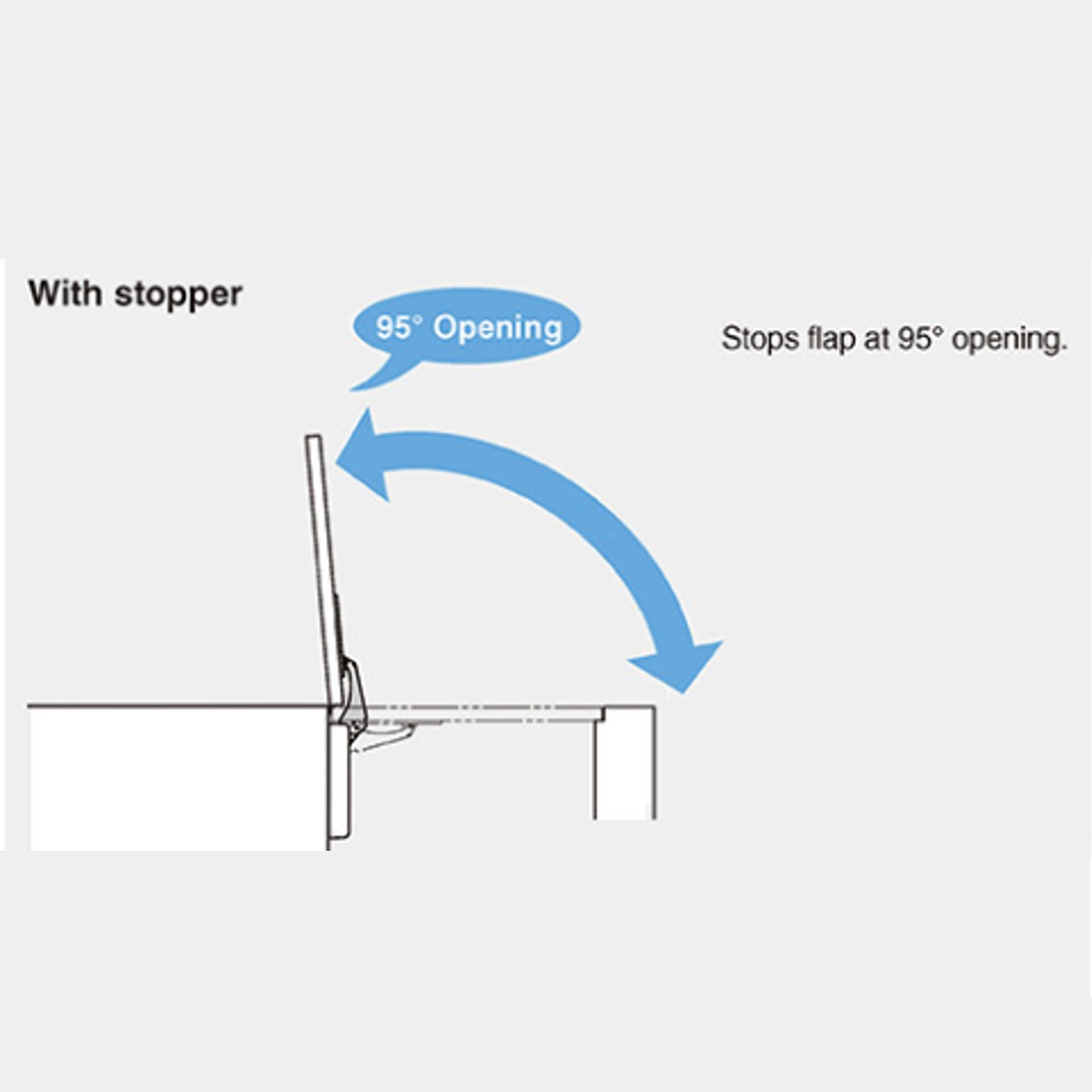

• Stops at 95°opening with a stopper
• Can be used in a pair for twice the strength

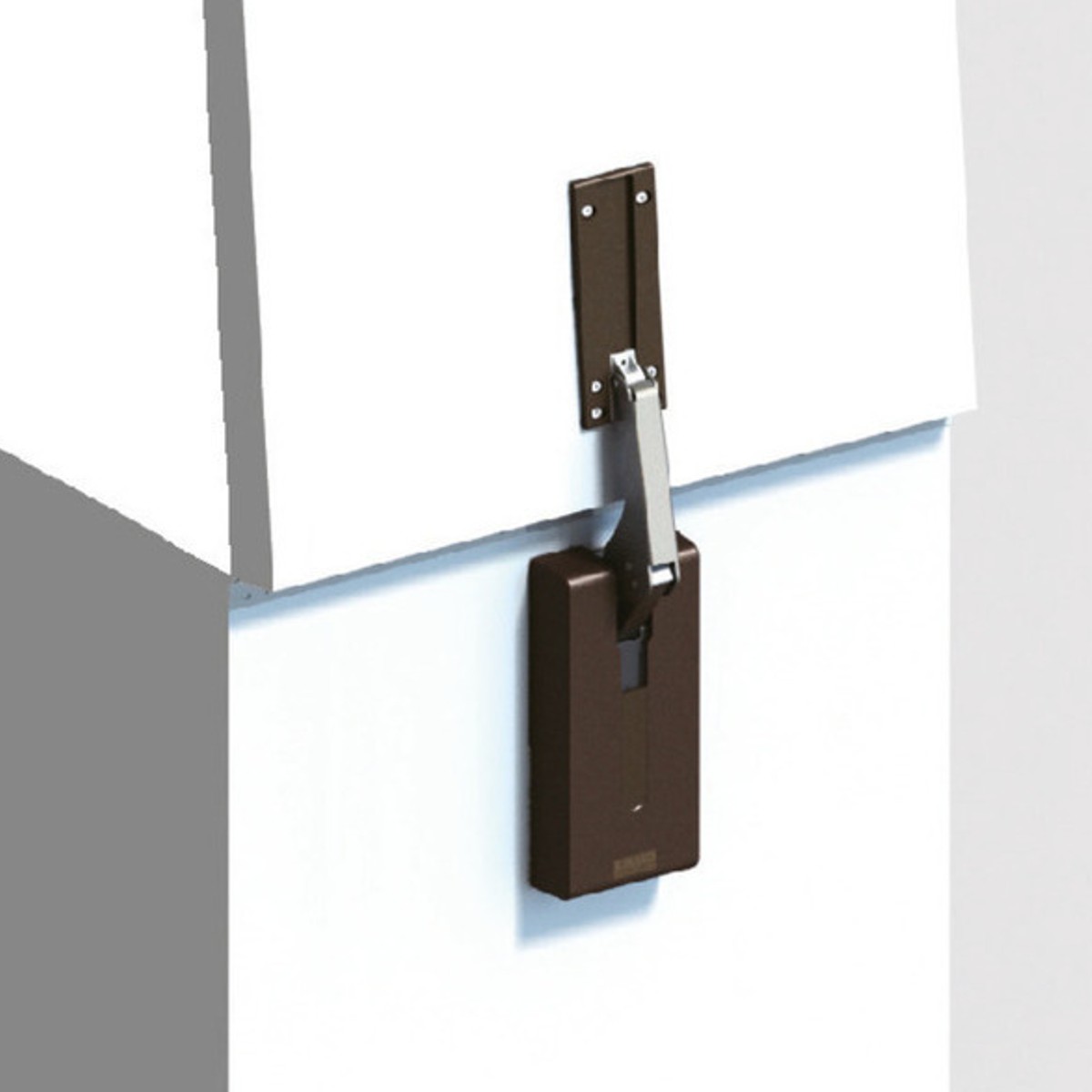

• Ideal for counter flaps at bars, restaurants and receptions

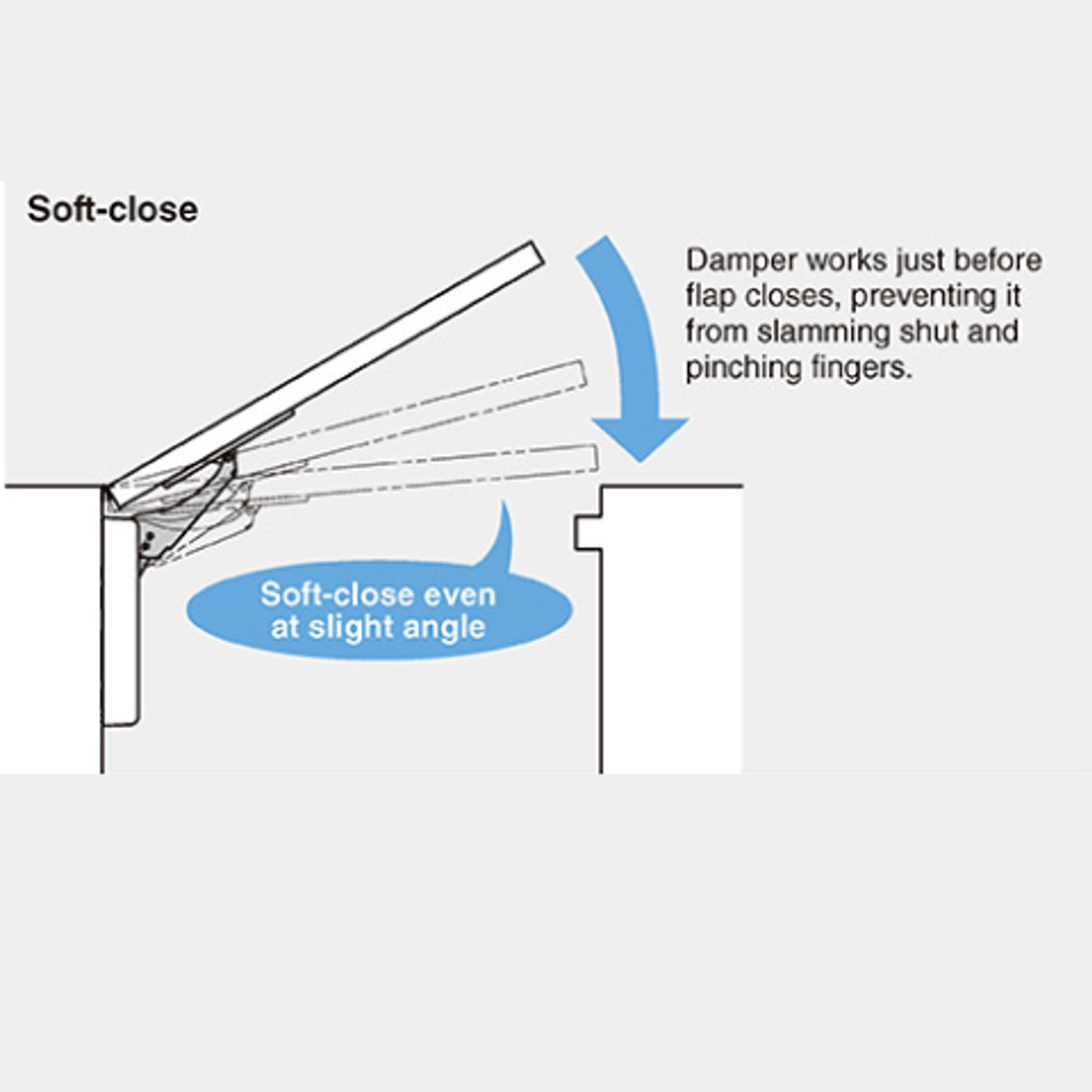

• Soft close movement near the closing radius prevents slamming

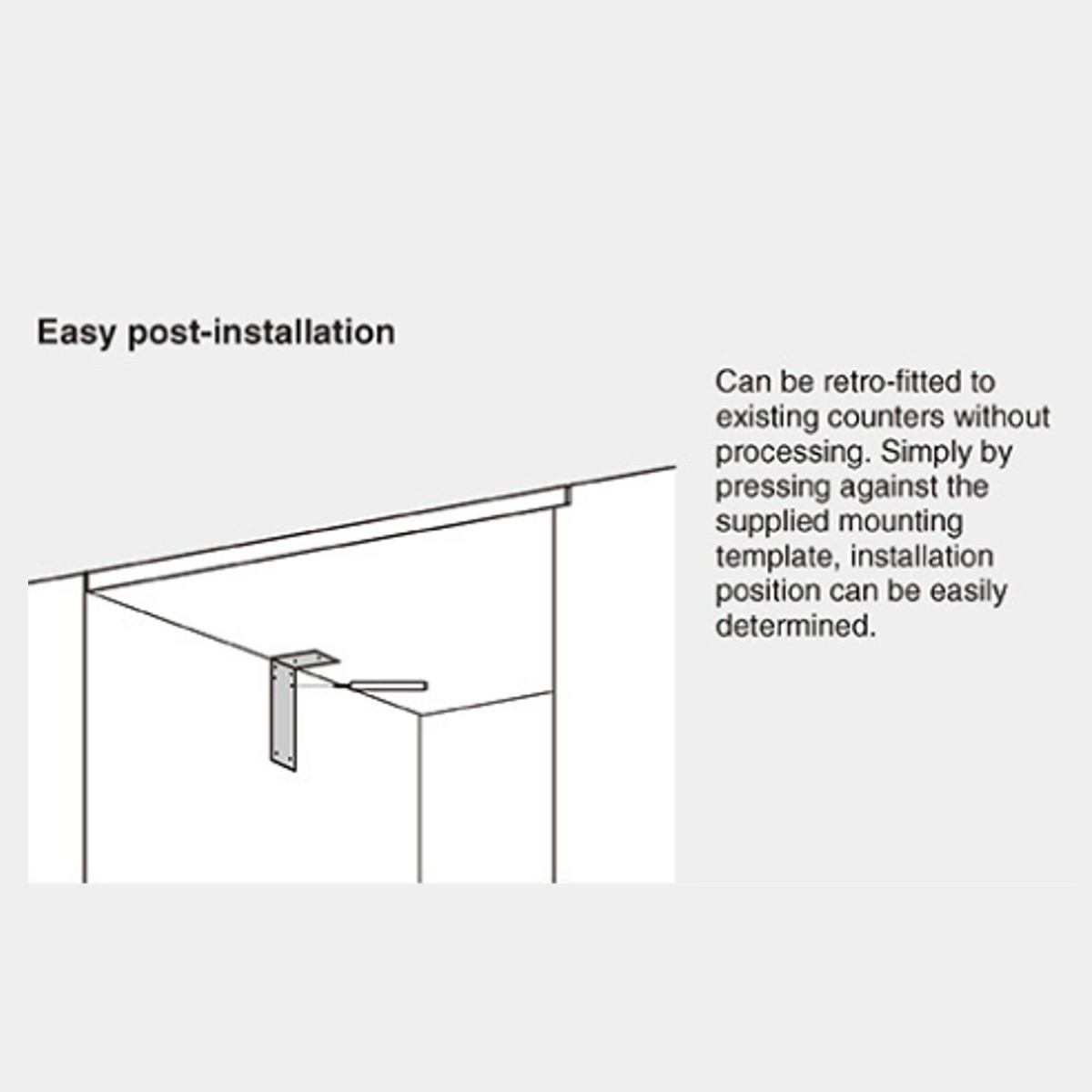

• Installation position can be easily determined with the supplied template

Please note that:

• While open the flap is not held firmly in position
• Make sure to have sufficient hinge strength and panel material
• The closed flap will not be held in place, please install some type of catch on the side of the flap

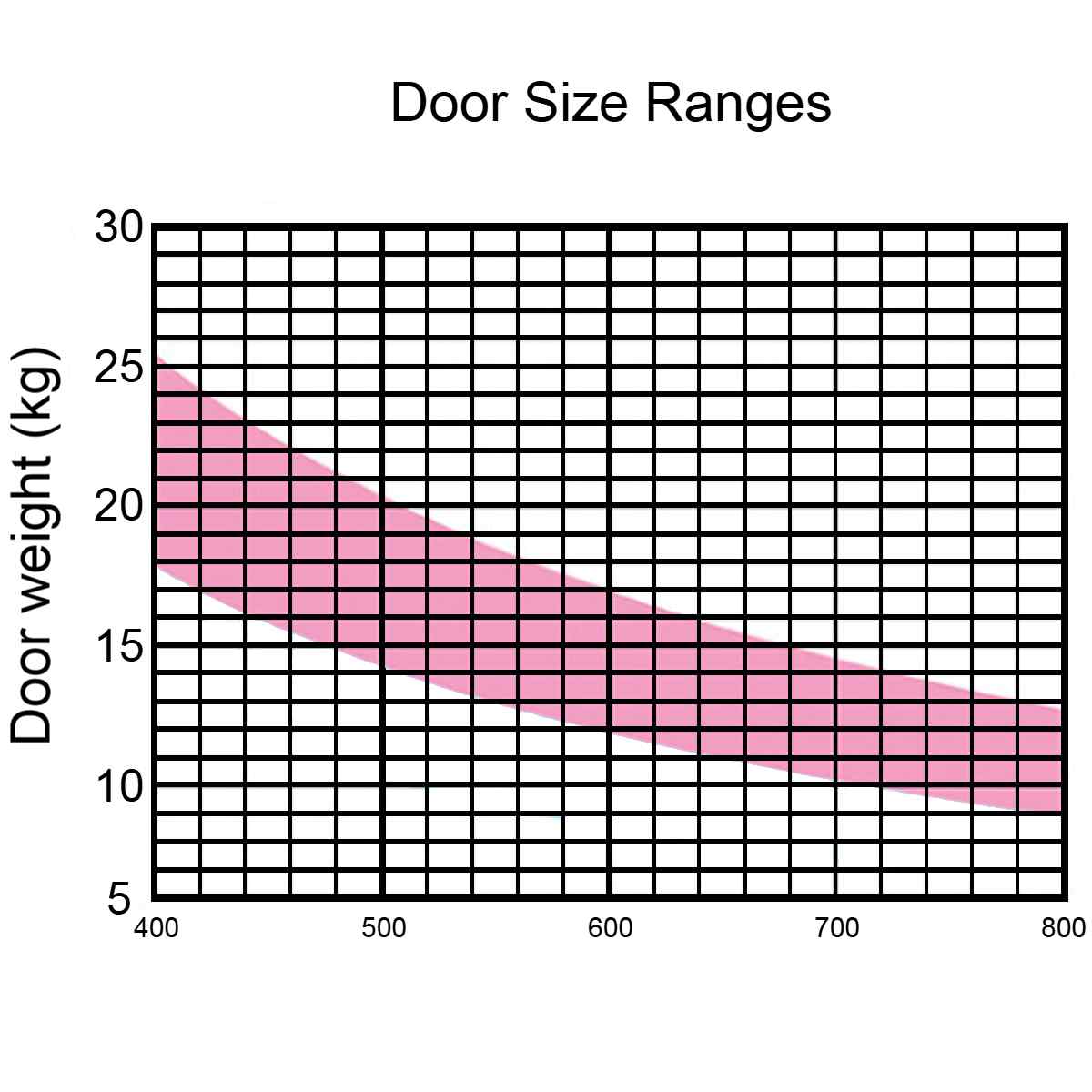

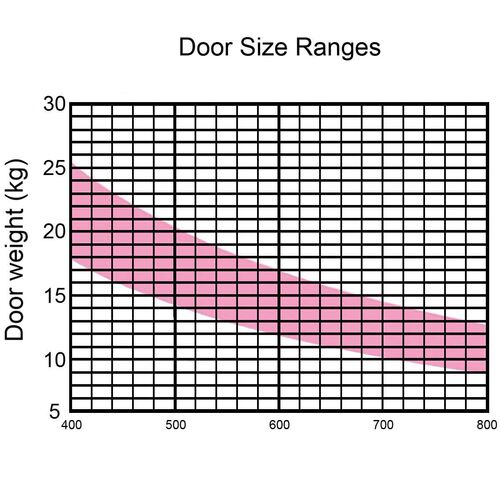

• To work out the maximum door moment (N_m) please use the formula below:
  • Door height/2 x door weight(kg) x 9.8 = torque moment (N_m)
