OPK Rotary Pivot Sliding Door Gear

6492-001
Price from: £730.87inc VAT
Write a review
− +

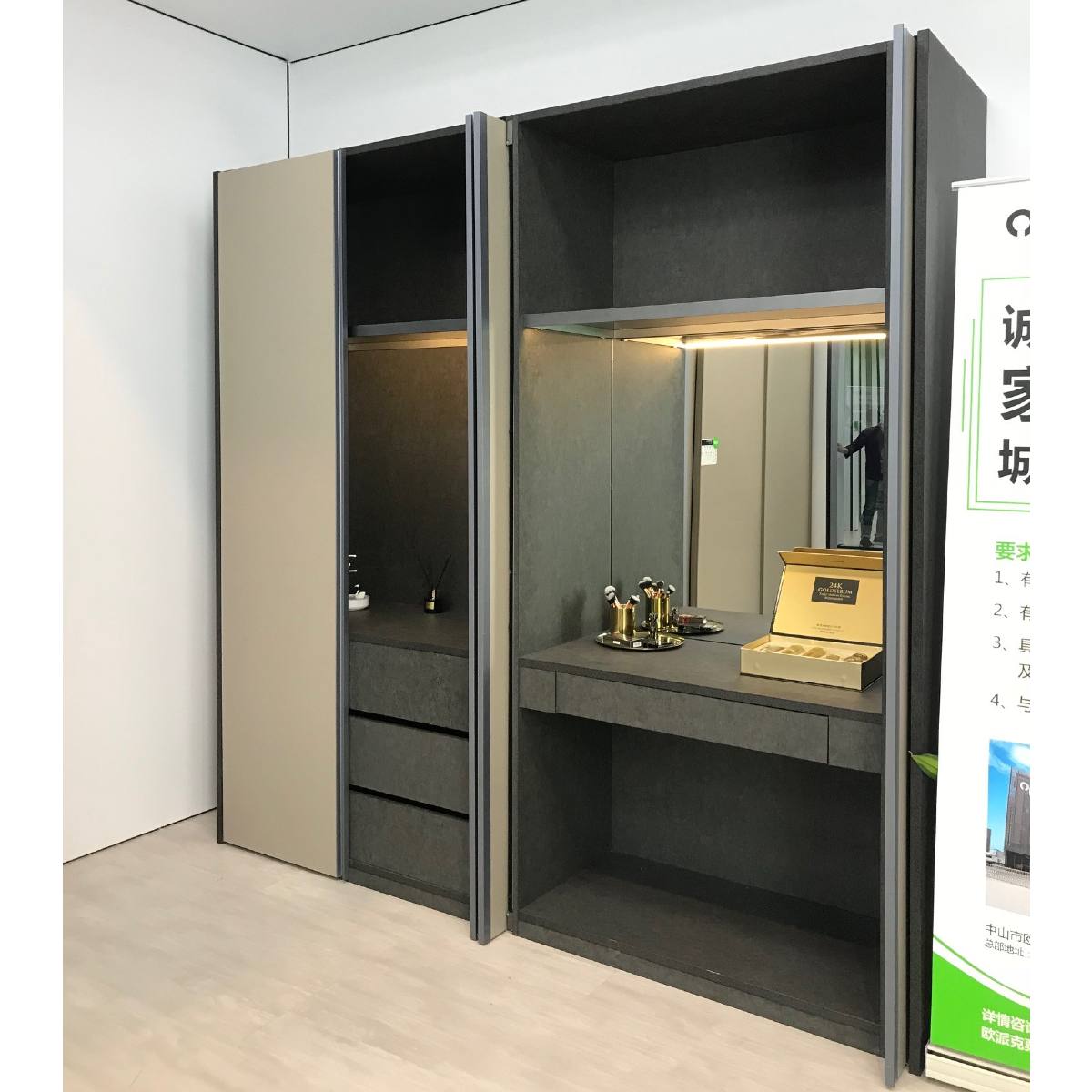

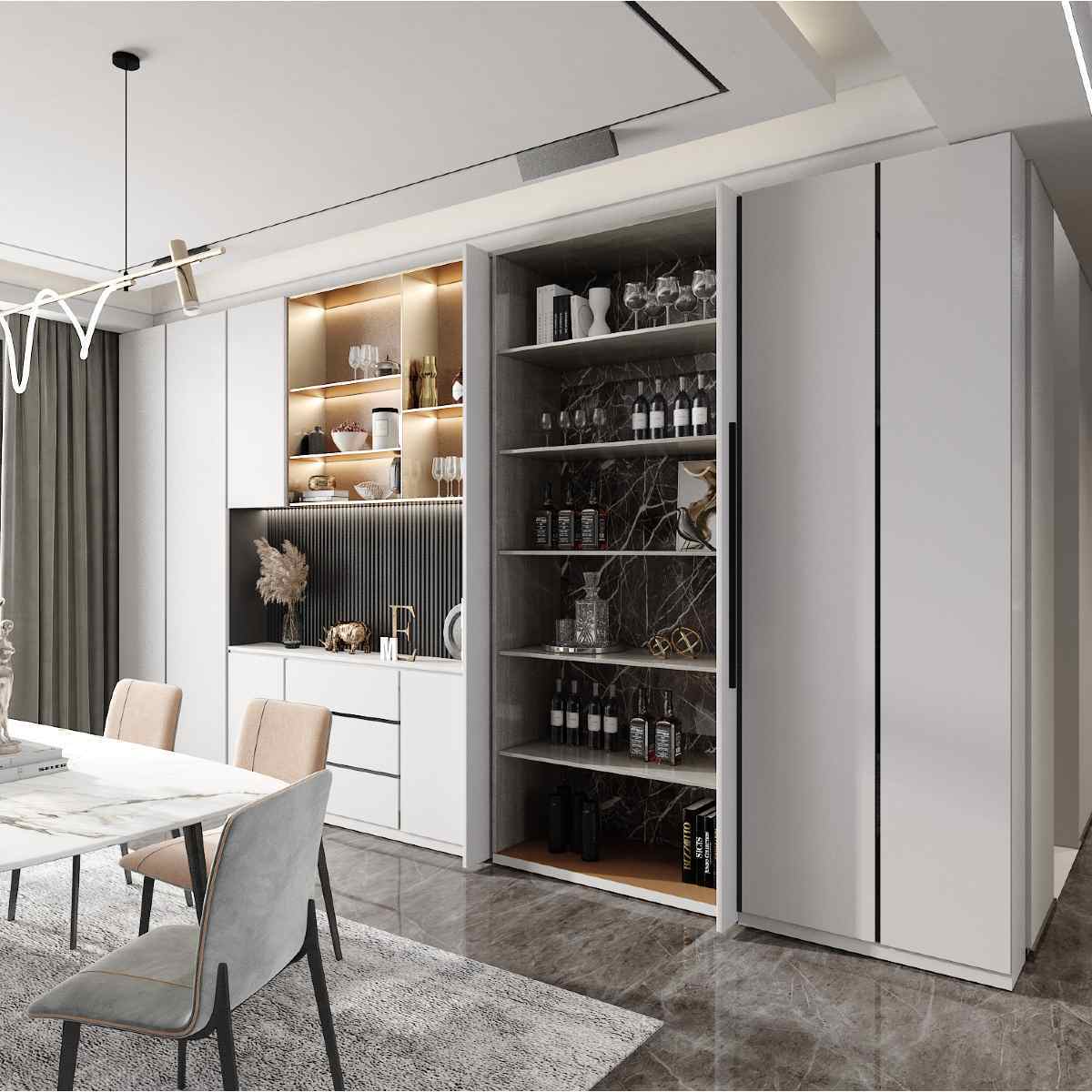

OPK rotary is a simple and effective pivot sliding door gear also called cabinet pocket door gear. It helps to free up space taken by the traditional hinged door by retracting it back into the cabinet carcass or pocket.

  • Minimum door thickness: 18mm
  • Maximum door thickness: 25mm

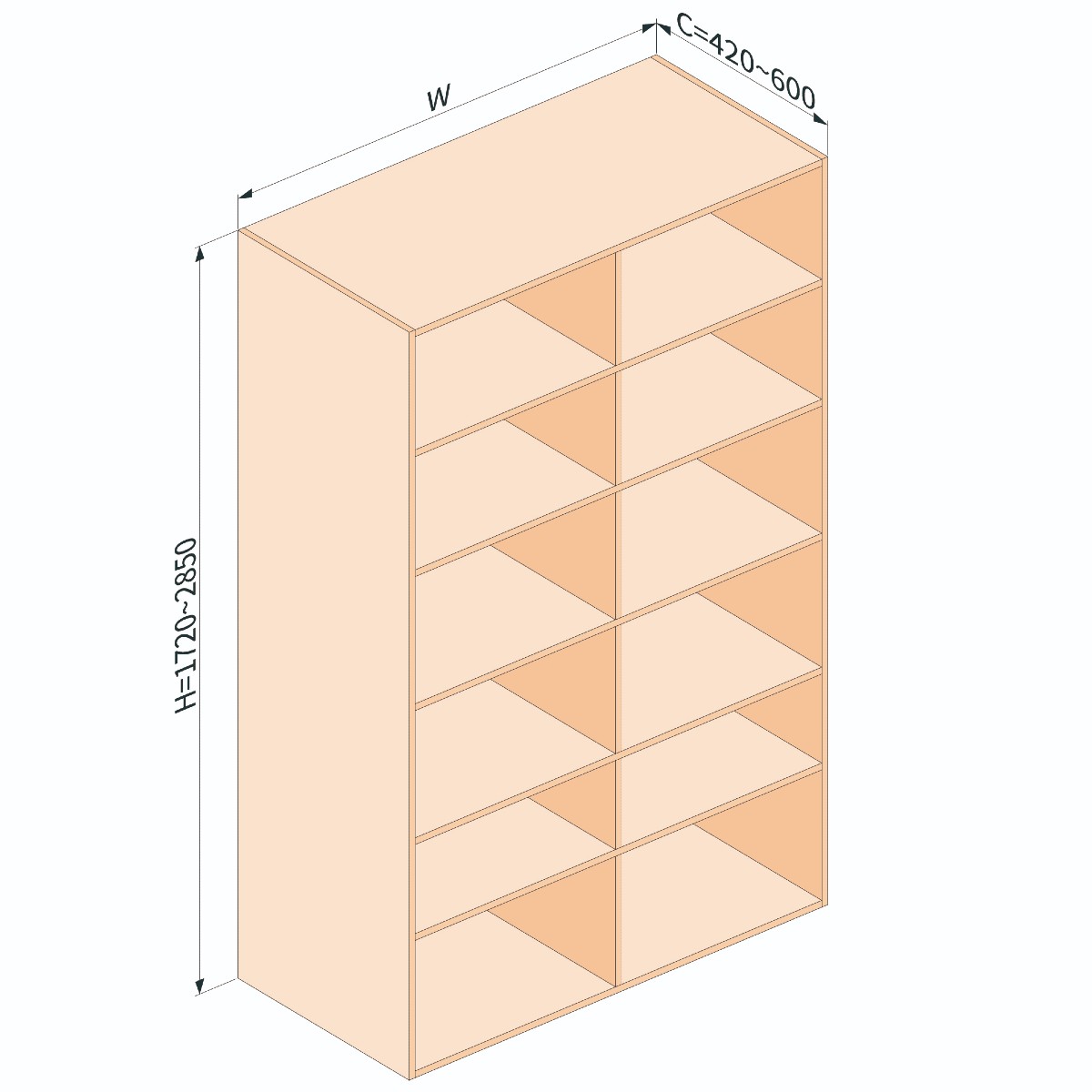

  • Minimum door height: 1720mm
  • Maximum door height: 2850mm
  • Minimum door width: 420mm
  • Maximum door width: 600mm
  • Cabinet depth: 420-600mm
  • For door weight: 15-25kg
  • Silent movement
  • Soft-close when putting the door into the pocket and when closing the door

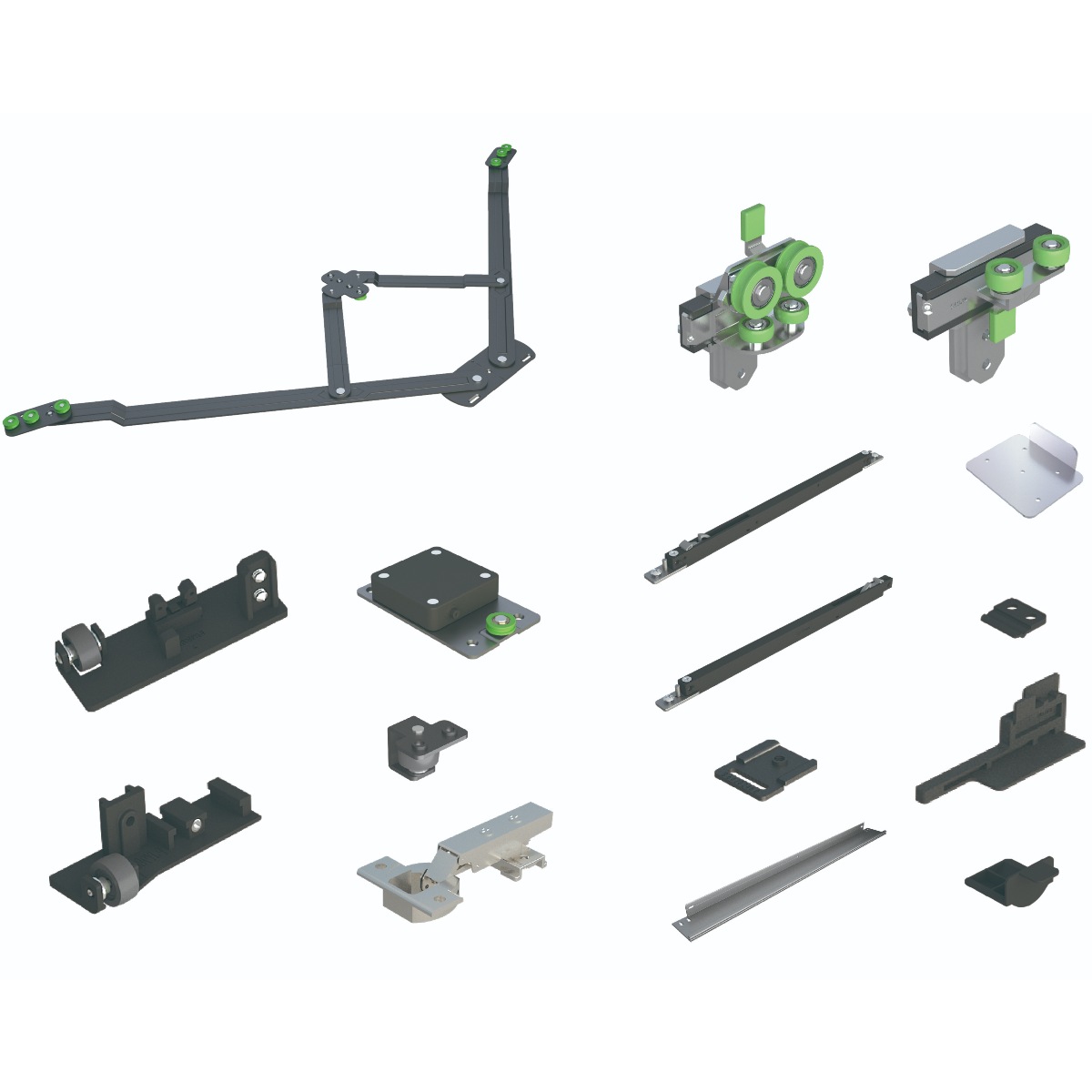

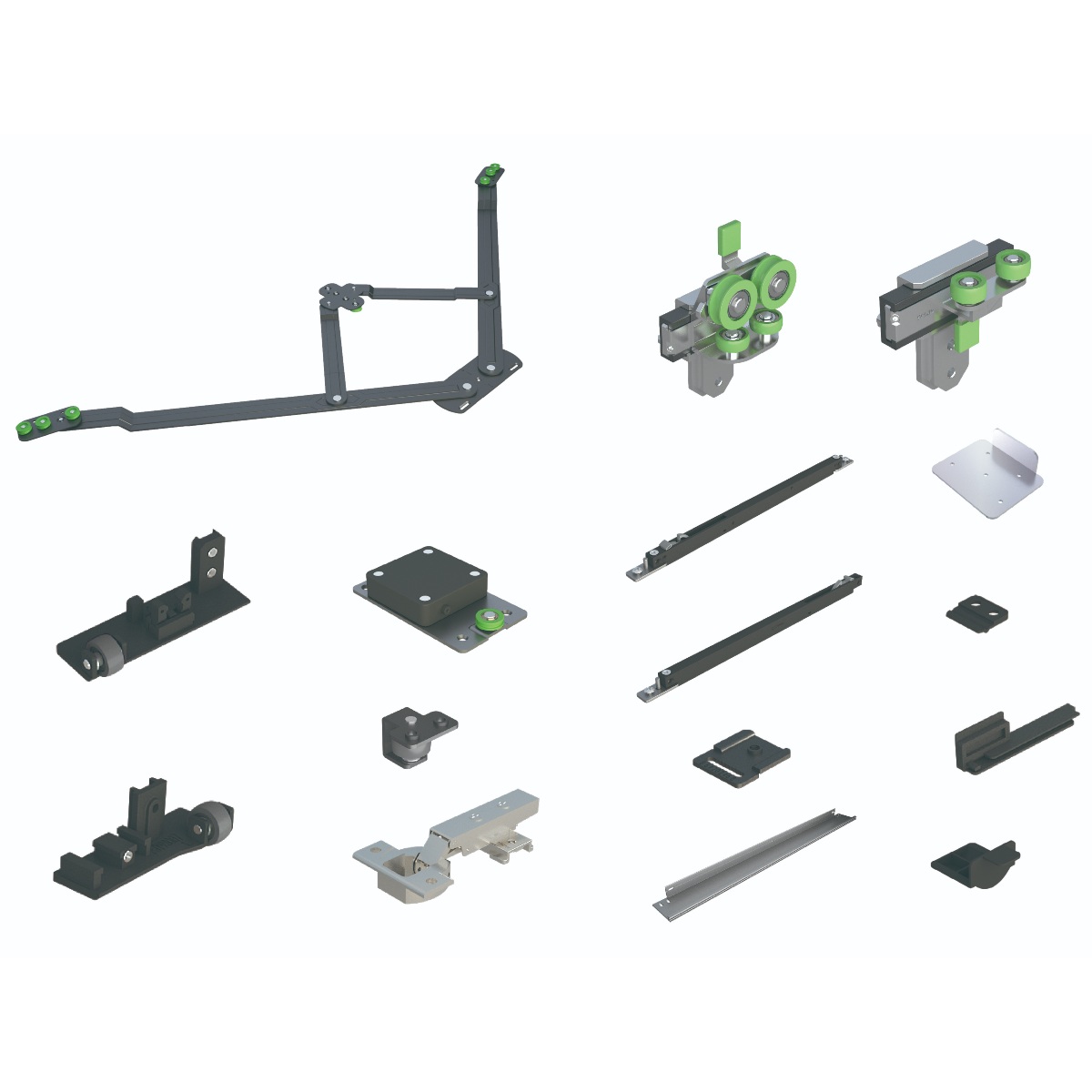

A set contains:

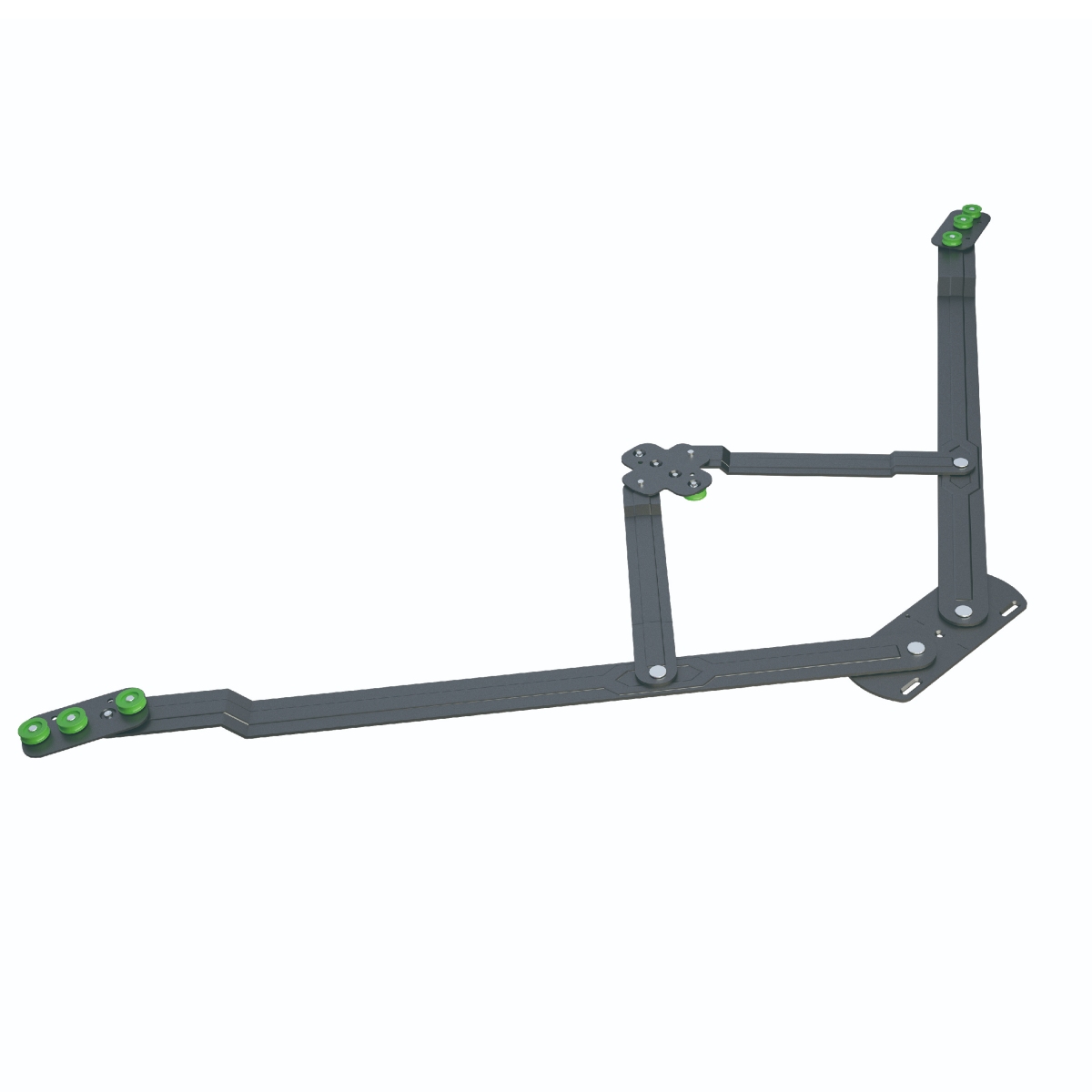

  • scissor bearings
  • 1 x cover
  • 2 x rollers
  • 1 x door opener
  • 1 x upper plug
  • 1 x guiding aid
  • 1 x bottom plug
  • 1 x upper roller
  • 1 x bottom roller
  • 2 x 540mm plates

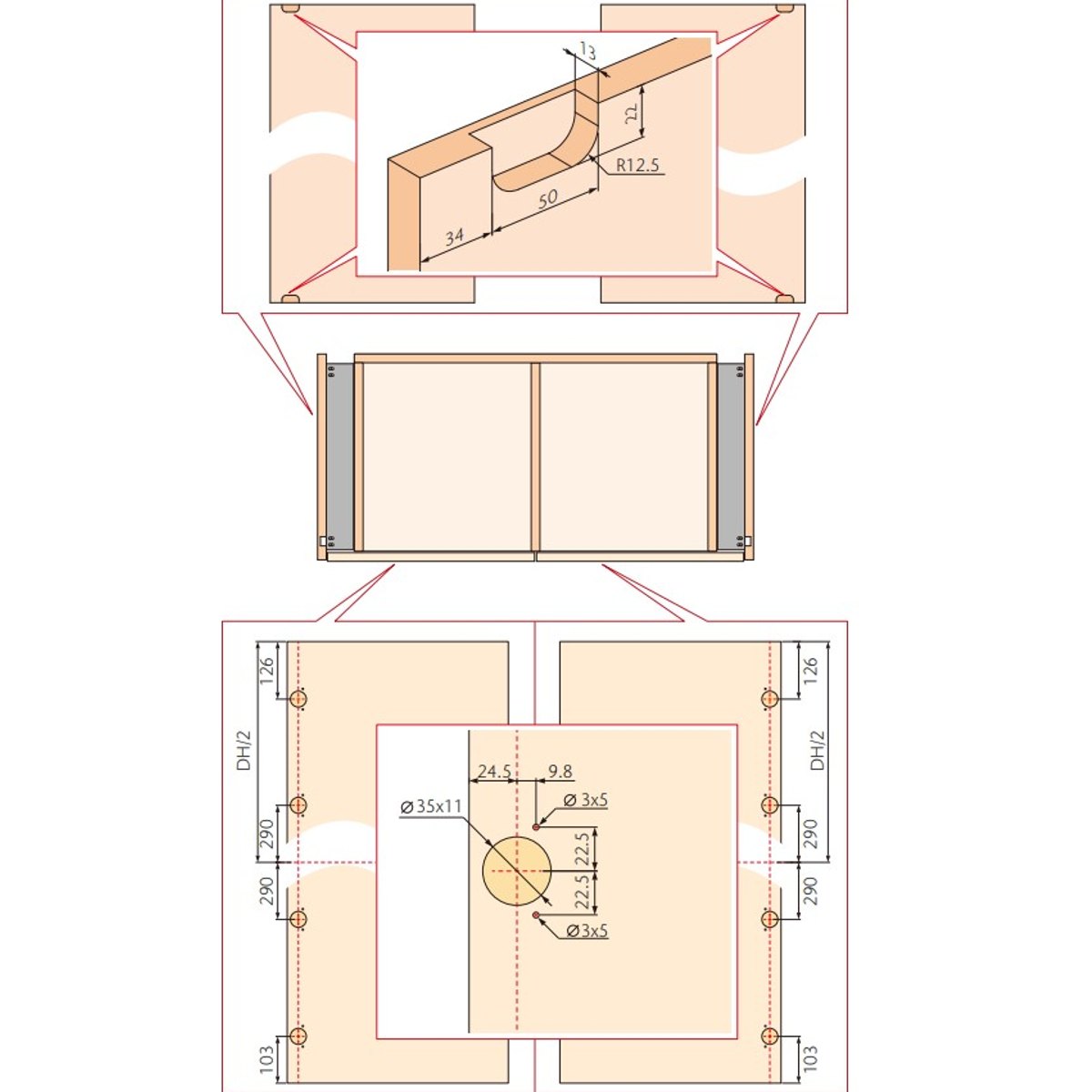

  • 1 x drilling pattern
  • 6 x plastic fixed part
  • 1 x bracket fixed plate

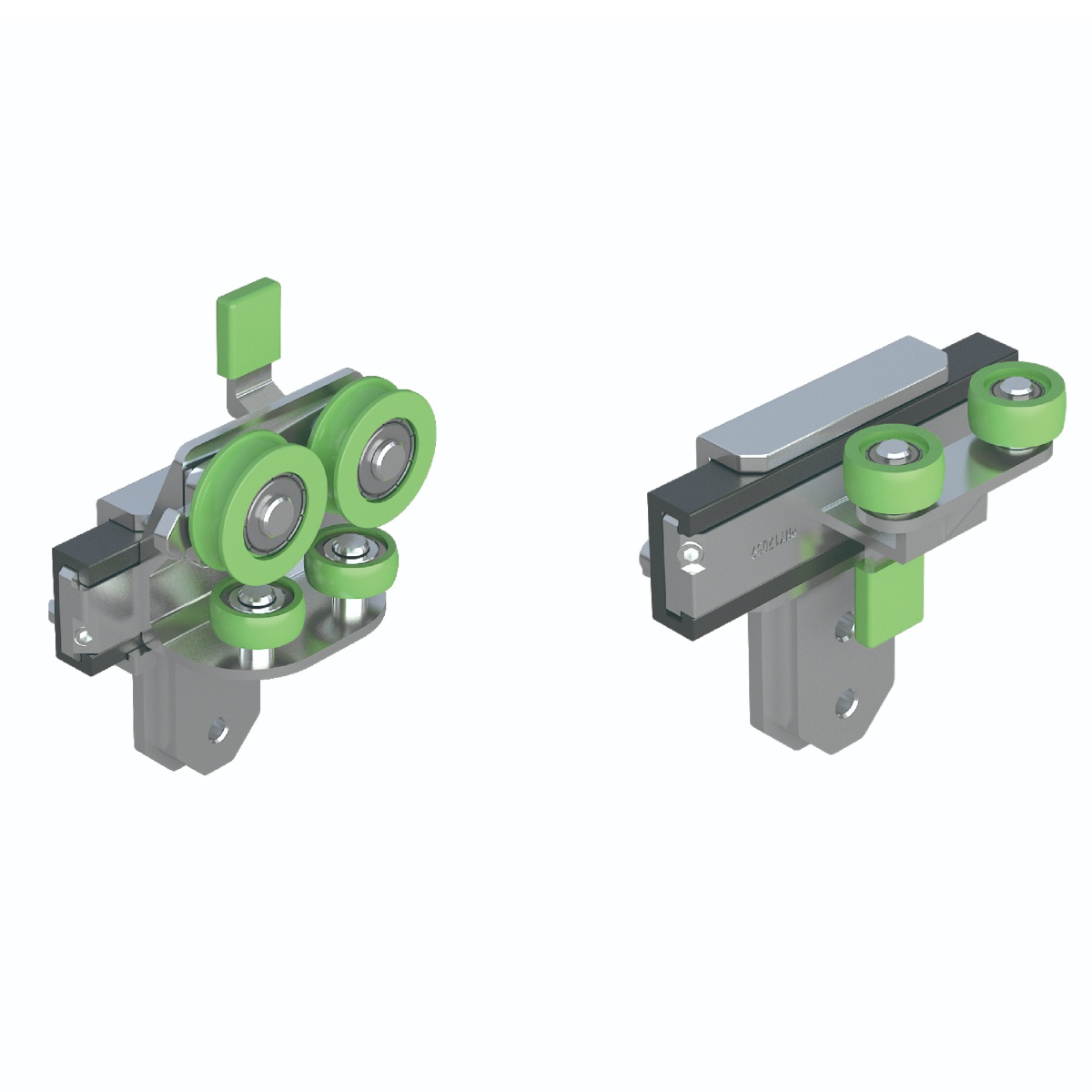

  • 1 x upper roller with damper
  • 1 x bottom roller with damper
  • 4 x concealed hinge with base plate

Please note that:

  • One kit = enough accessories for one door

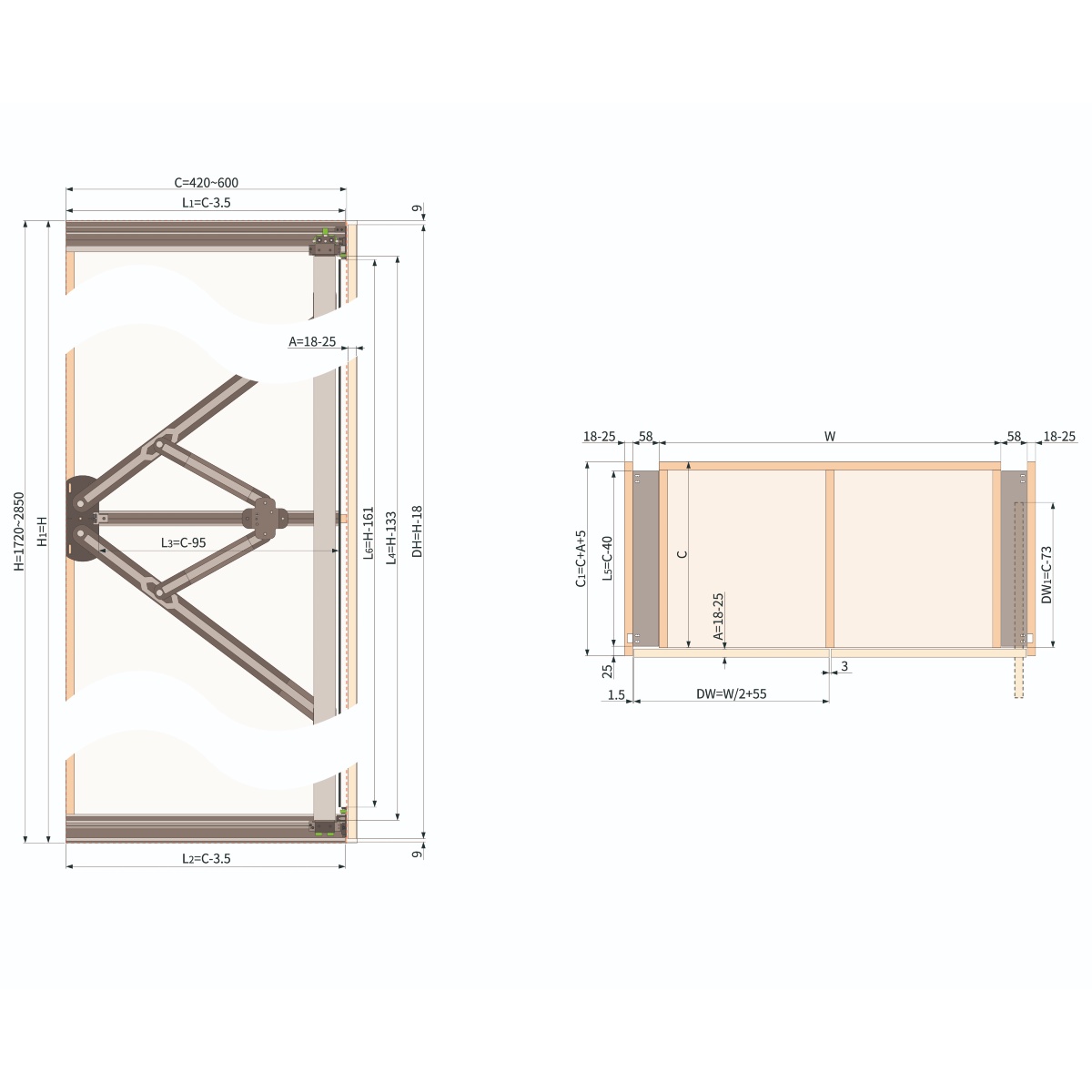

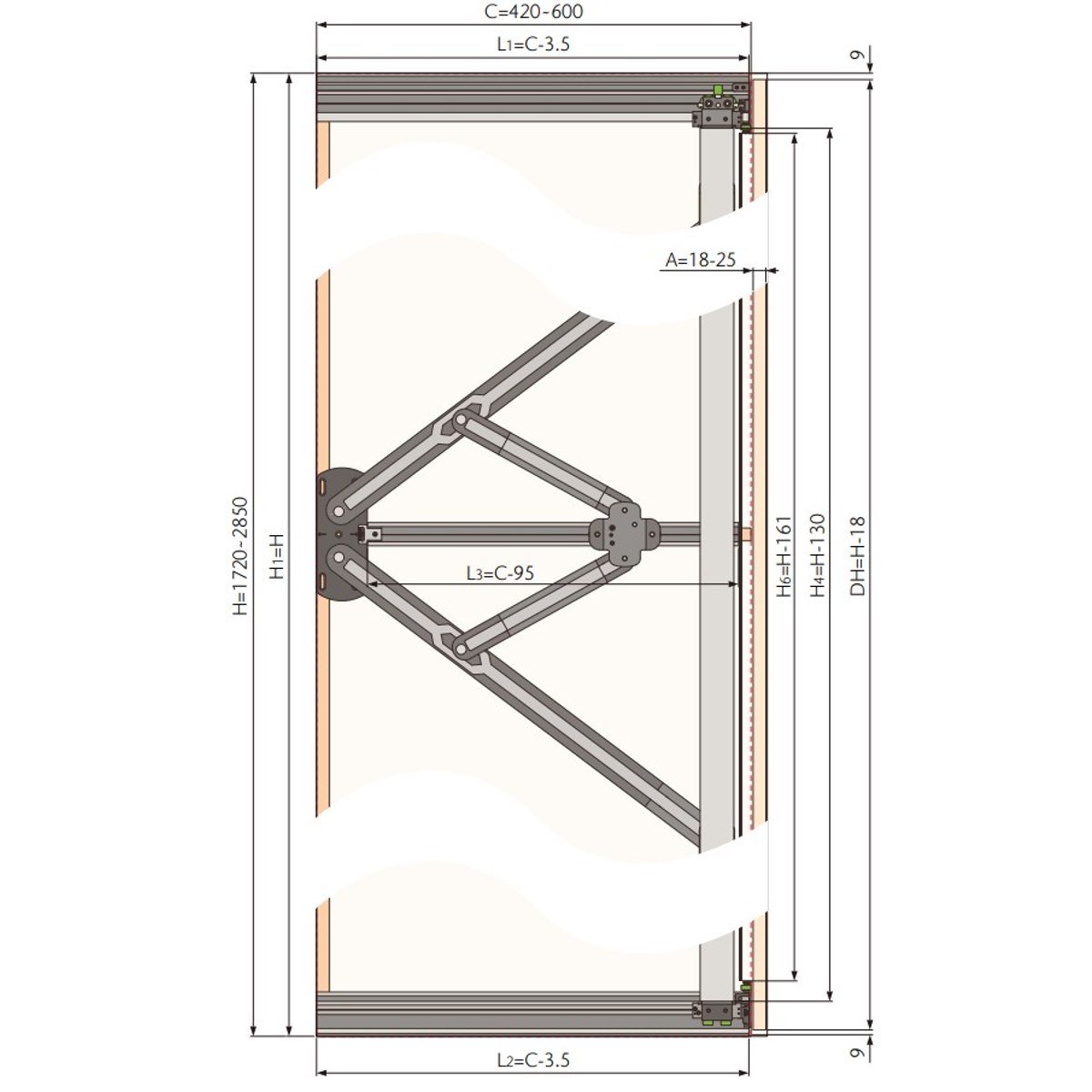

  • Door width/pocket depth: please refer to the mounting instructions in the 'Technical docs' tab

Download Mounting Instructions (pdf)

Download Catalogue (pdf)

Version:
Left

Sliding Systems

Dedicated for:
  • 15-50mm
Included accessories for :
  • 1 door
Maximum Door Weight :
50kg
Product short Name:
Rotary
System Type:
Pivot
