Oval 3-Way Adjustable Concealed Hinge 70mm - HES3D-70

The Sugatsune HES3D-70 concealed hinge is renowned for its exceptional durability and sleek, modern design, making it an ideal choice for high-end cabinetry and furniture applications. This innovative hinge not only ensures a seamless and elegant appearance but also provides smooth and reliable operation, enhancing the overall functionality and aesthetic appeal of your projects. Whether you’re working on residential or commercial installations, the HES3D-70 offers the perfect blend of form and function to meet the most demanding design standards. Dedicated for room dividing or entrance doors making installation a breeze with 3 way vertical, horizontal and depth adjustment.

• Sold in singles
• Installation: inset
• Opening angle: 180°
• Hinge length: 70mm
• Maximum door width: 600mm
• Maximum door height: 1200mm
• Minimum door thickness: 19mm
• Maximum load capacity:
  • 2 hinges: 9kg
  • 3 hinges: 12kg

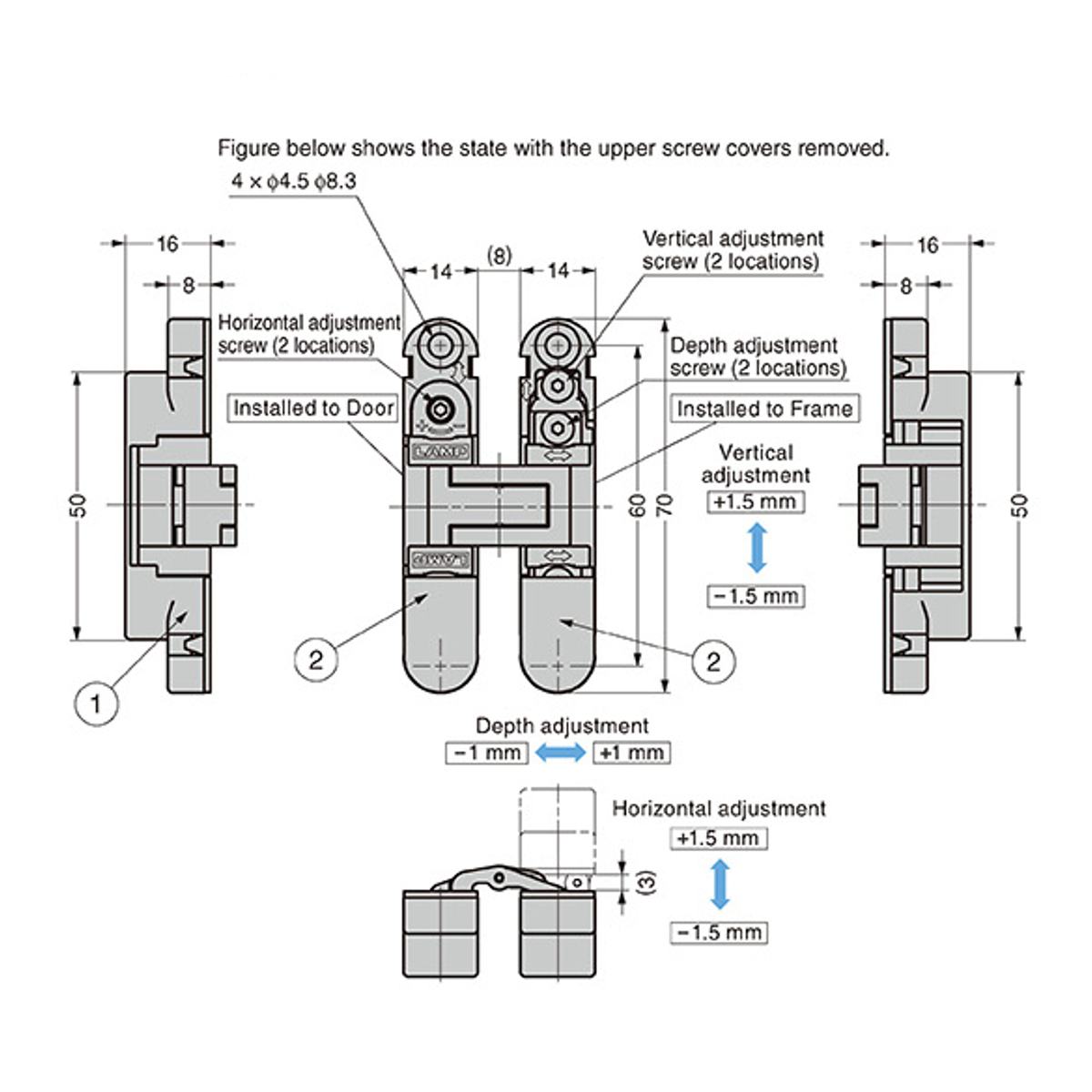

• 3-way adjustment:
  • Depth
  • Vertical
  • Horizontal
