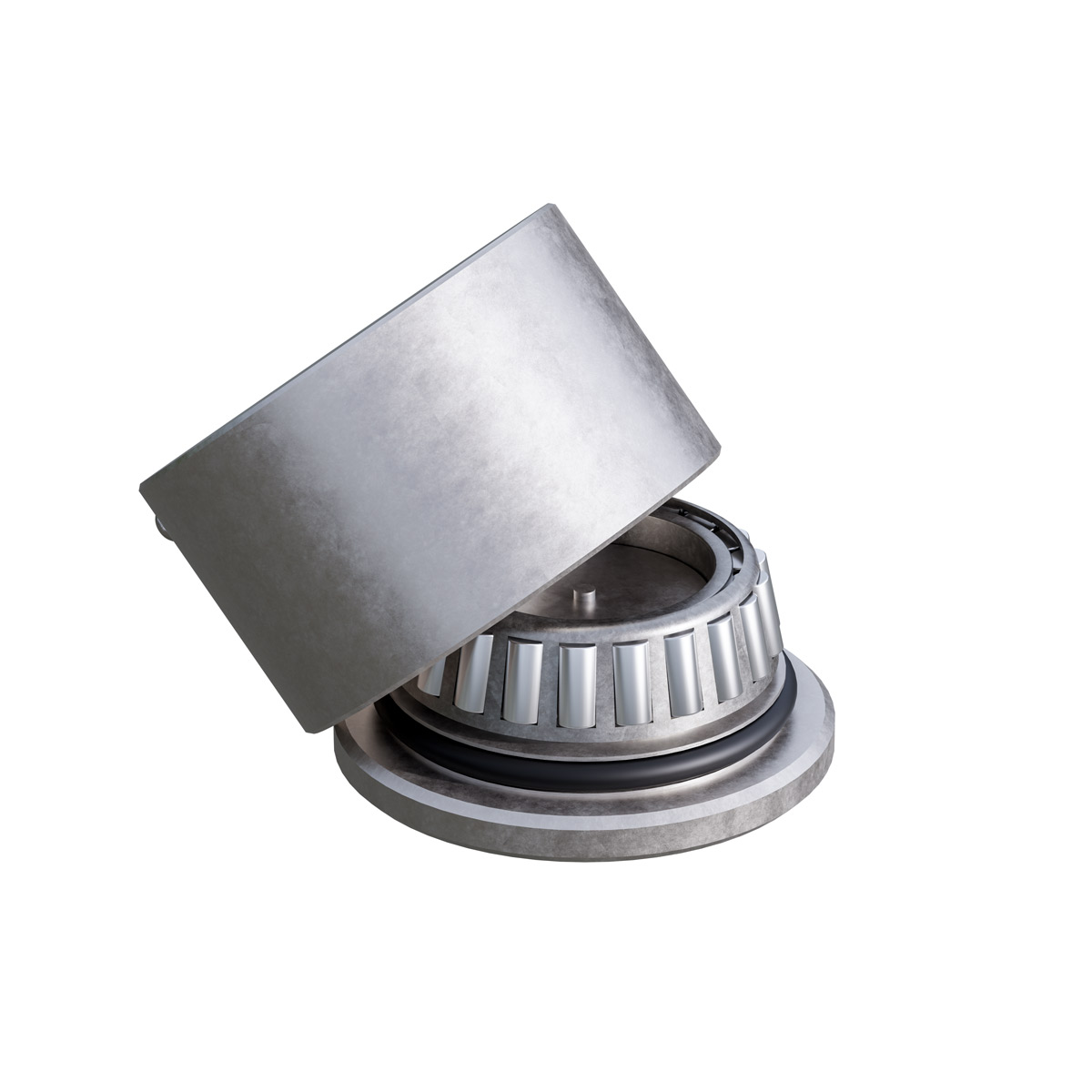

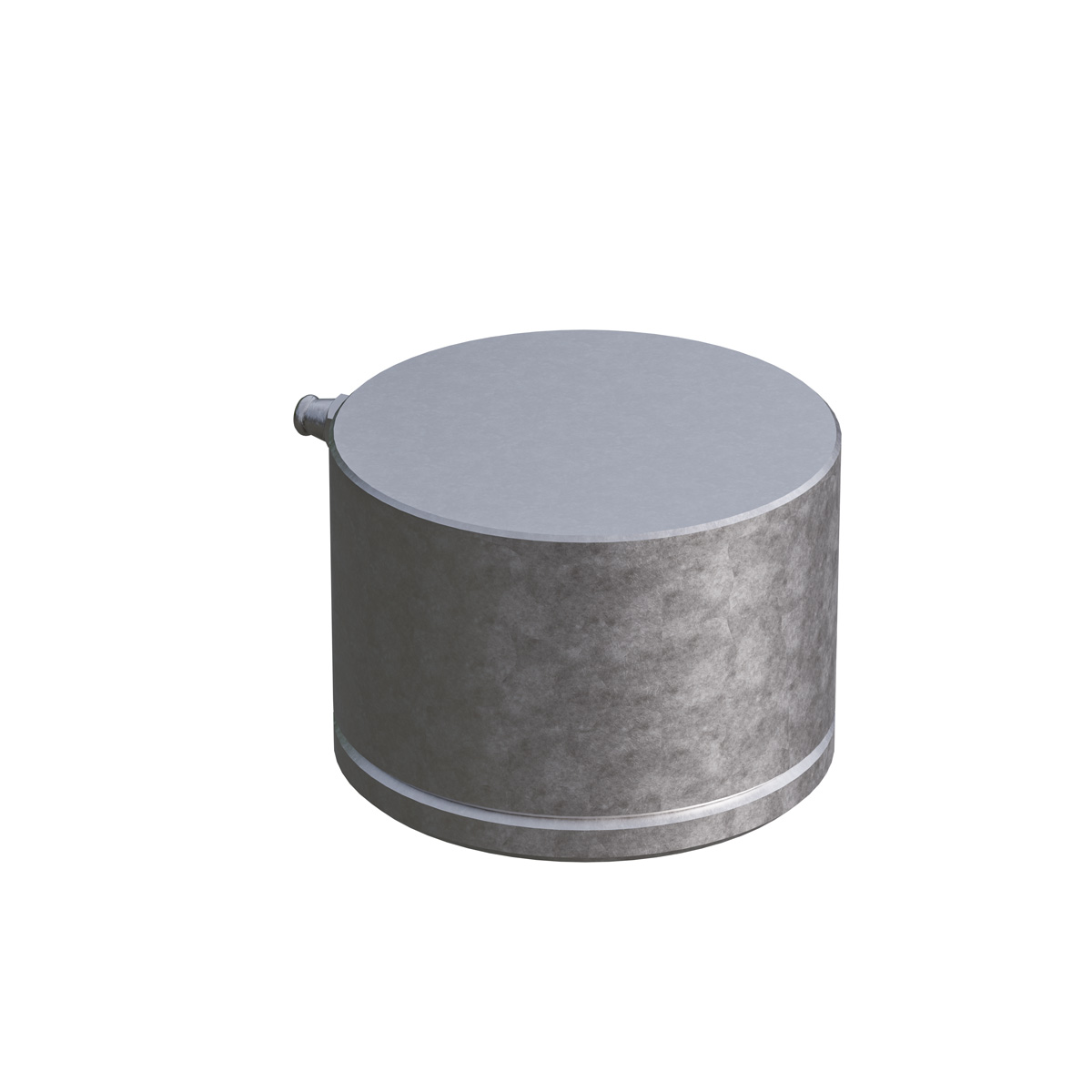

Heavy-duty side-mounted 40mm pivot hinge with bearing manufactured from high quality galvanised steel or stainless steel. Perfect for welding to swing gates and doors.
- Choice of top or bottom pivot hinge
- 40mm bearing
- Maximum weight capacity:
- Bottom pivot: 1500kg
- Top pivot: 375kg
- Perfect for welding to steel gates and doors
- Available in galvanised or stainless steel
- Supplied with sealing o-ring to protect the bearing from debris
- Weight:
- Bottom pivot: 0.55kg
- Top pivot: 1.6kg
Please note that:
- The top pivot can not be supported just at the top, this system is designed for the weight to be at the bottom. The top pivot is only a guide.
Version:
Bottom Pivot - Galvanised - (1500kg)
