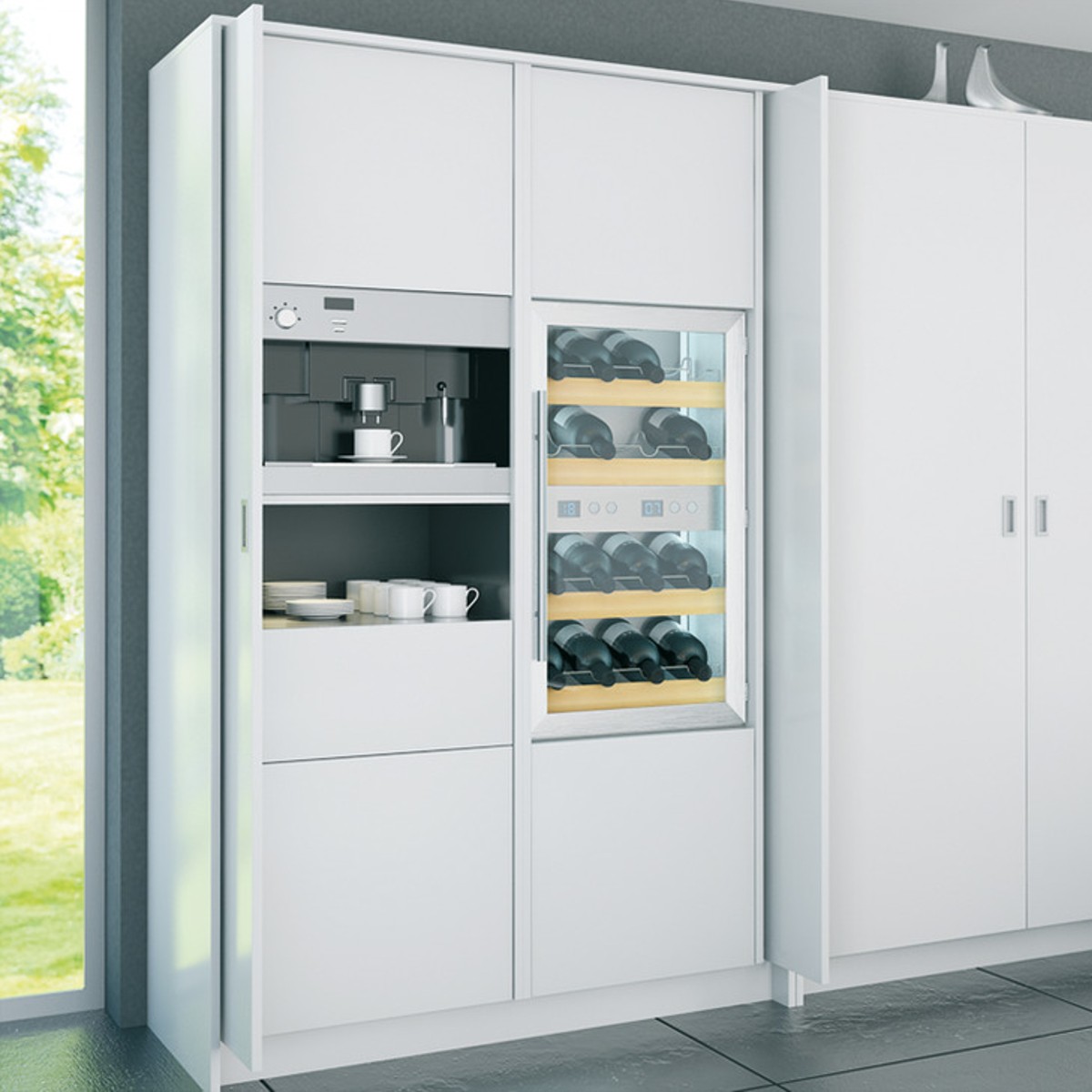

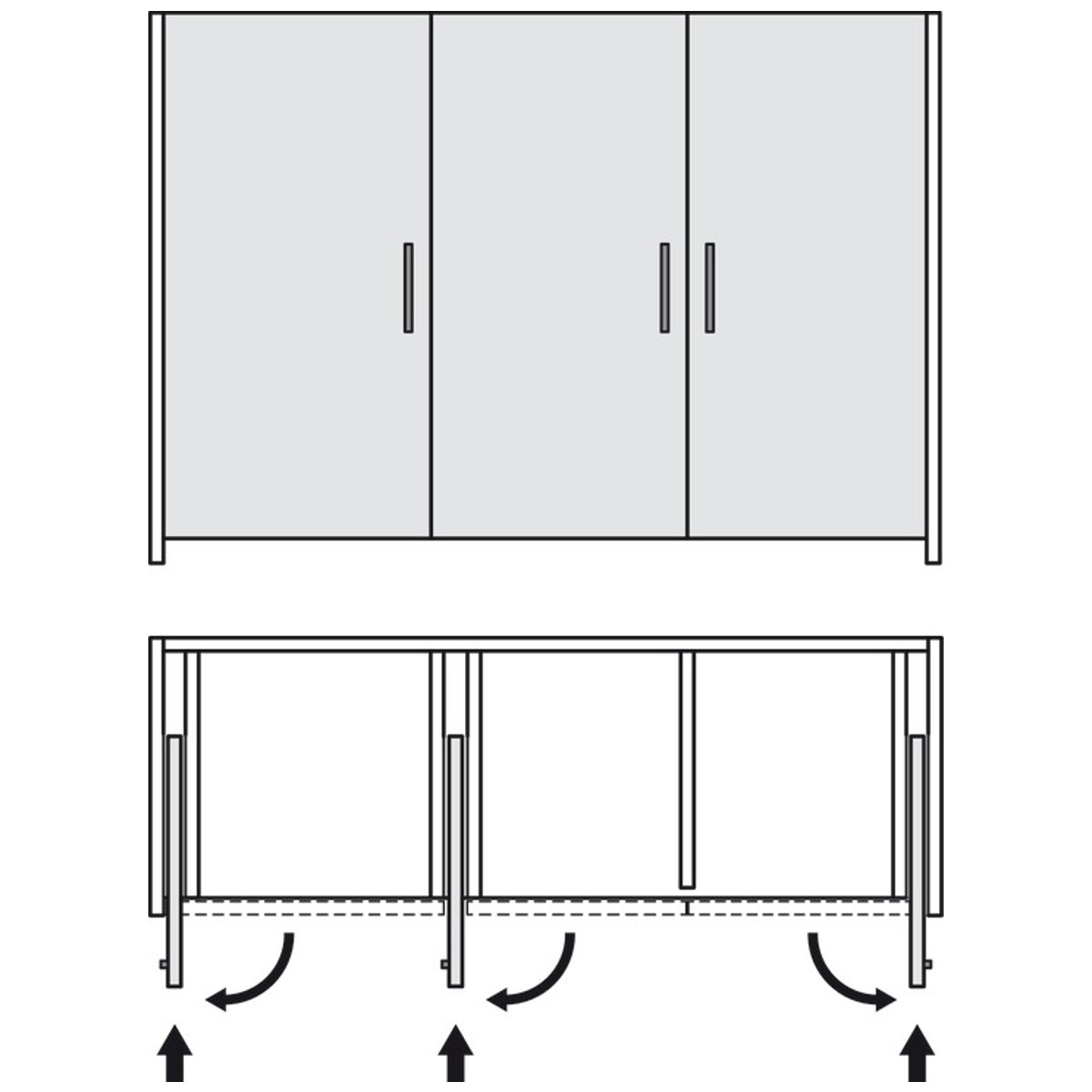

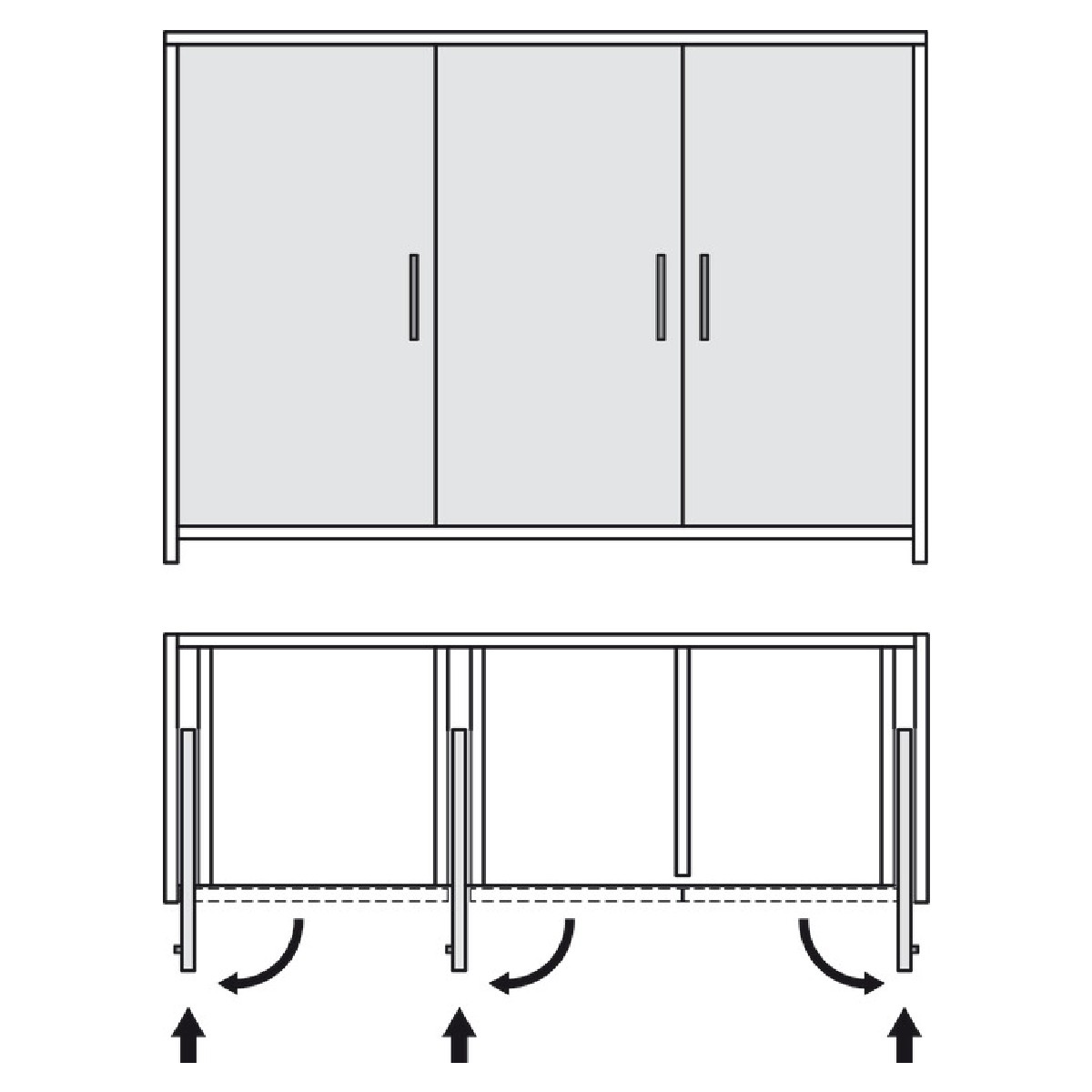

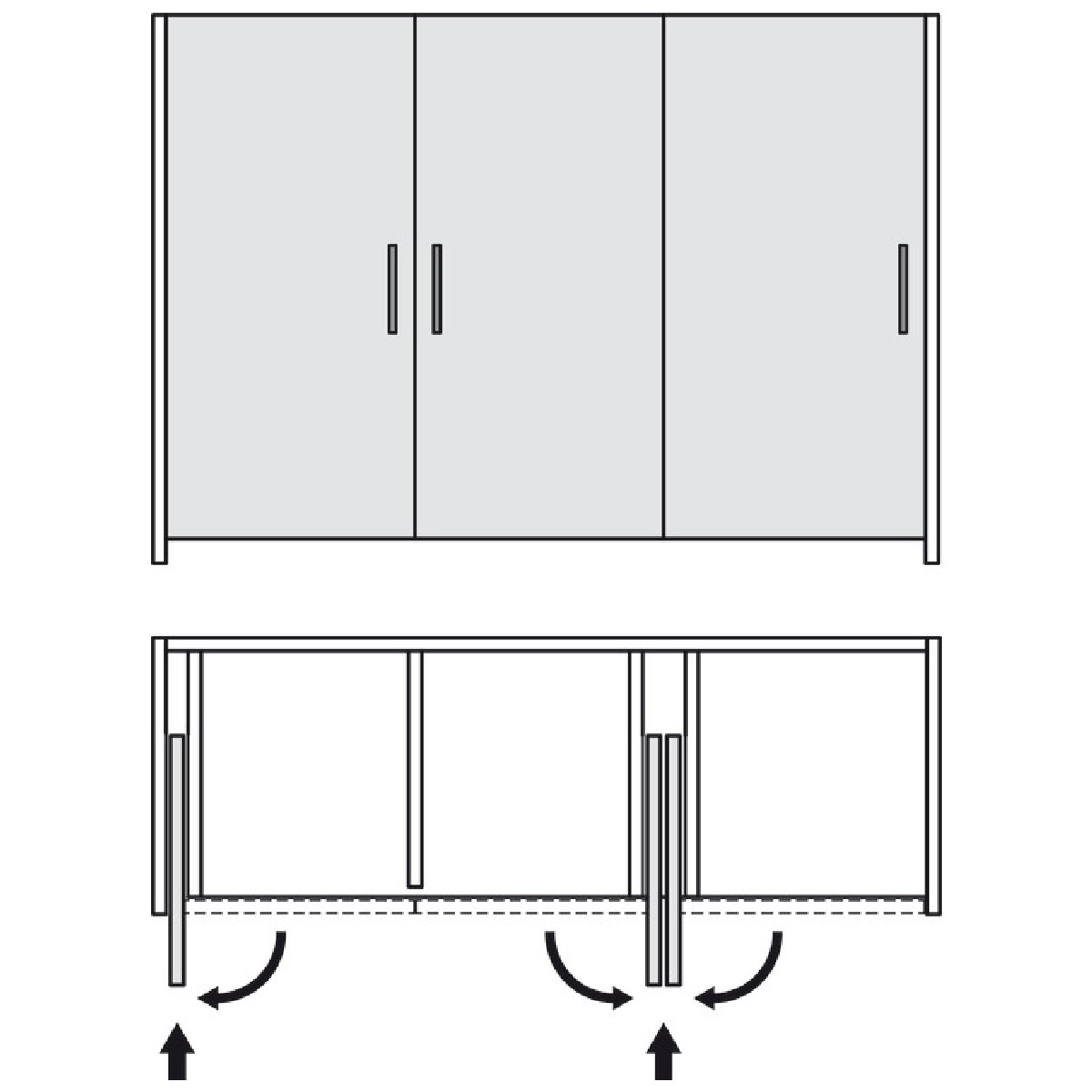

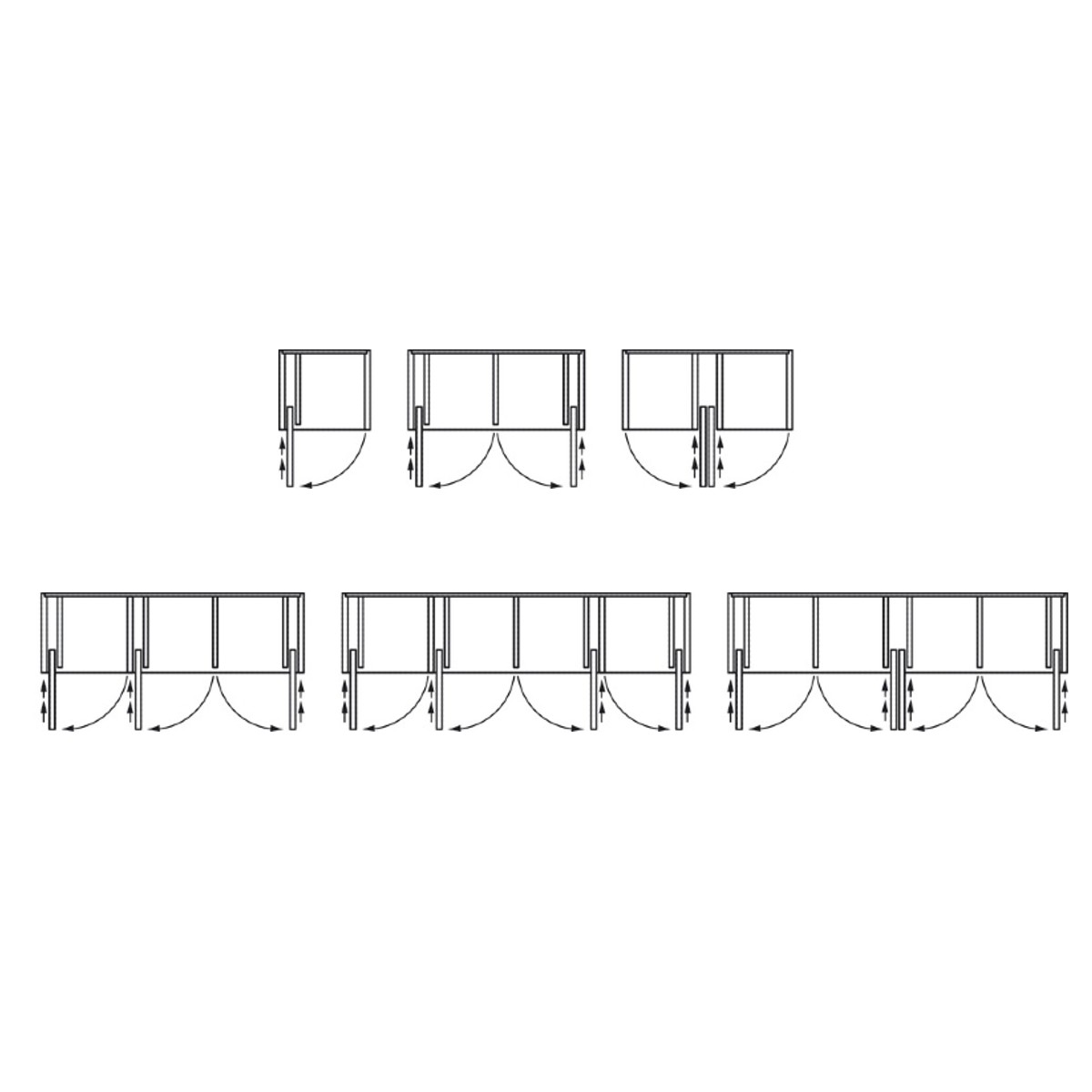

The Slido f-park72 50a is a unique soft close pivot system designed for single-leaf leaf doors that open and pivot into a pocket.
- Number of rollers: 2
- Universal (left or right)
- Ball bearing guided runners
- Material/finish rollers: plastic
- Hinges with an integrated soft closing mechanism
- Dimensions:
- For door width: 200–650mm

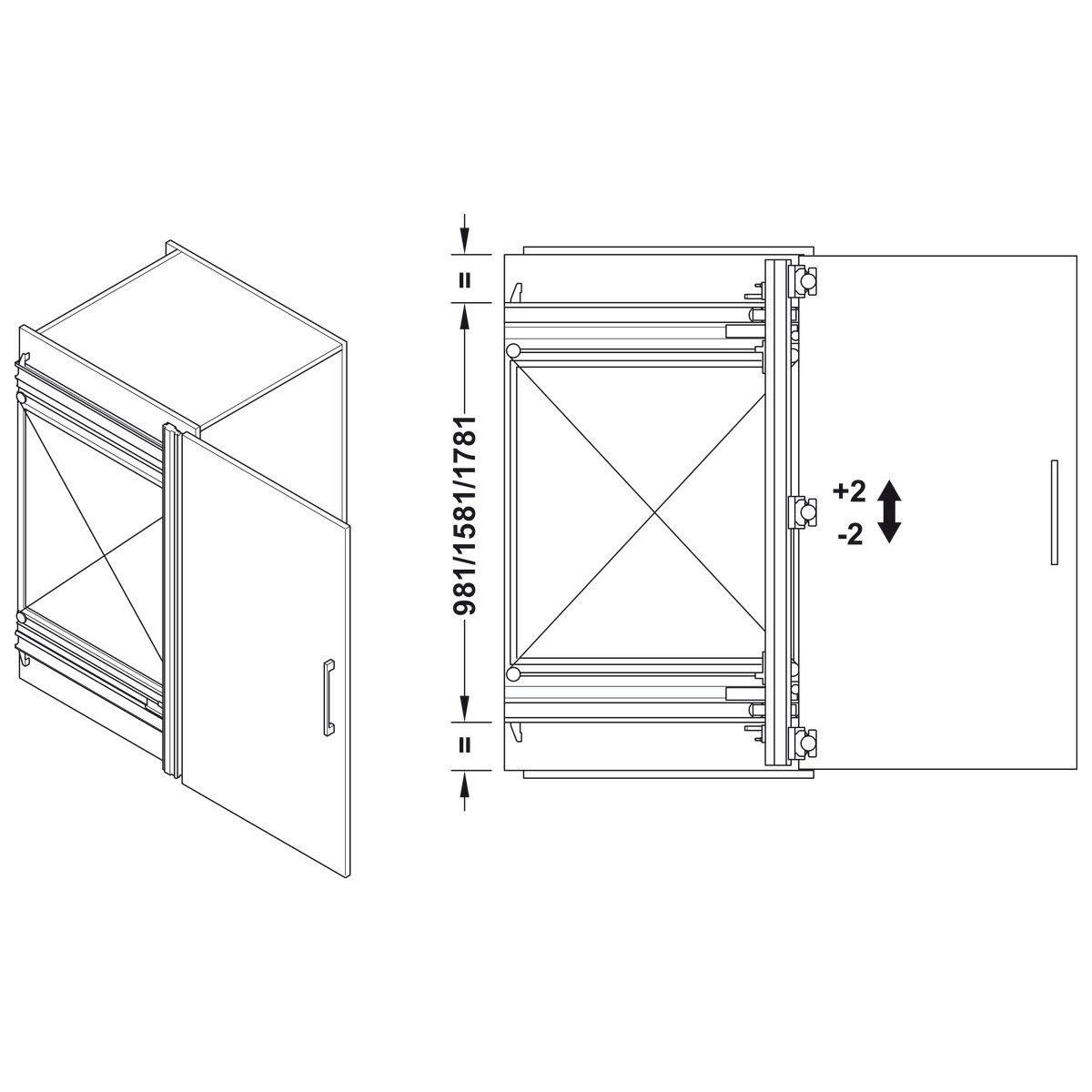

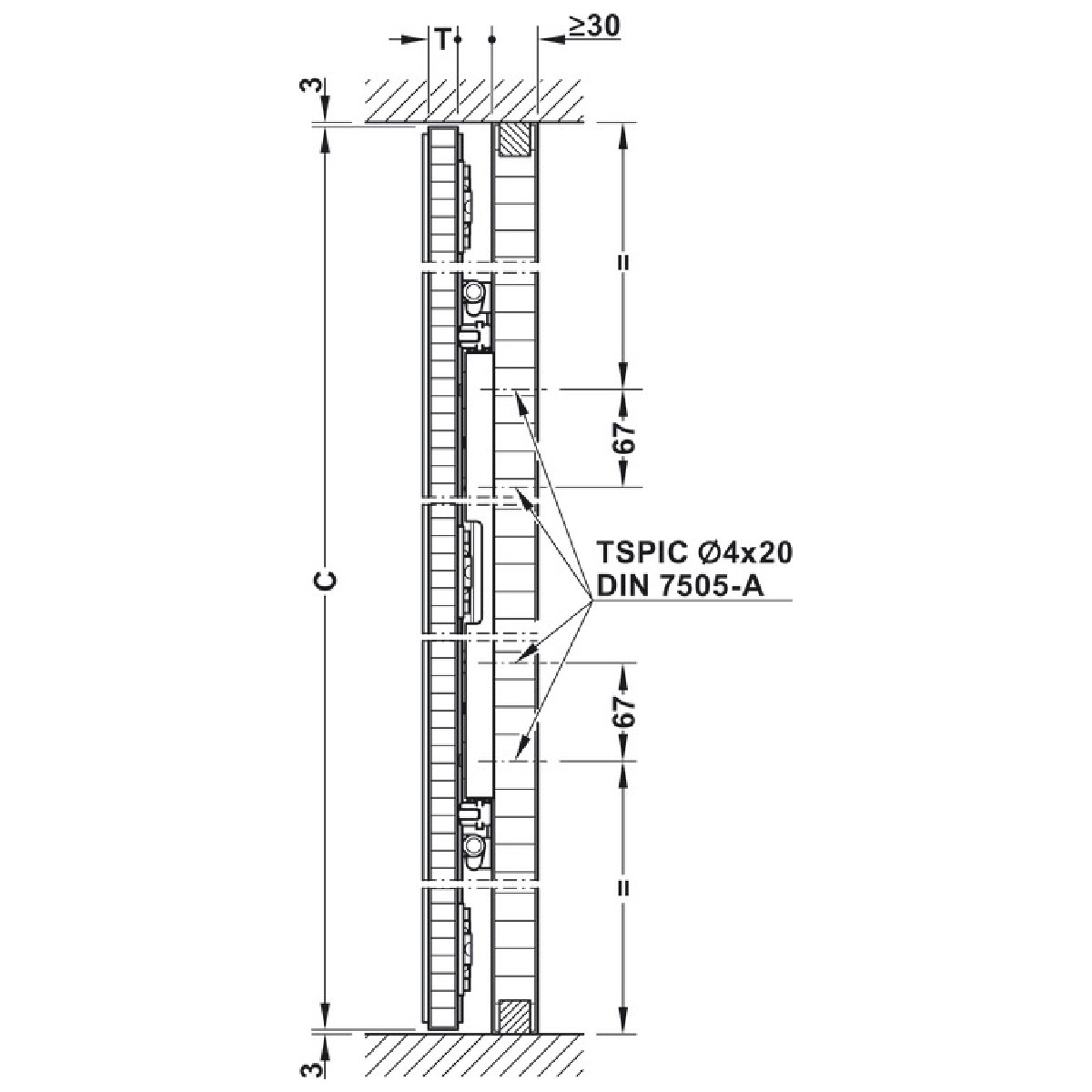

- For door height: 1200–1400mm/2200-2700mm

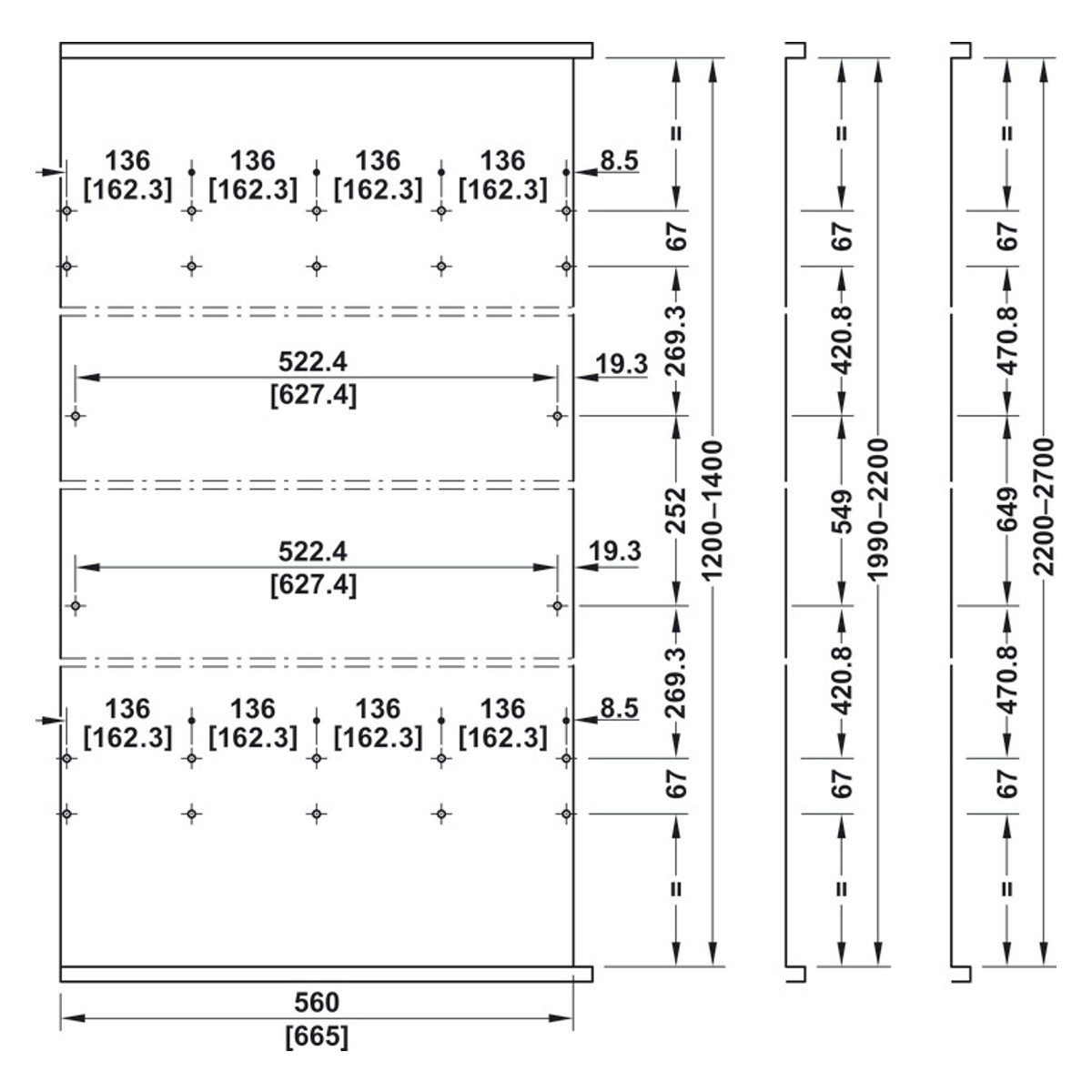

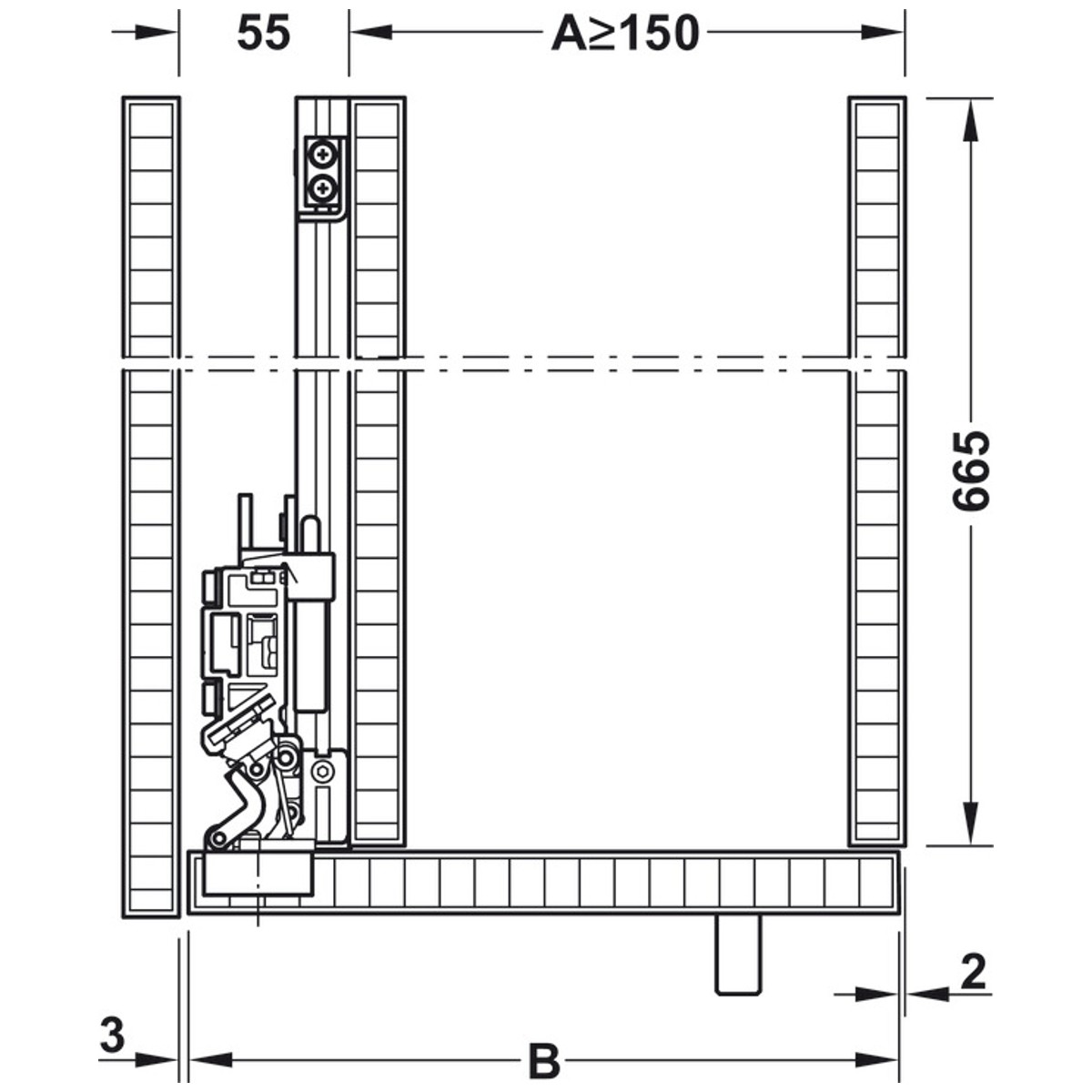

- For cabinet depth: 560/665mm (+door thickness)

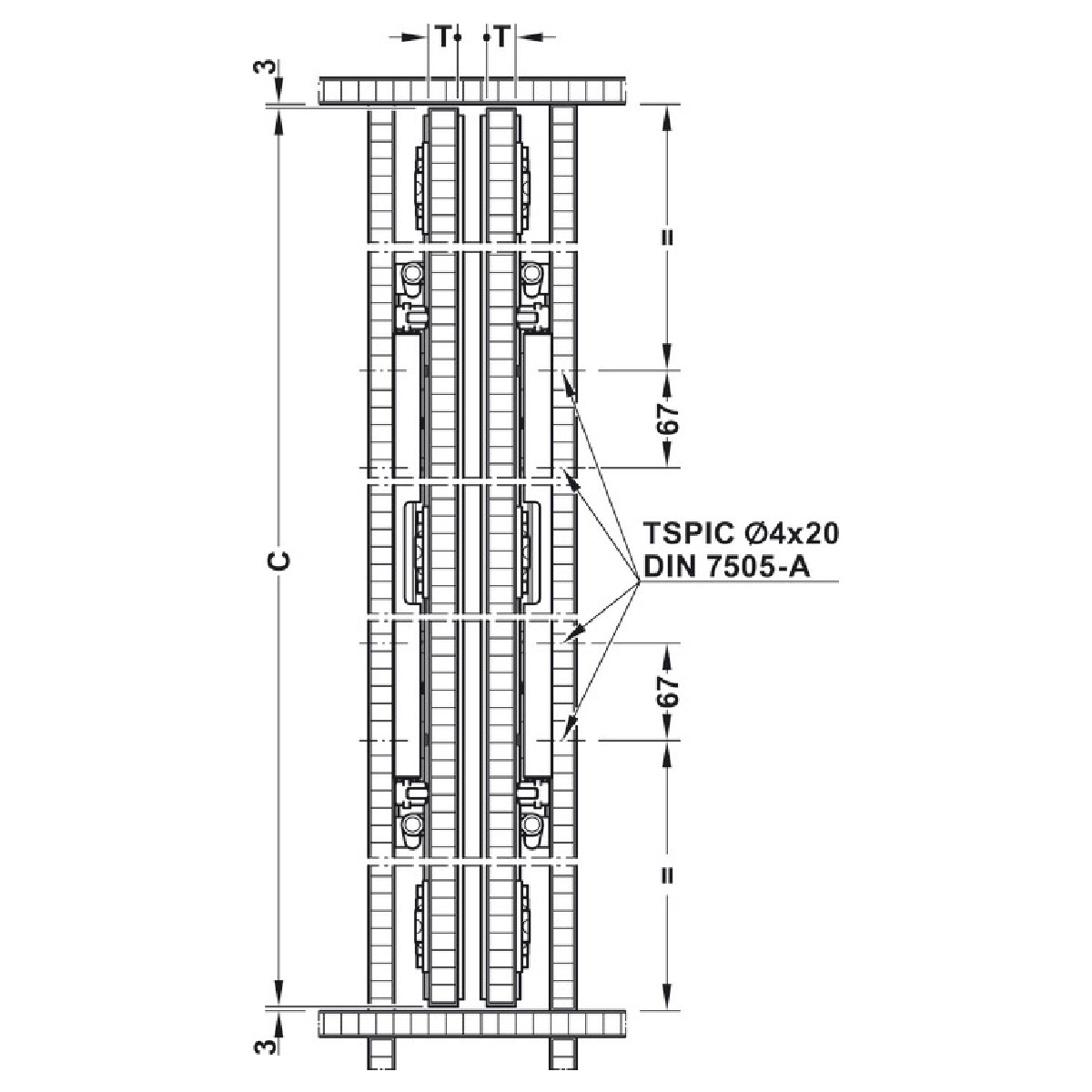

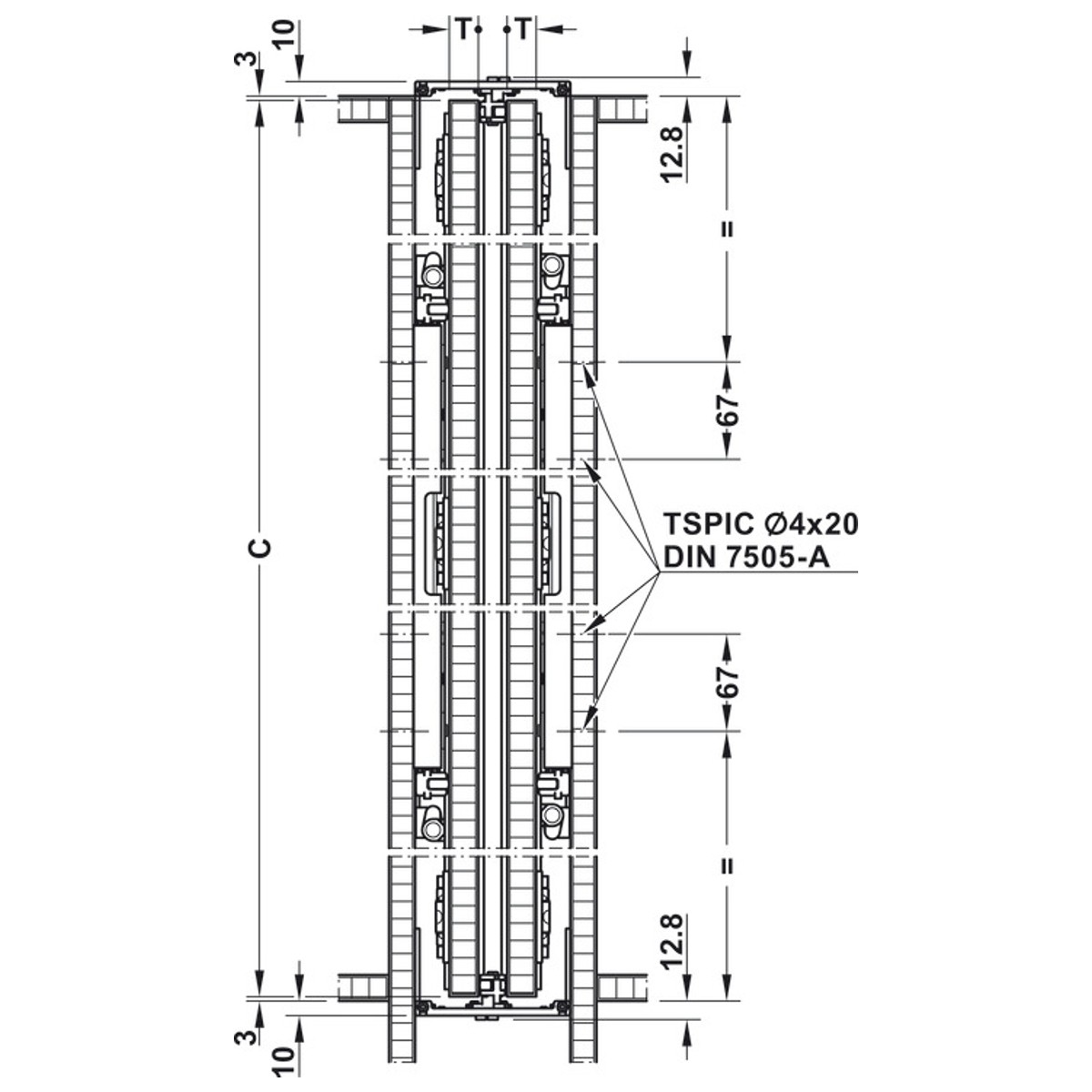

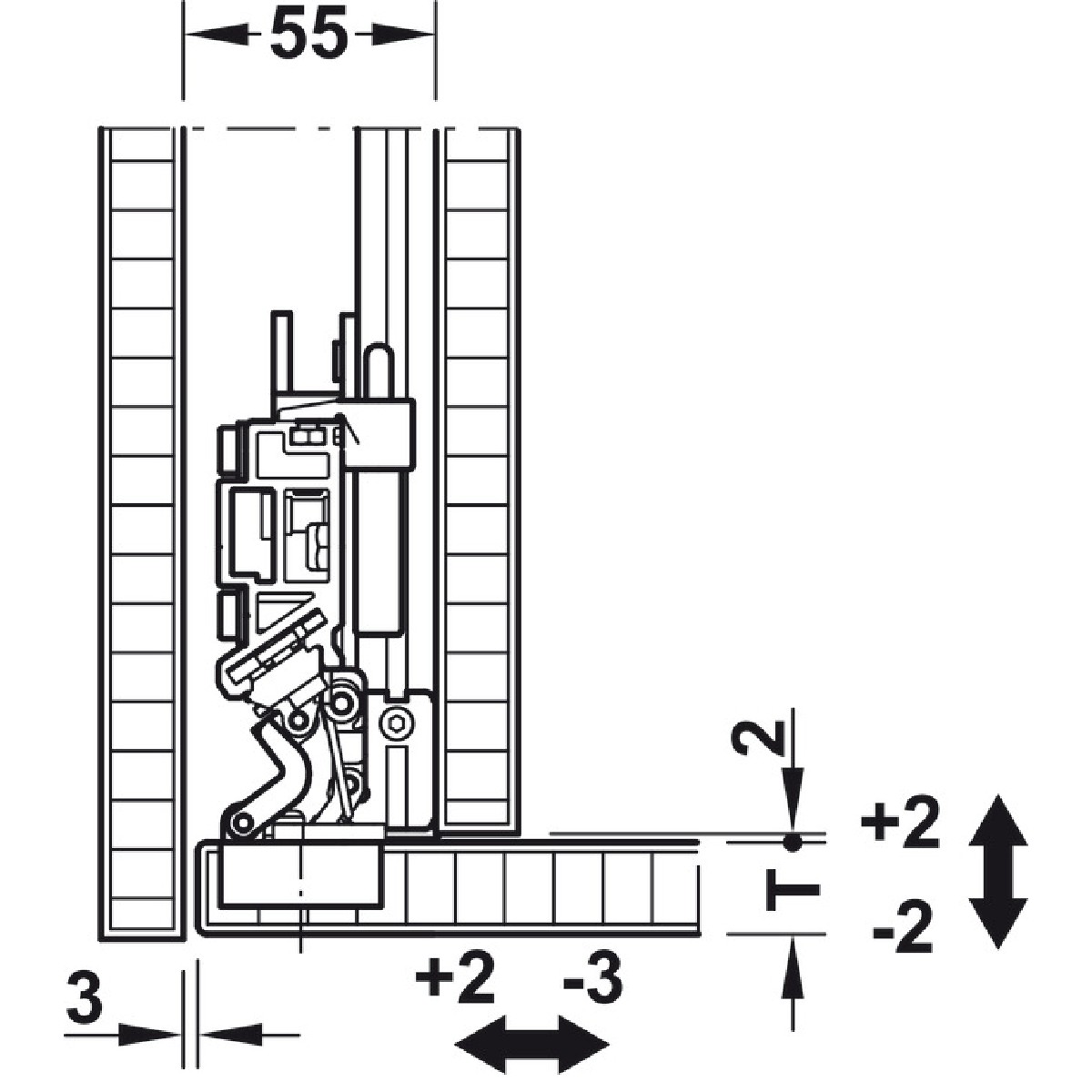

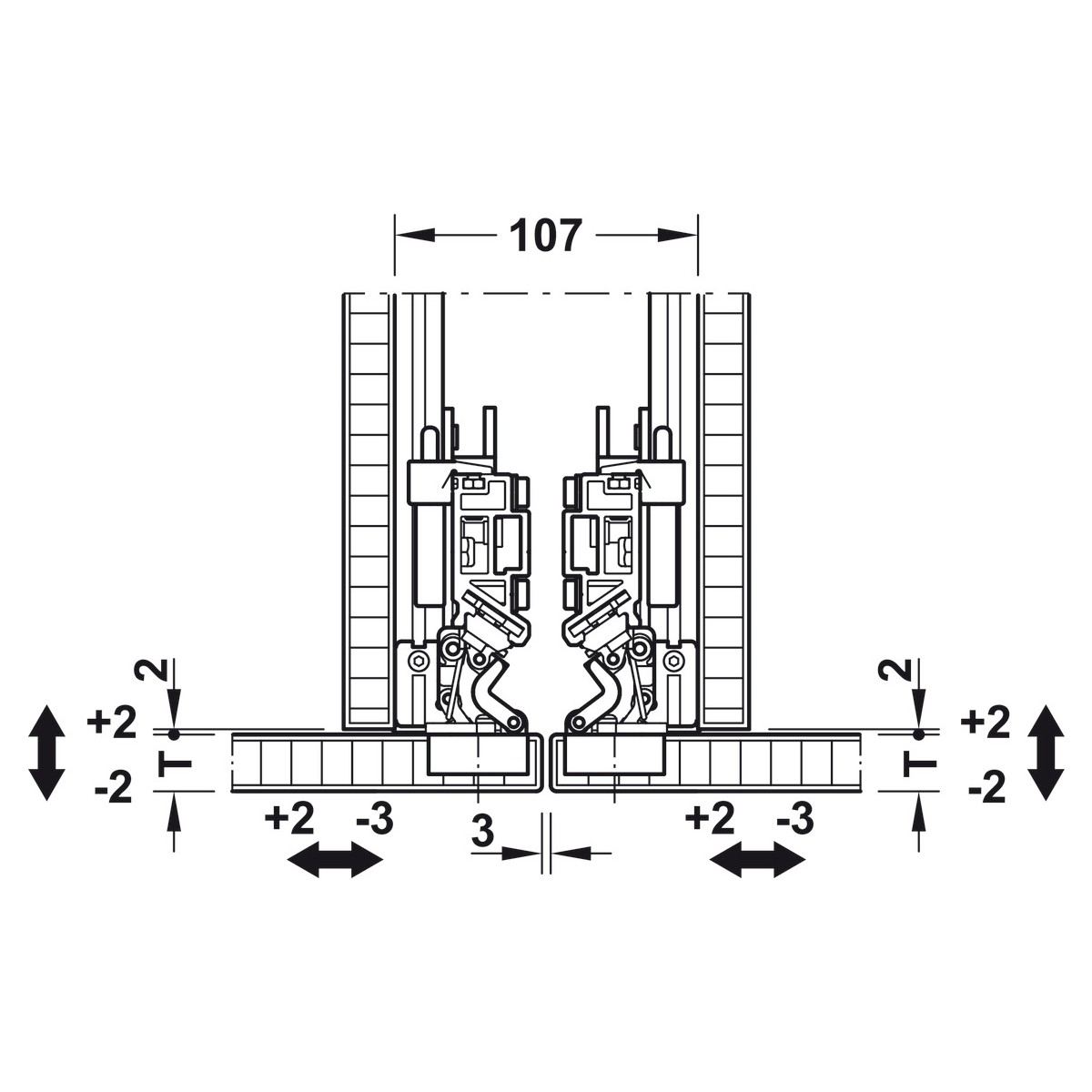

- For door thickness: 18–30mm (18-25mm for double doors)

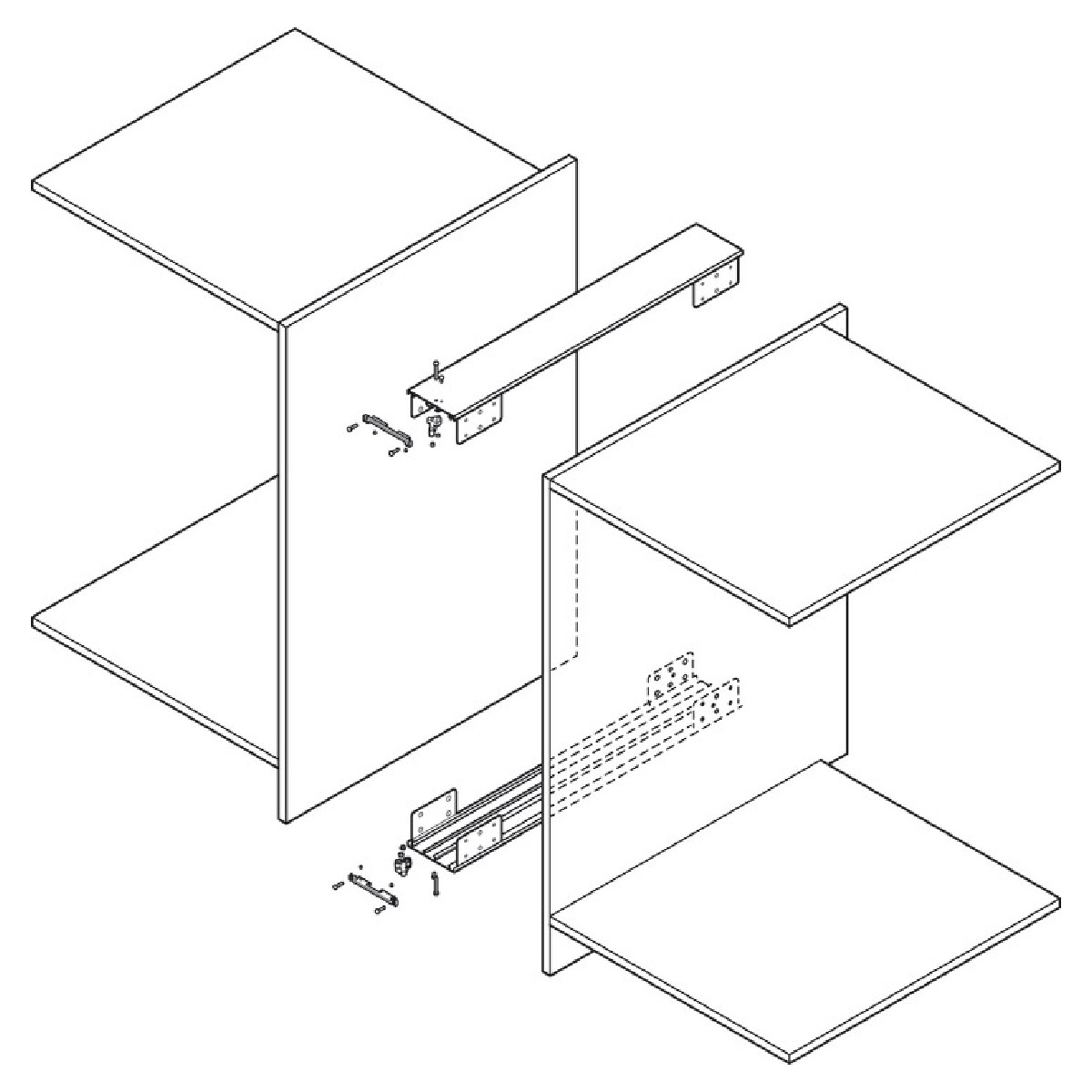

Set for 1 door includes

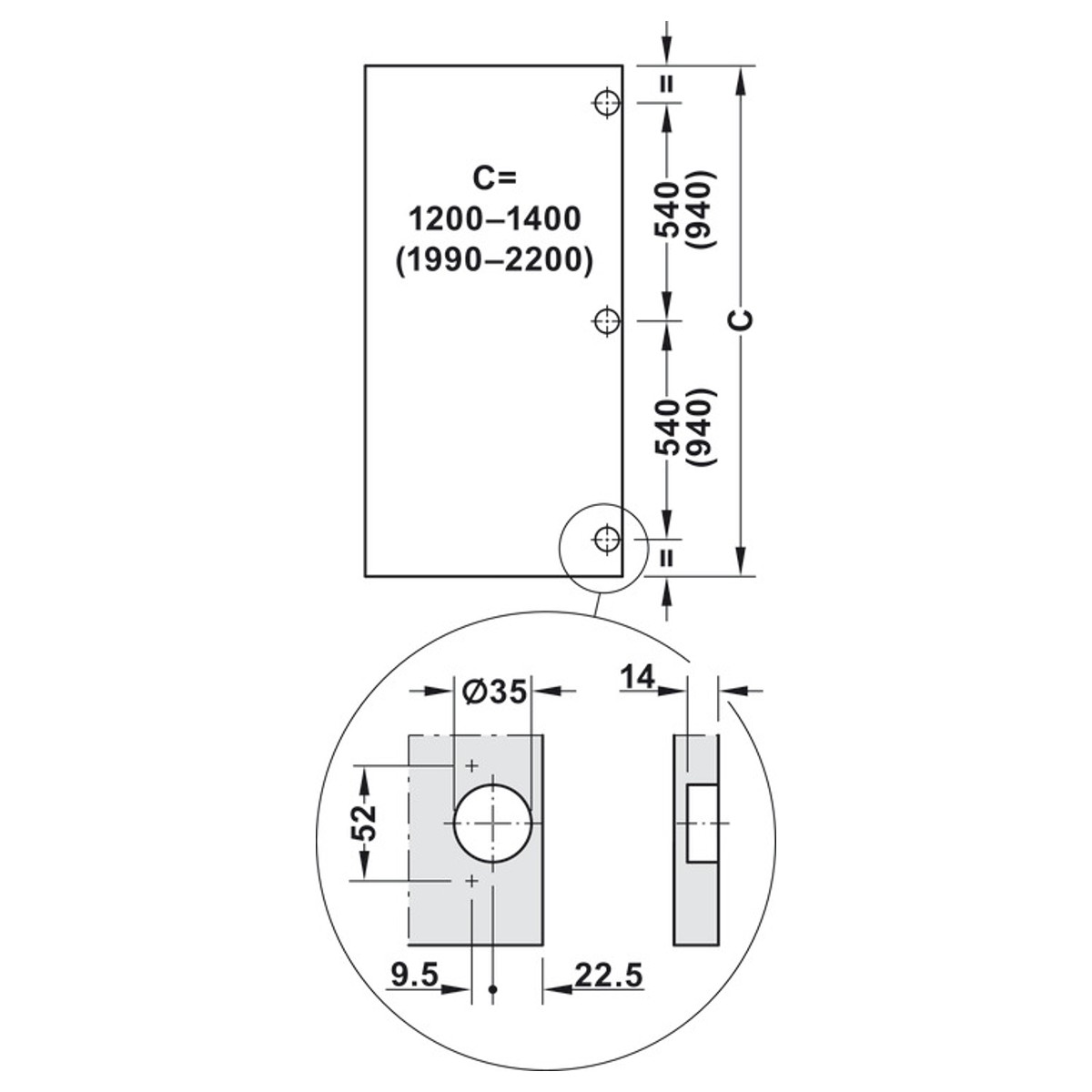

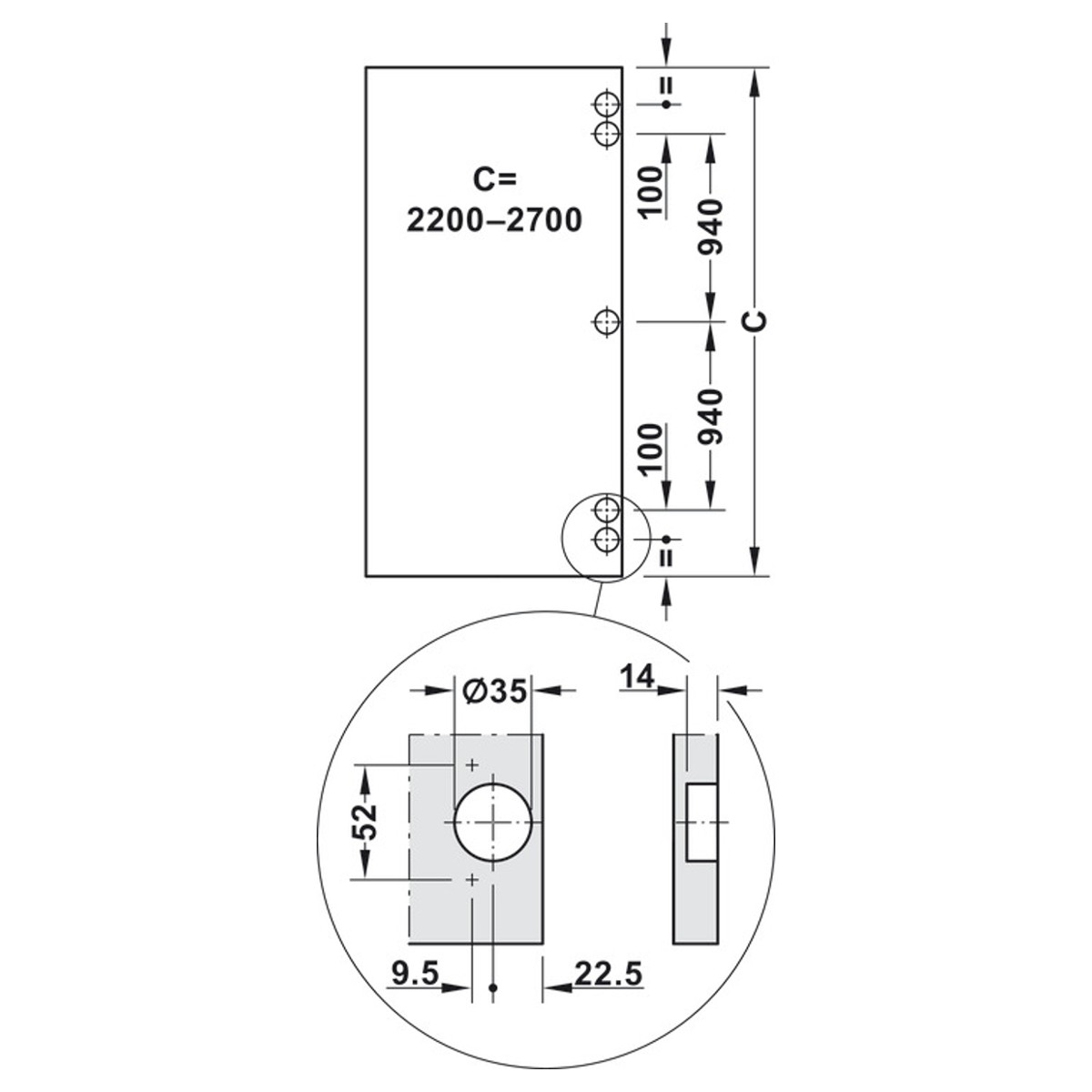

- 1 x set of hinges
- 1 x sliding mechanism

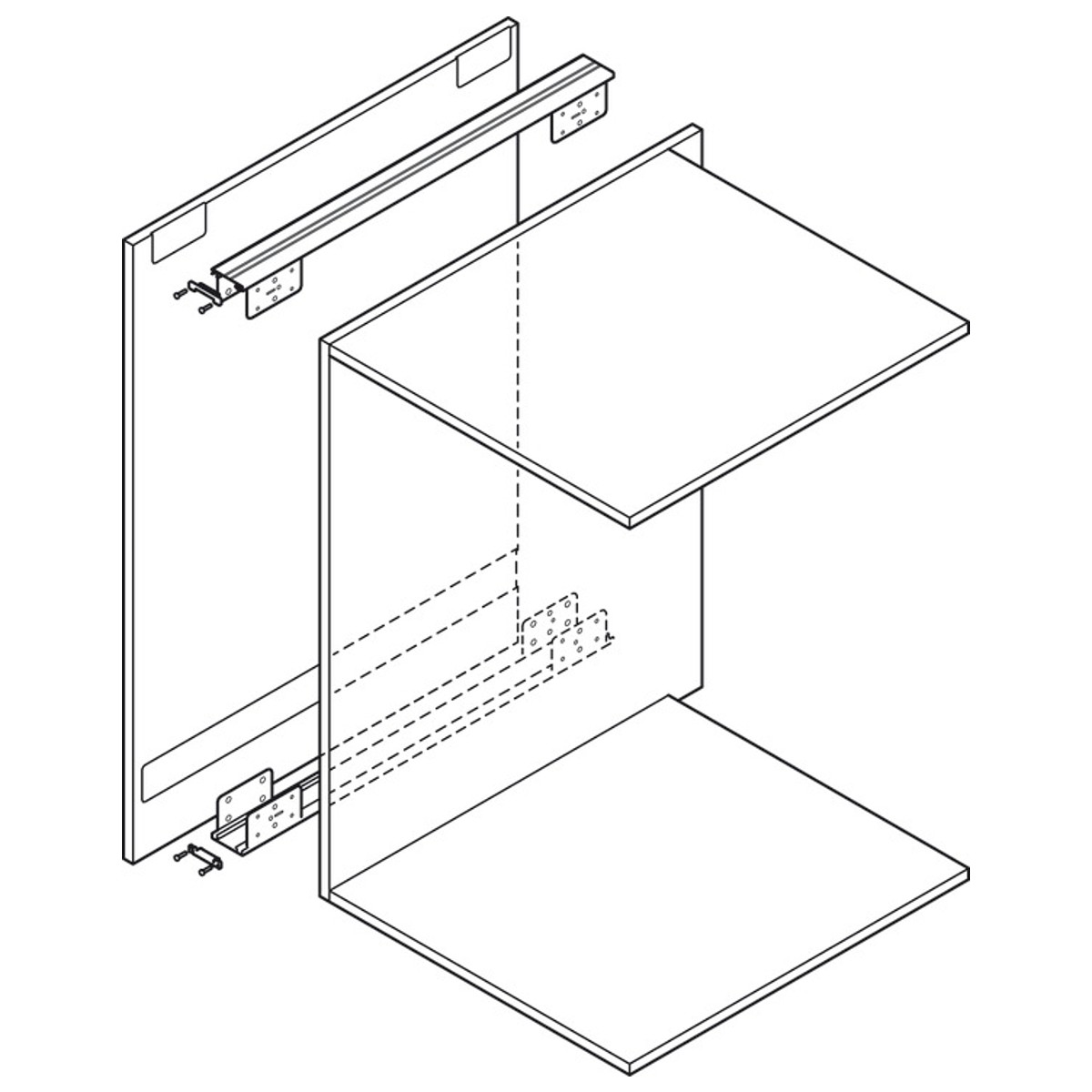

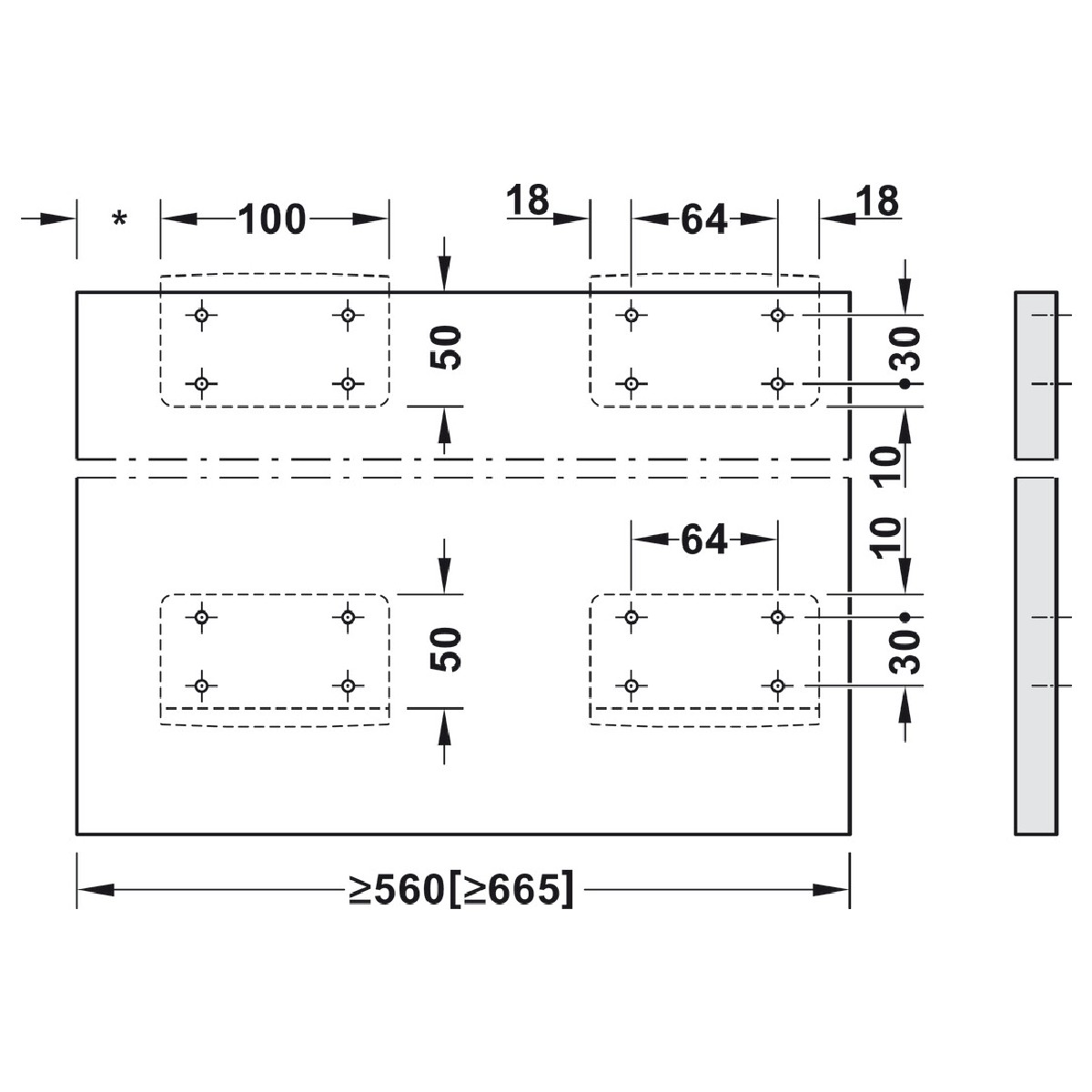

- 1 x pivot assembly with backing panel kit
Advisories

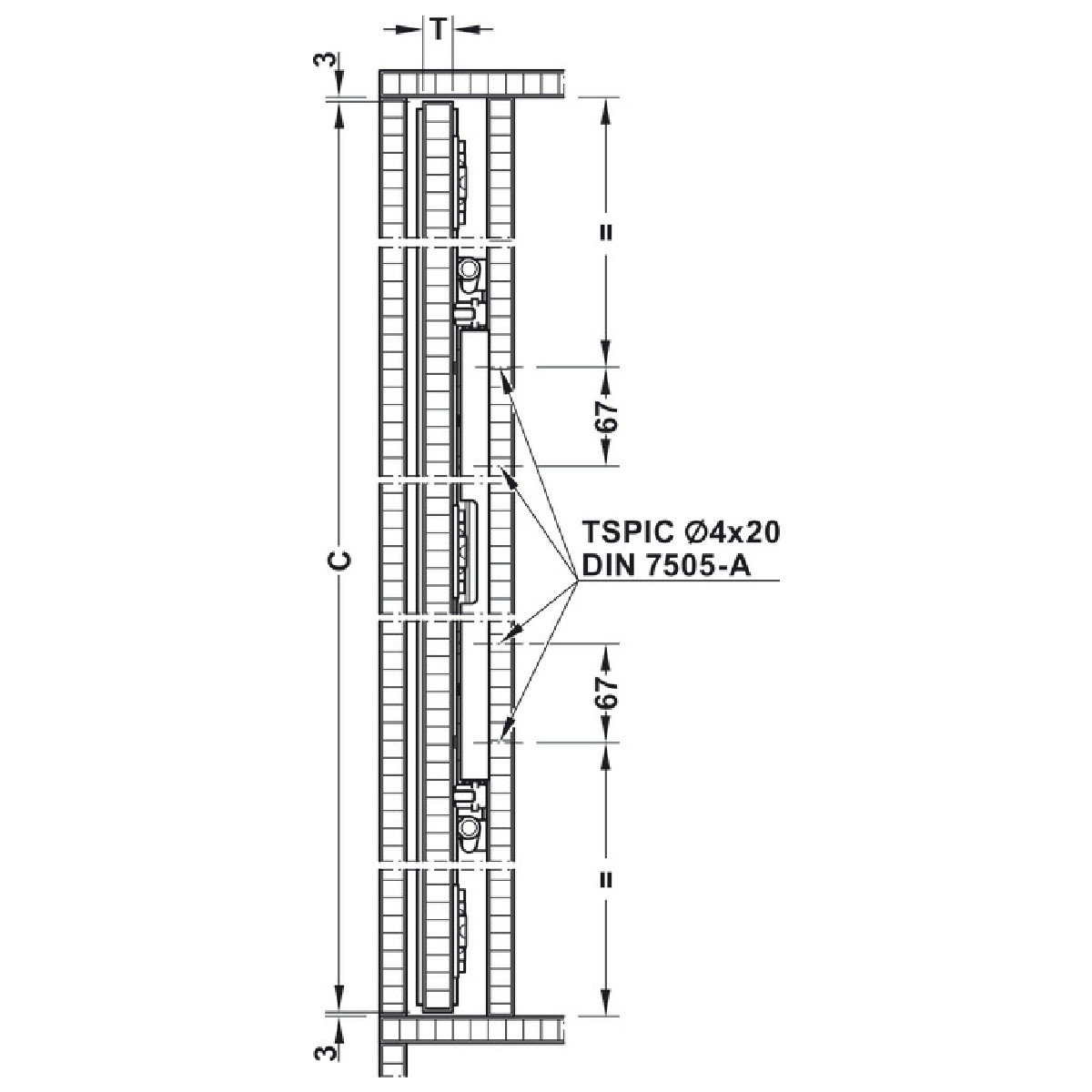

- The total door leaf plus hinge should be fixed to the aluminium bar of the system

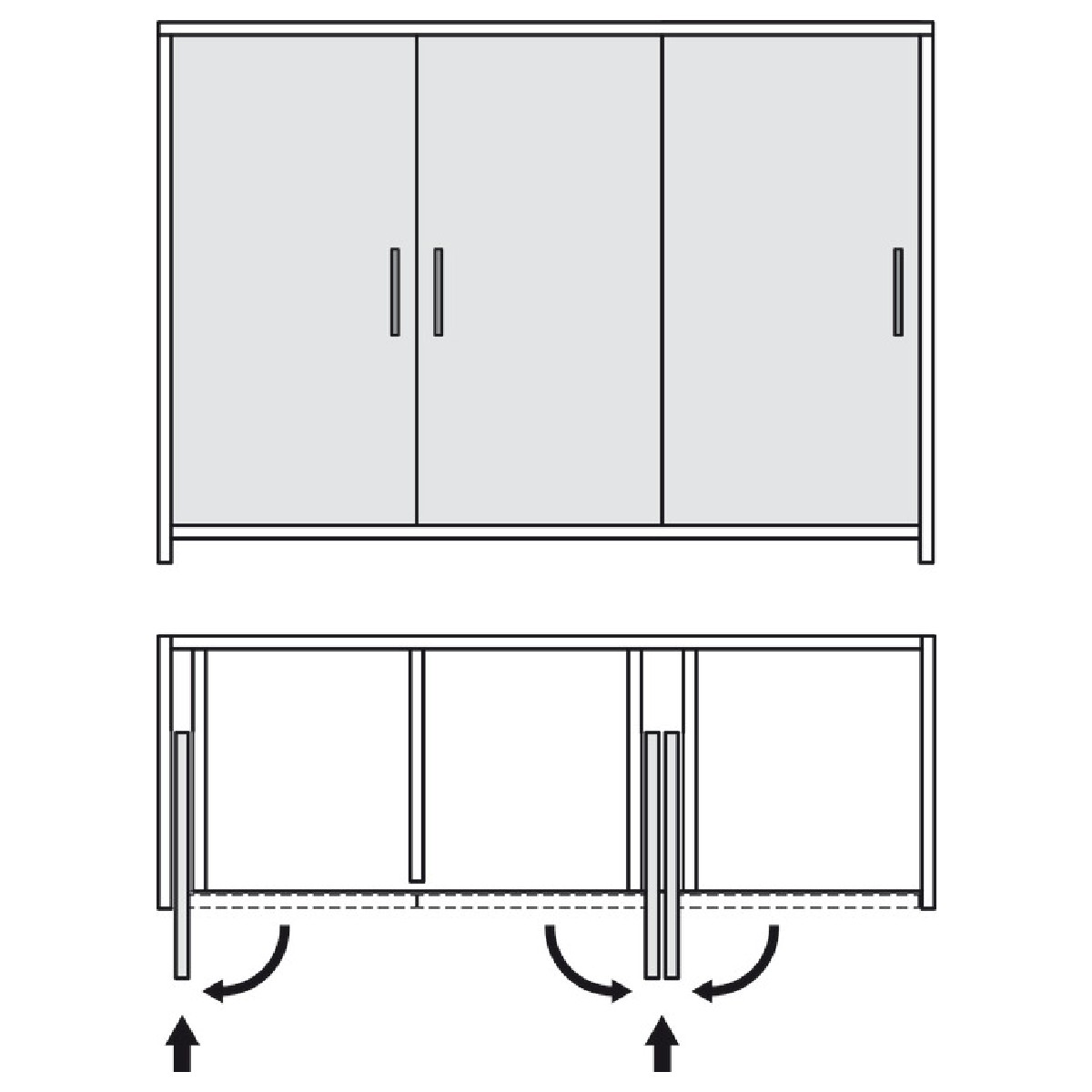

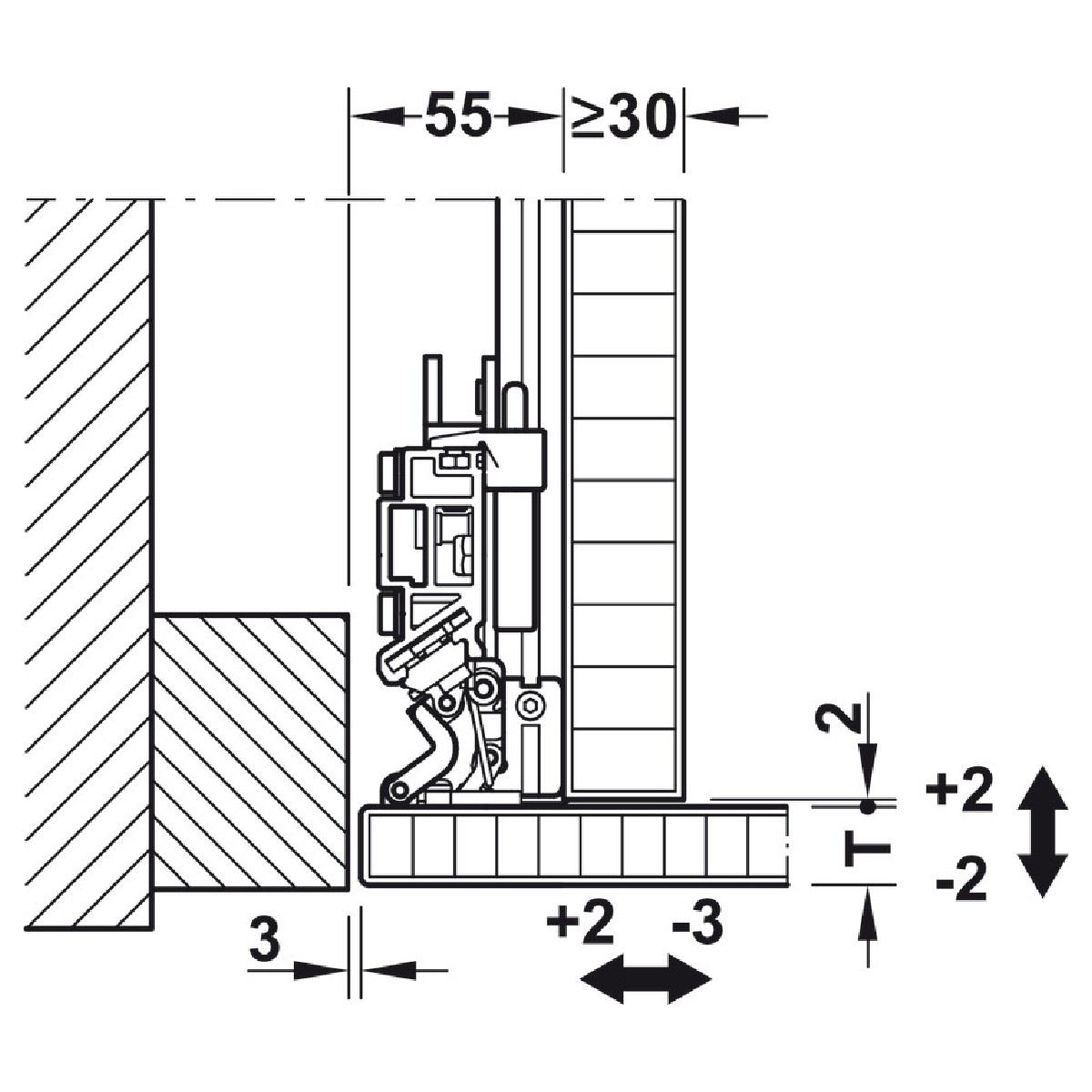

- With infront constructions, the side panel must be removable for mounting the fittings
- The mechanisms are ready for installation, it is not necessary to remove or prepare components

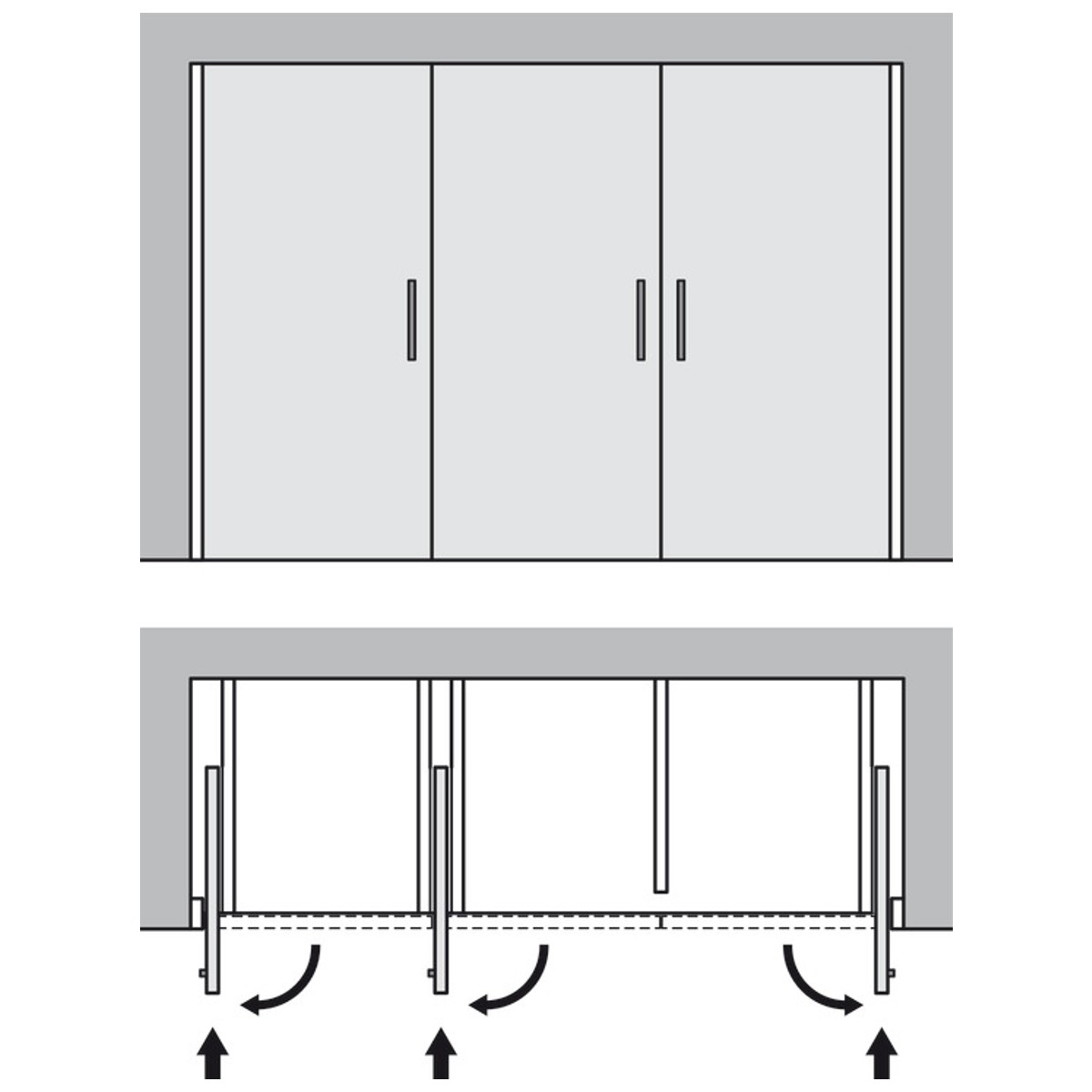

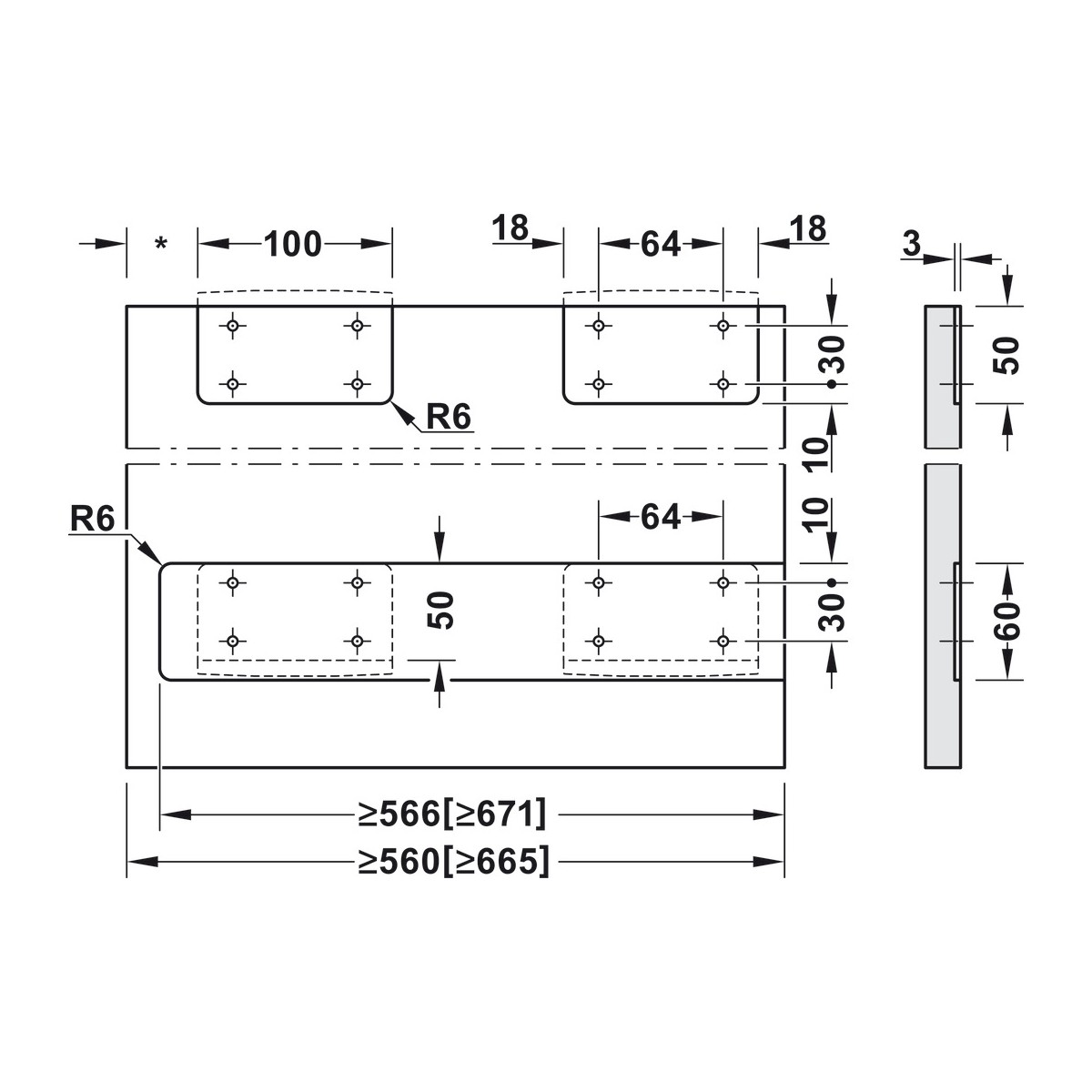

- With recess constructions, the side panel with a thickness of 30mm must be removable for mounting the fittings
Sliding Systems
For Door Height:
1200-1400mm
For Door Weight:
30kg

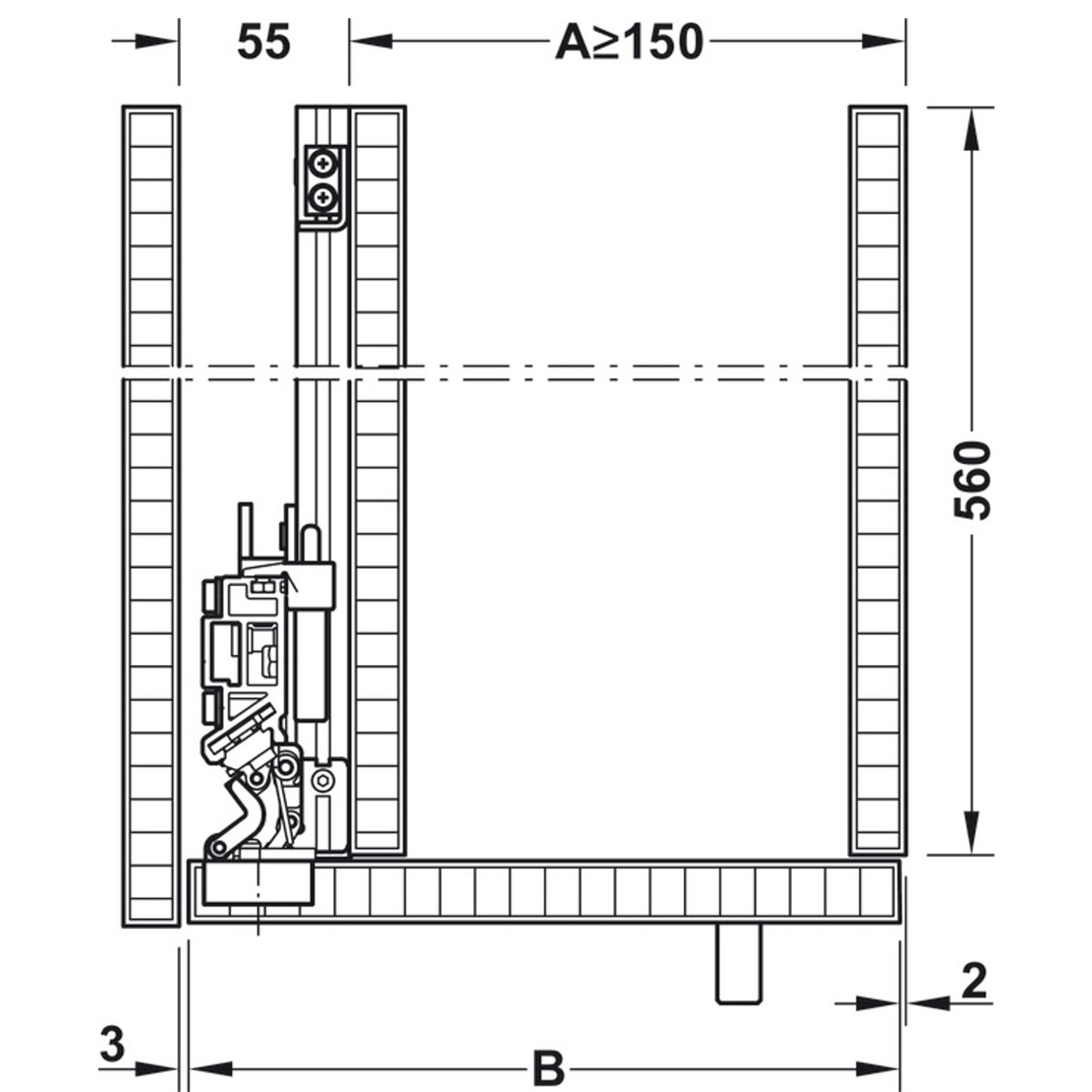

Internal Installation Depth:
560mm
