Pocket Door System - 90mm Frame

4199-001
Price from: £167.94inc VAT
+

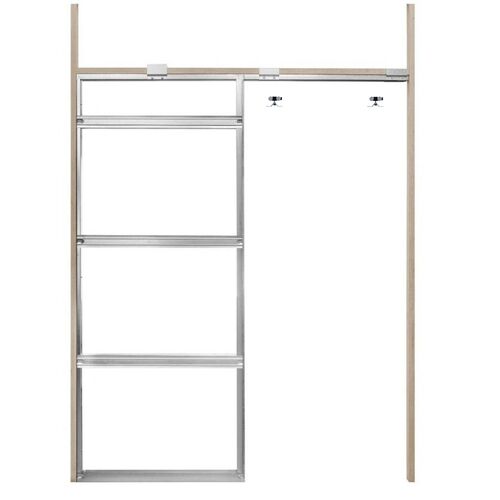

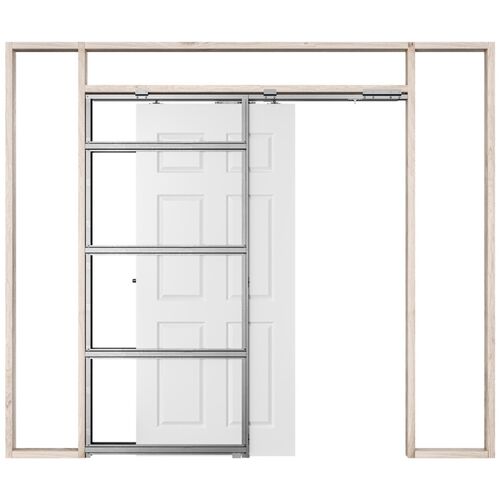

Complete pocket sliding door system with galvanised steel pocket frame, sliding track and running gear. 90mm wide frame specifically made to suit 89mm CLS studwork and 92mm steel stud.

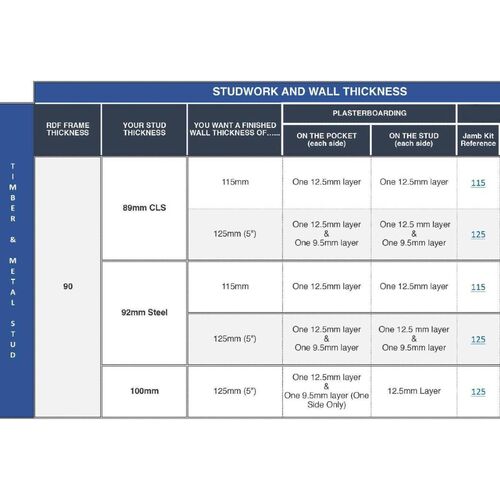

  • To fit 89mm(3.5'') CLS and 90mm steel studwork

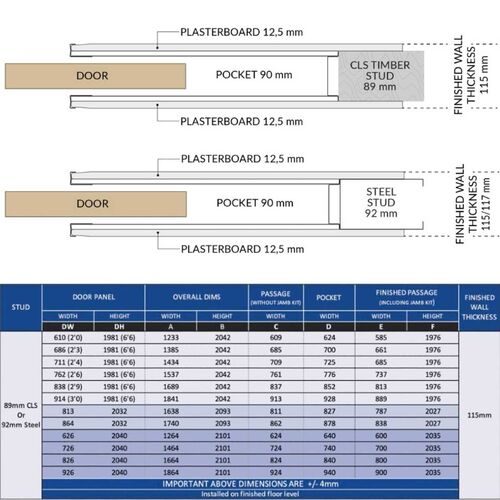

  • Available in various sizes to fit door sizes:
    • 610, 686, 762, 838mm x 1981mm
    • 726, 826, 926mm x 2040mm
  • To fit 35-44mm thick door panels
  • 12 year guarantee
  • Maximum door weight up to 60kg
  • Suitable for double doors - two single kits can be joined together
  • Optional soft close - available in related products below
  • Optional - set of liners and door jamb - please choose the required product option

Kit includes:

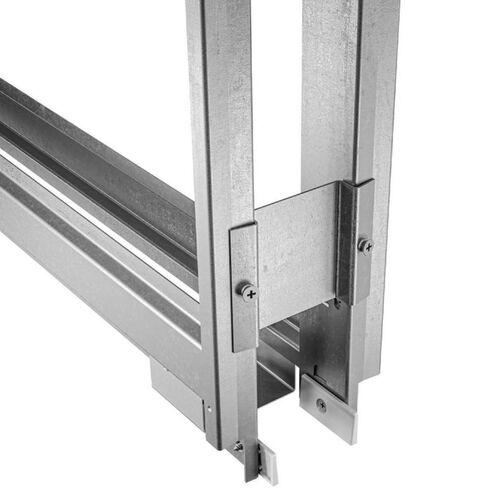

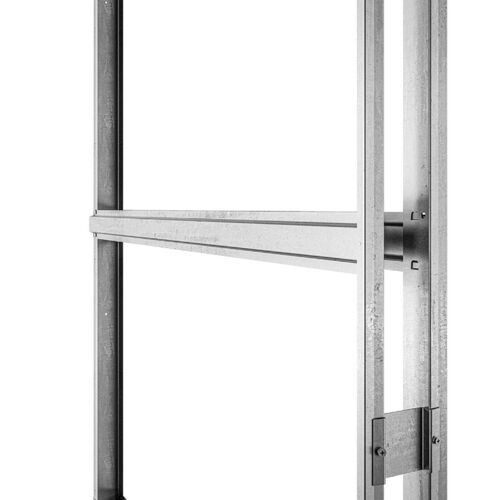

  • Galvanised steel profiles are required to build the pocket
  • Top track with running gear for one door
  • Bottom door guide
  • Bumper

Optional lining and jamb kit:

  • Finishing kit made of MDF
  • Consists of a door jamb and liners to cover the gaps and steelwork
  • Primed in white

Please note that:

  • Door panel is not included
  • This system is not fire rated

Sliding Systems

Size:
610 x 1981mm
Lining And Jamb Kit:
No Jambs
These are so easy to install and if prepared right can be installed very quick
