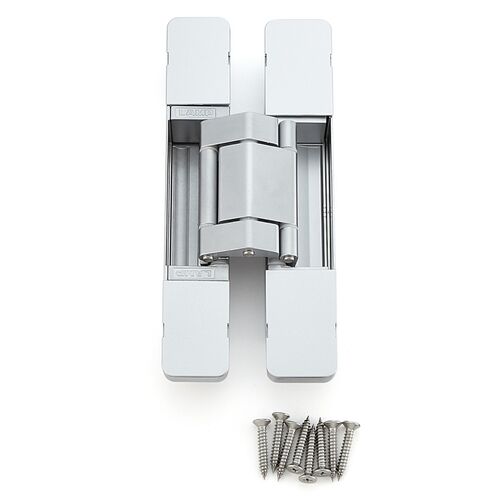

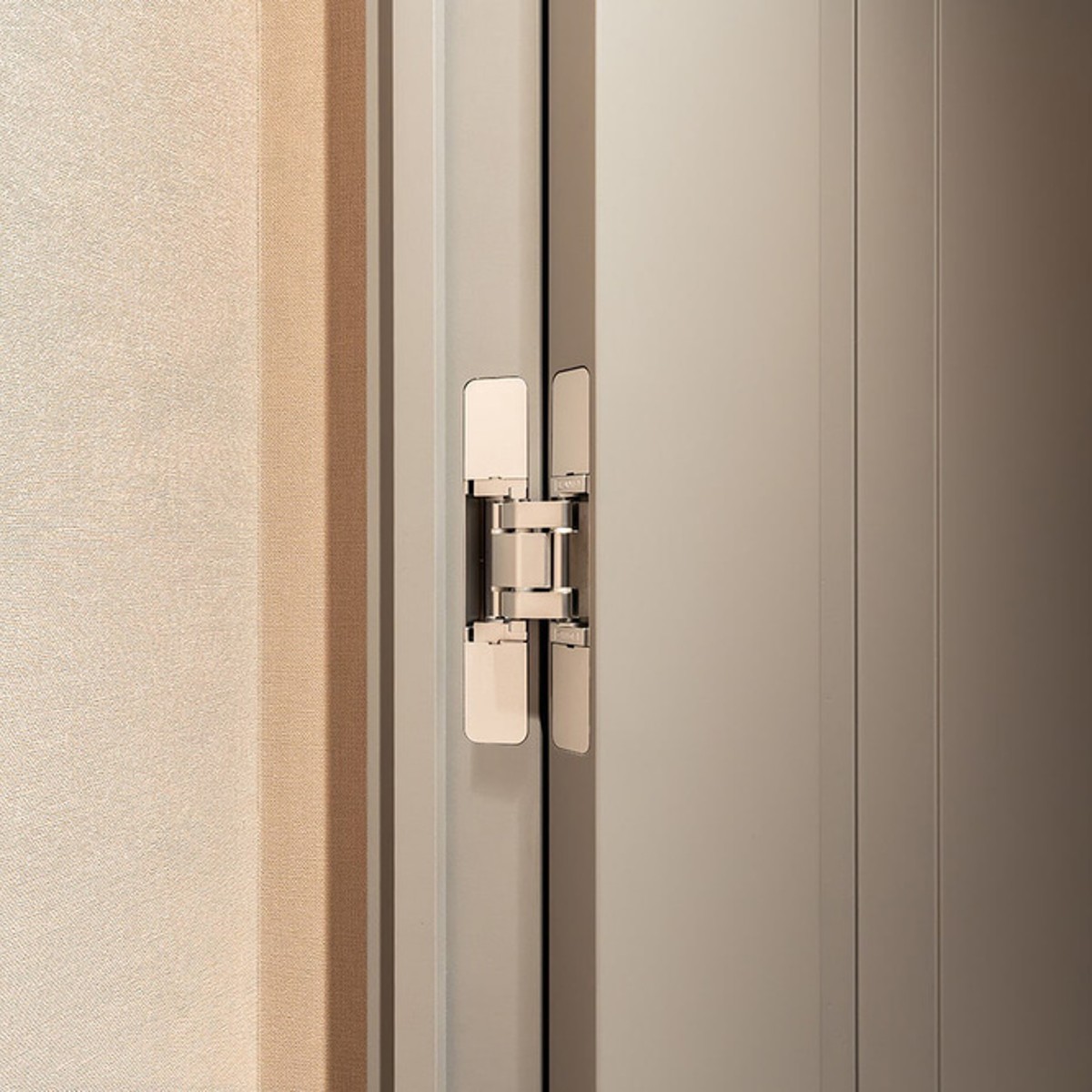

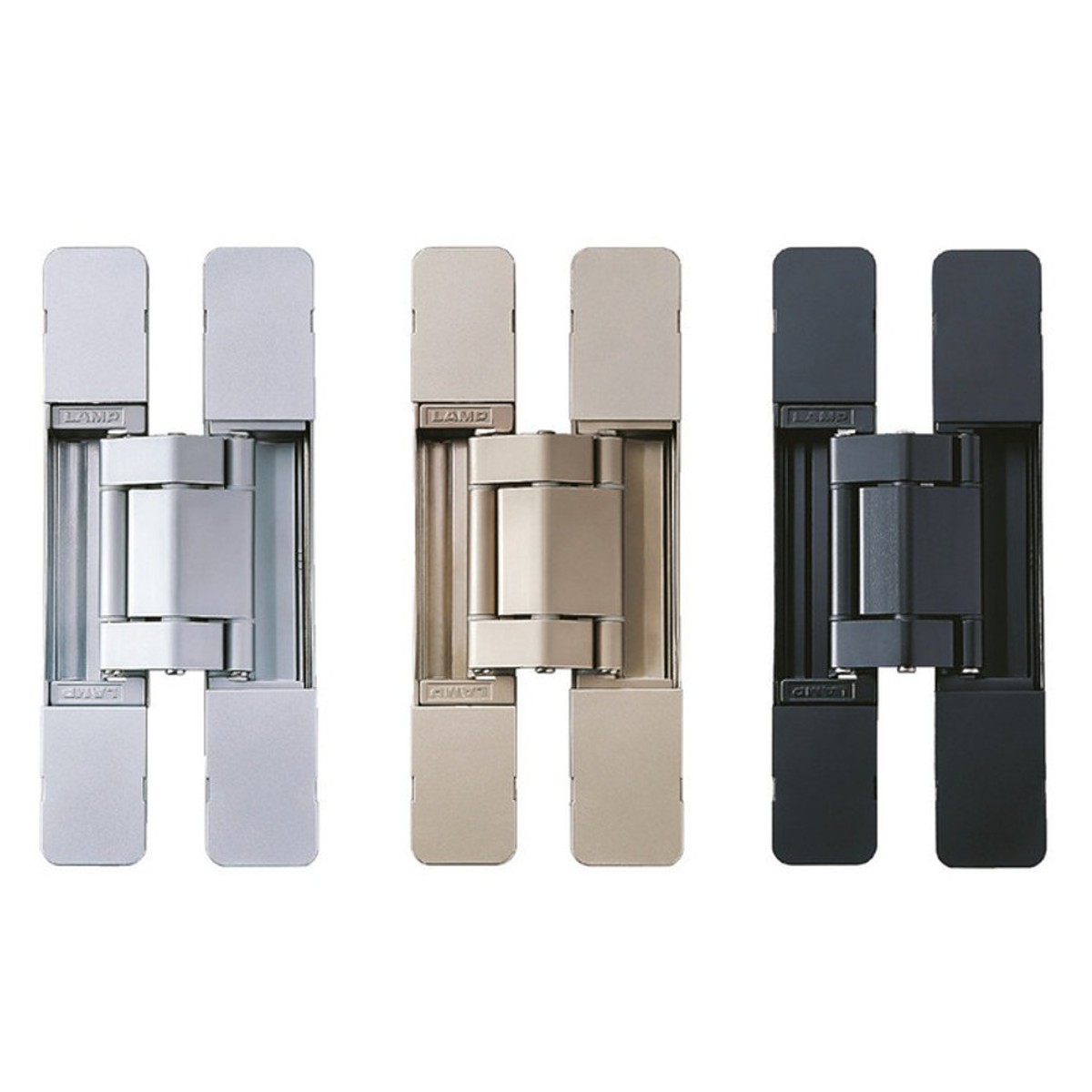

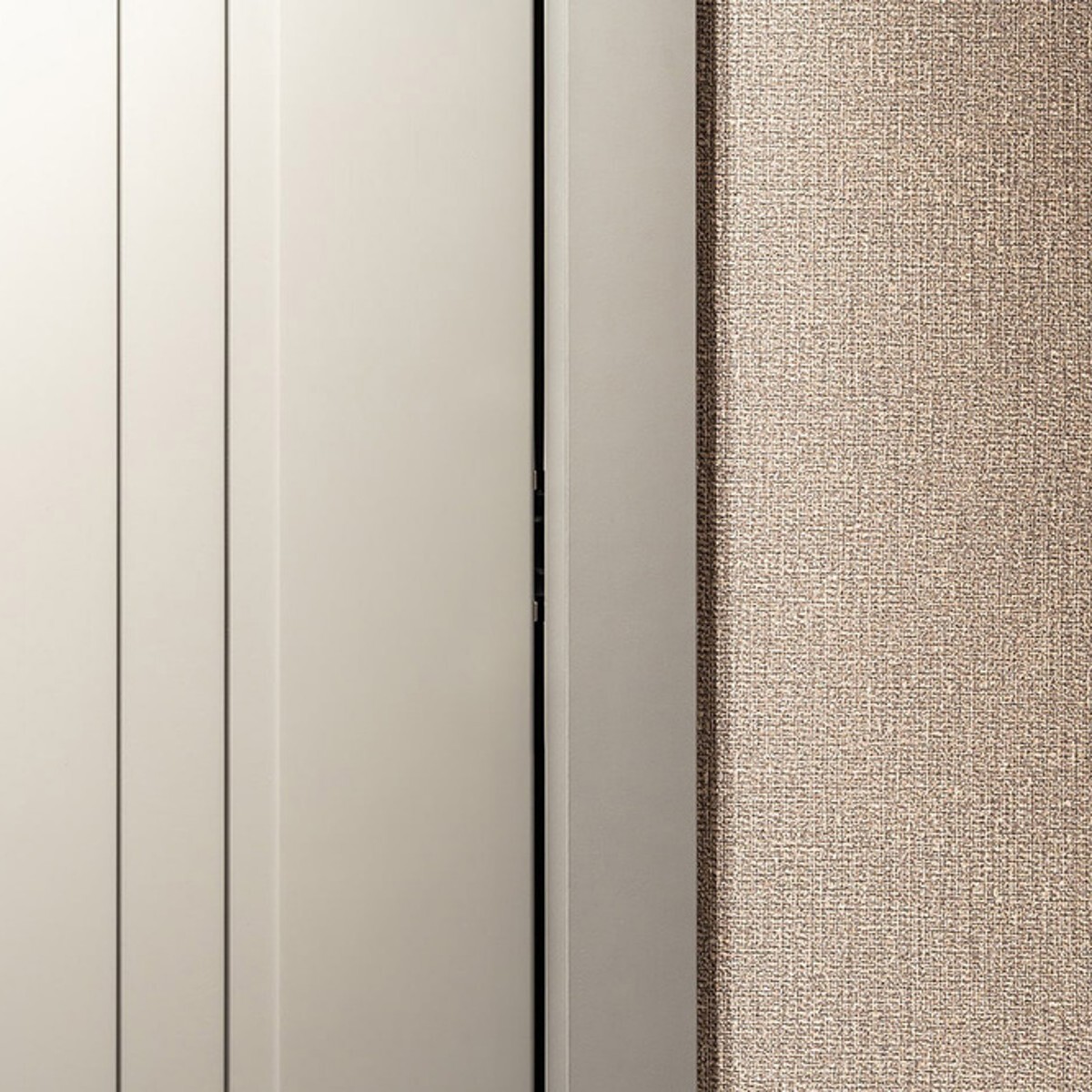

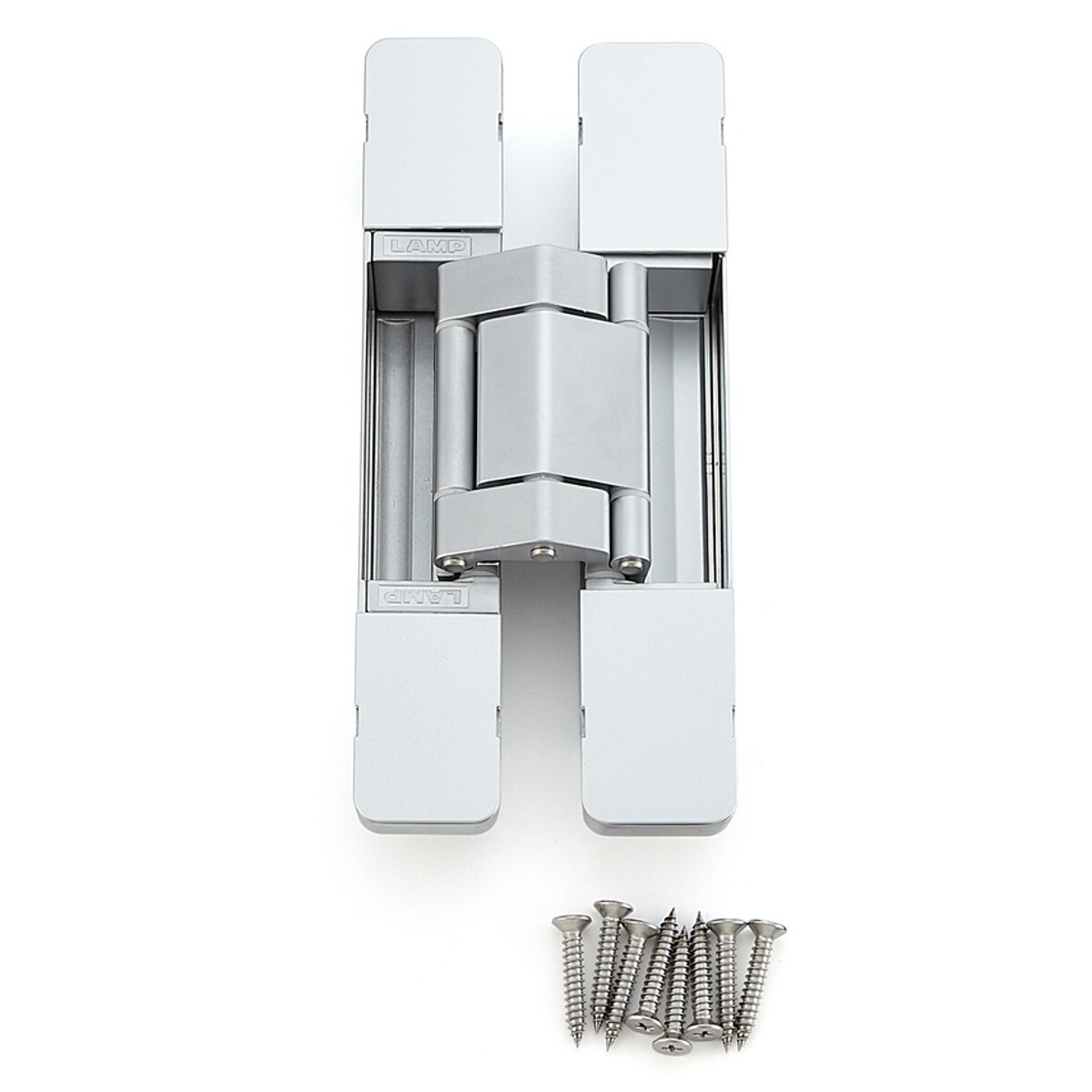

The Sugatsune HES3D-E190 hinge is engineered for exceptional strength and durability, making it the perfect solution for heavy doors in both high-traffic commercial environments and upscale residential settings. With its robust construction and advanced 3-way adjustability, the HES3D-E190 ensures precise alignment and smooth operation, providing reliable performance and a sleek, concealed appearance that enhances the aesthetic appeal of any door installation. Dedicated for room dividing or entrance doors making installation a breeze with 3 way vertical, horizontal and depth adjustment.
- Sold in singles
- Installation: inset
- Opening angle: 180°

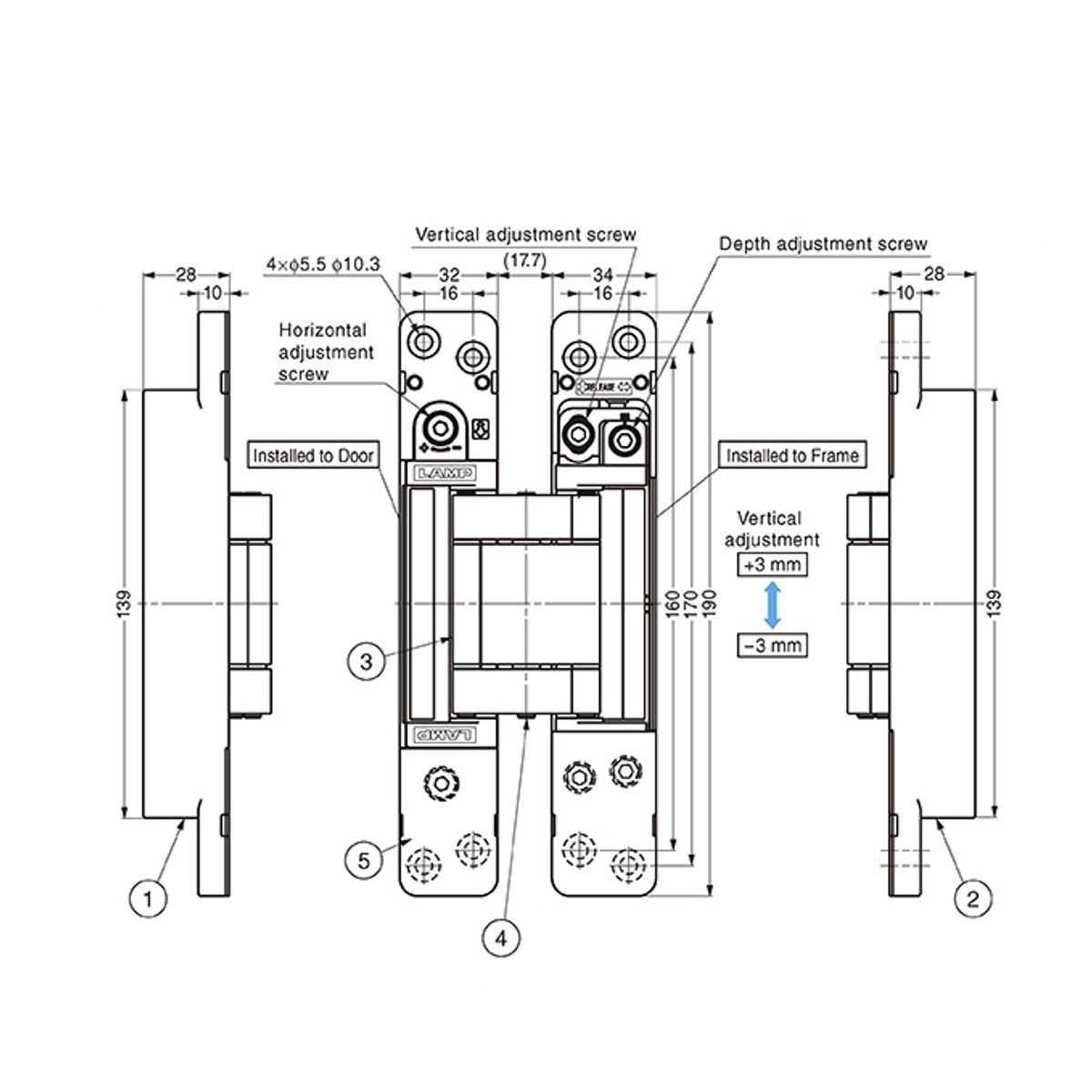

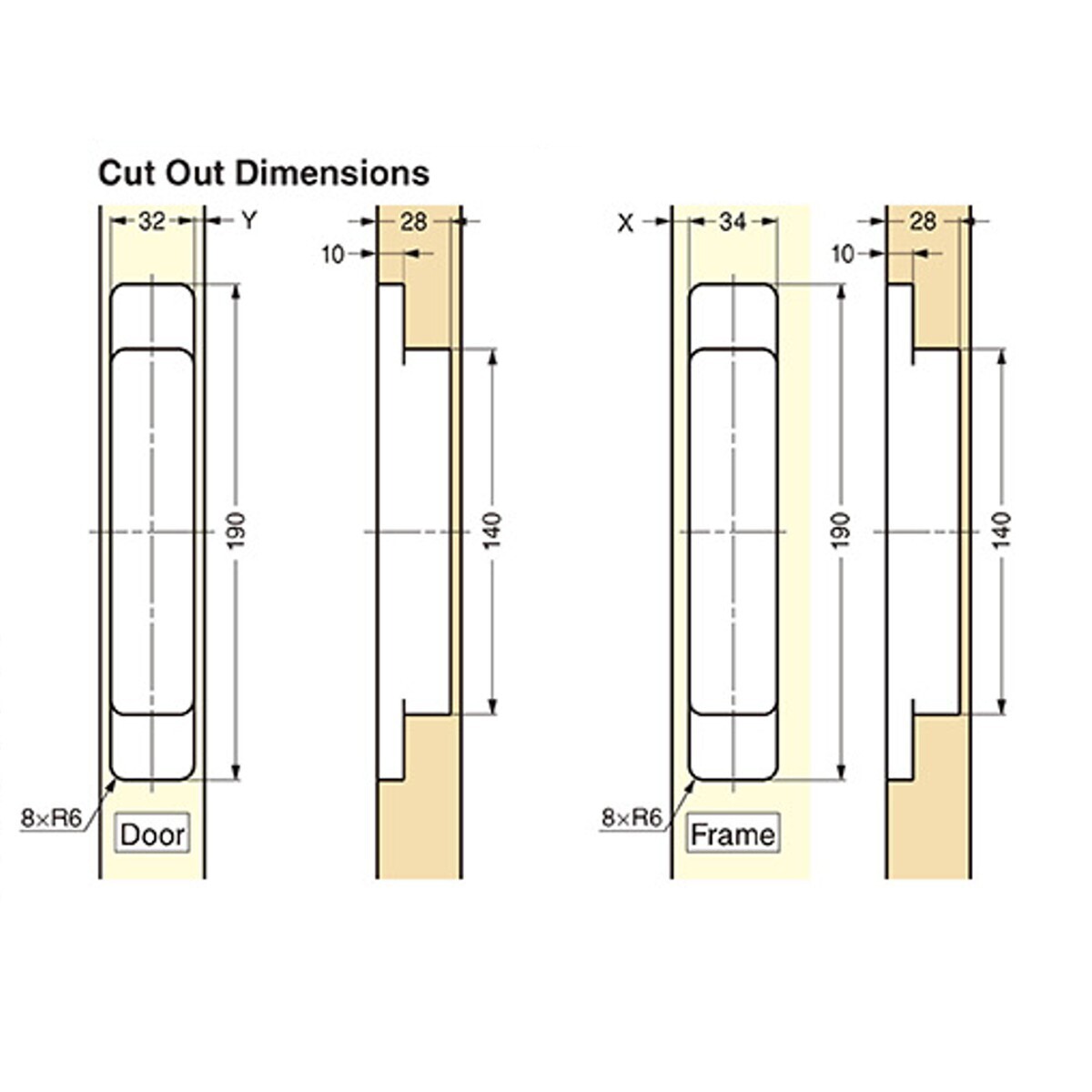

- Hinge length: 190mm
- Maximum door width: 900mm
- Maximum door height: 2400mm
- Minimum door thickness: 38mm
- Designed to support large, heavy doors
- It can be used in both residential and commercial settings
- Maximum load capacity:
- 2 hinges: 60-100kg
- 3 hinges: 70-125kg

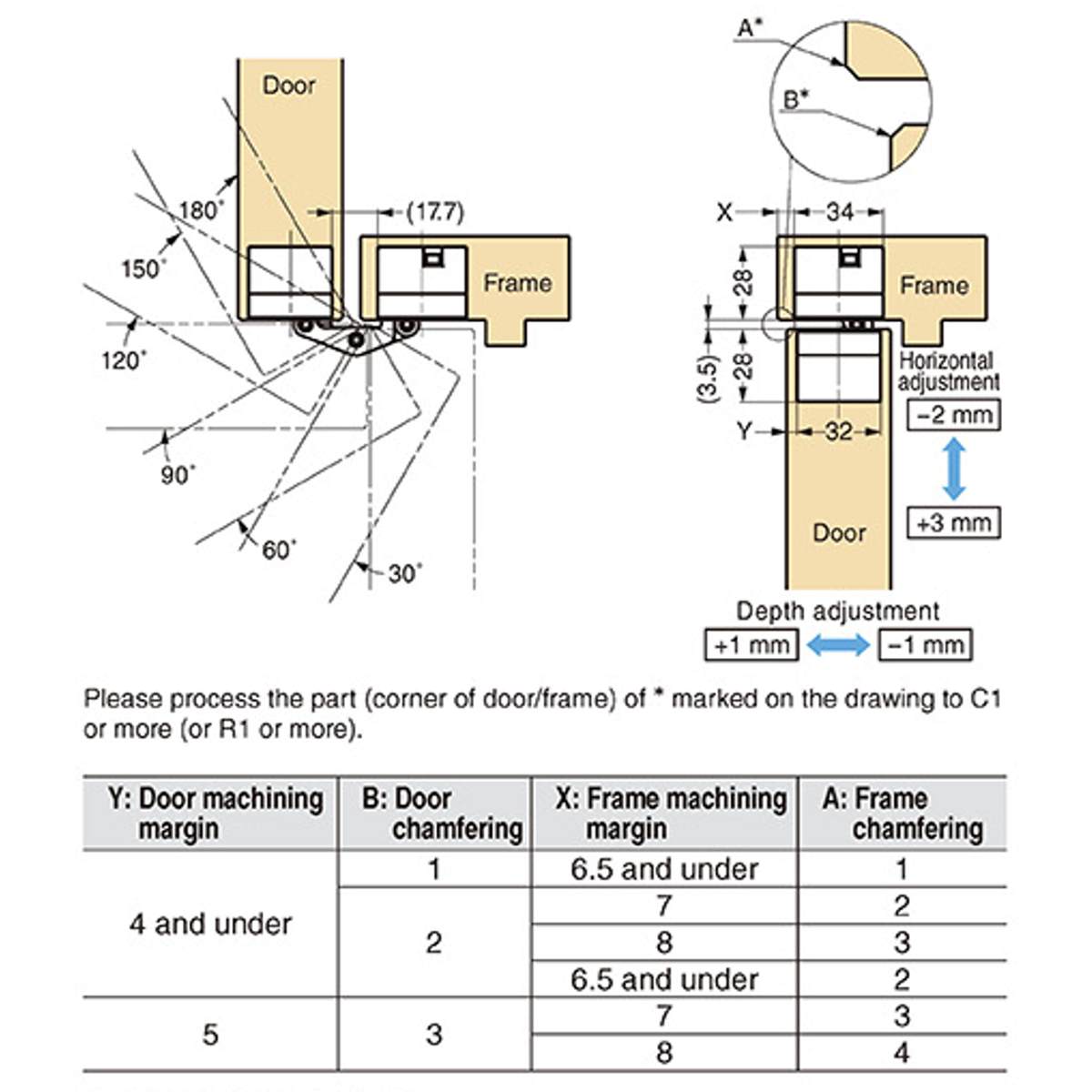

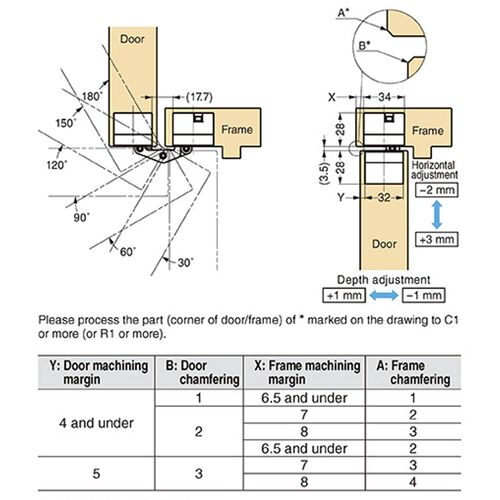

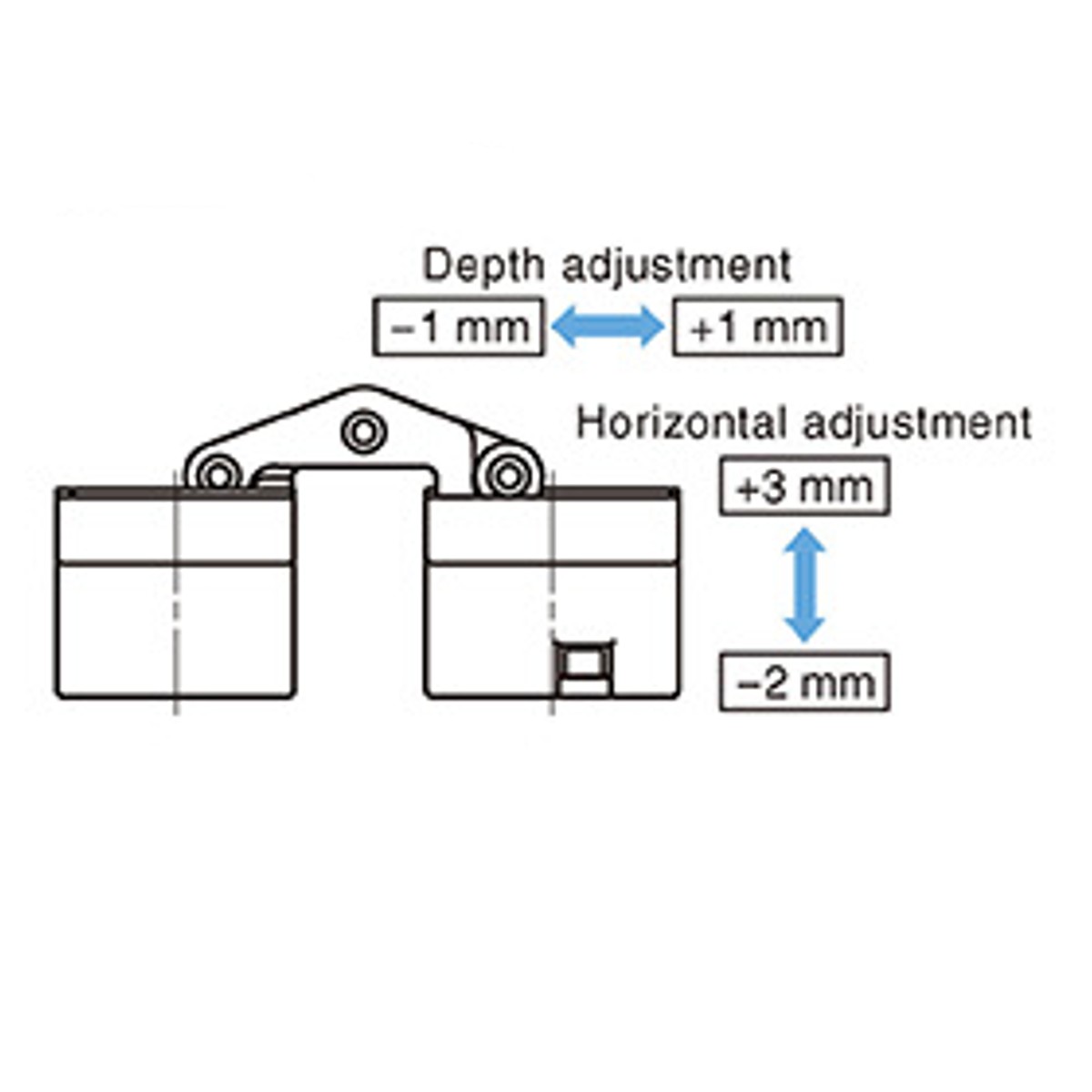

- 3-way adjustment:
- Depth
- Vertical
- Horizontal

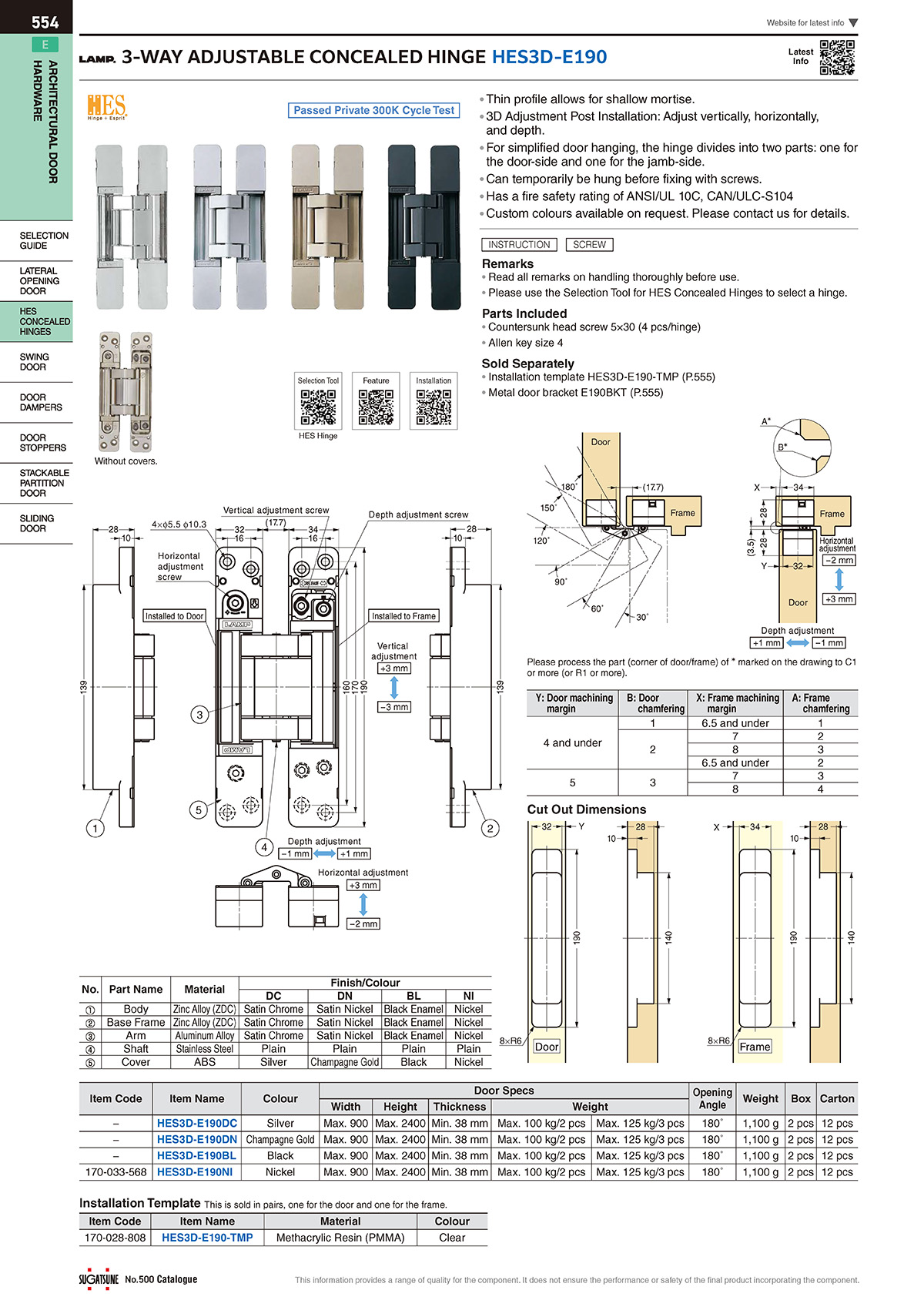

Weight is determined between the door height, width and the hinge pitch (distance between the installation of hinges). Please see technical docs for the load values between using 2 or 3 hinges.
