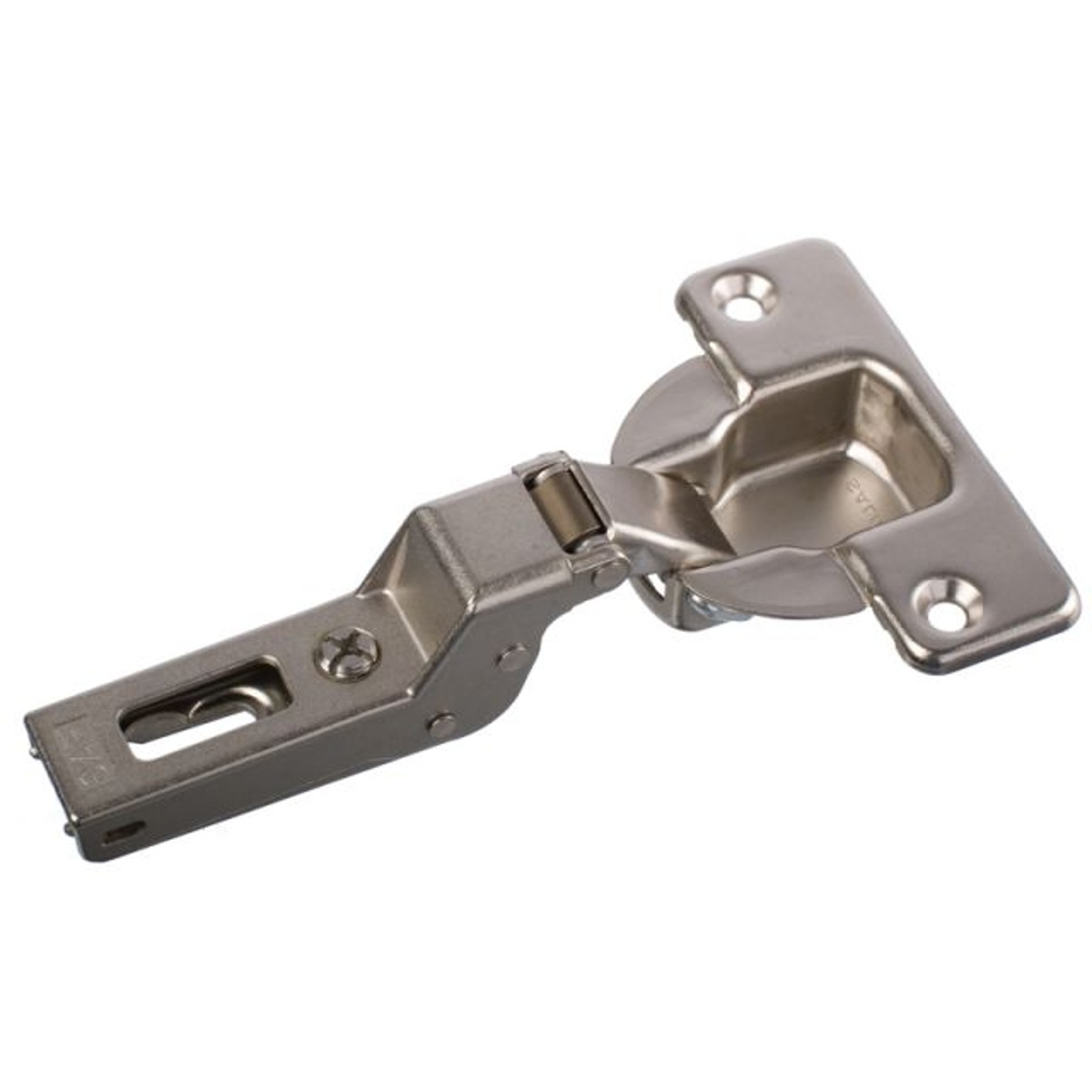

Salice CFA7G99 94 Degrees Half Overlay Sprung Hinge

The Salice CFA7G99 94 degrees half overlay sprung hinge features a 40mm cup with an 11mm cranked arm, designed for HALF overlay applications. The cup drilling depth is 13mm, making it suitable for heavier or thicker doors (up to 40mm). This hinge works seamlessly with all traditional 200 Series mounting plates and DOMI snap-on mounting plates.

• Sprung
• Cup drilling: 40mm
• Half overlay application
• Installation: screw fixing
• Door thickness: 18-24mm
• Cup drilling depth: 13mm
• Suitable for Accuride 1432
• Requires 3.5mm Countersunk screws
• Mounting plates sold seperately in the related products below

A number of hinges required per door height:

• 915-1193mm (3 hinges)
• 1194-1498mm (4 hinges)
• 1499-1803mm (5 hinges)
• 1804-2300mm (6 hinges)
