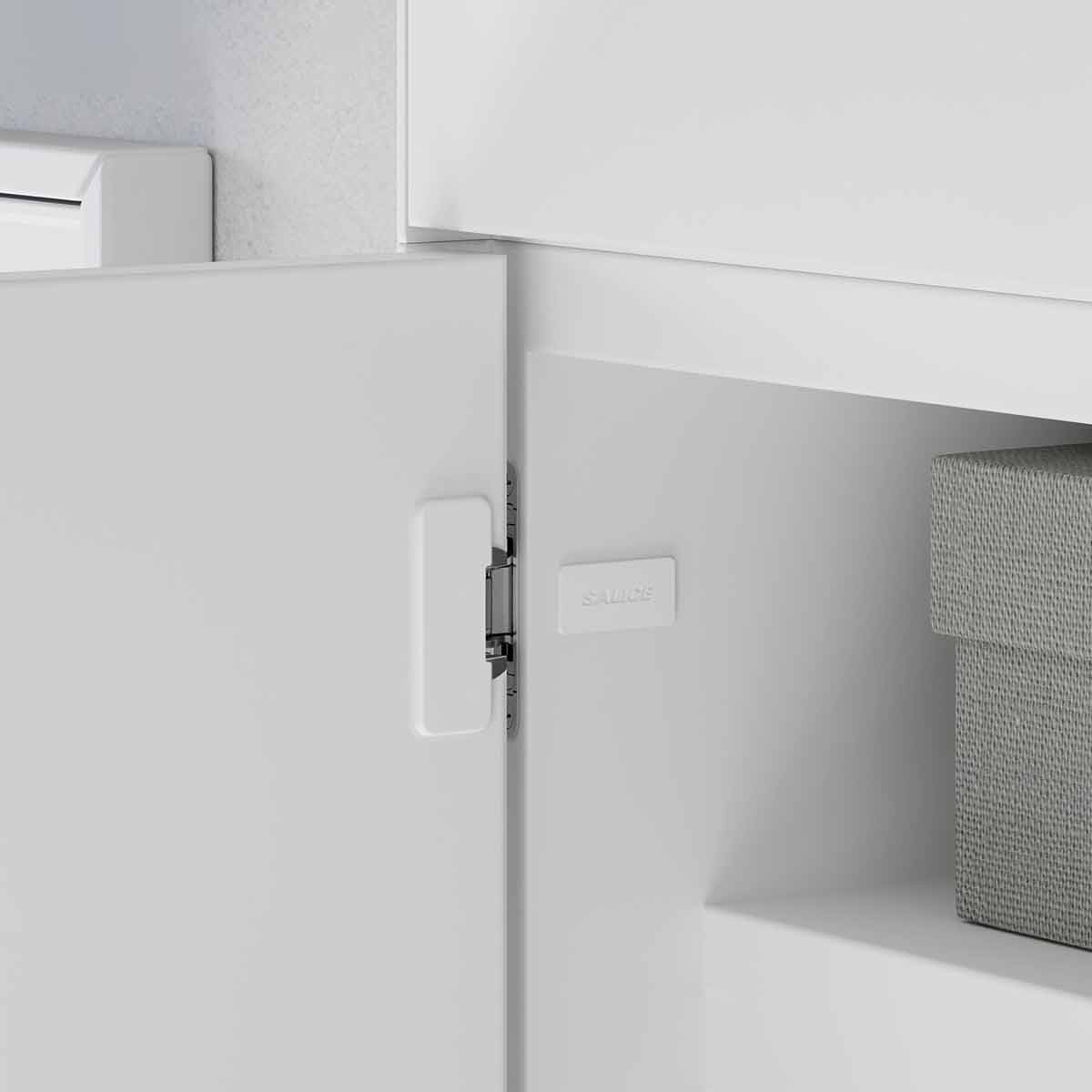

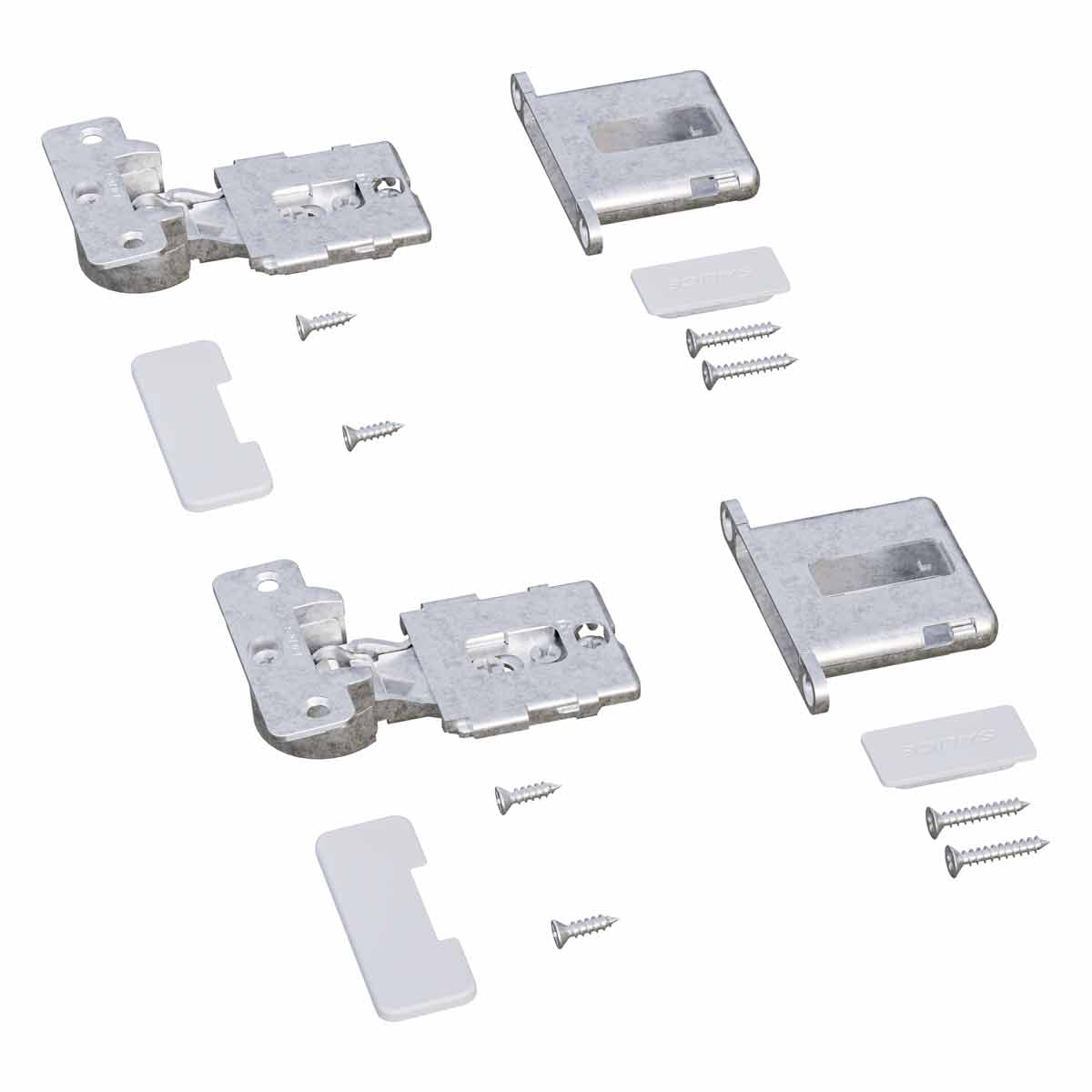

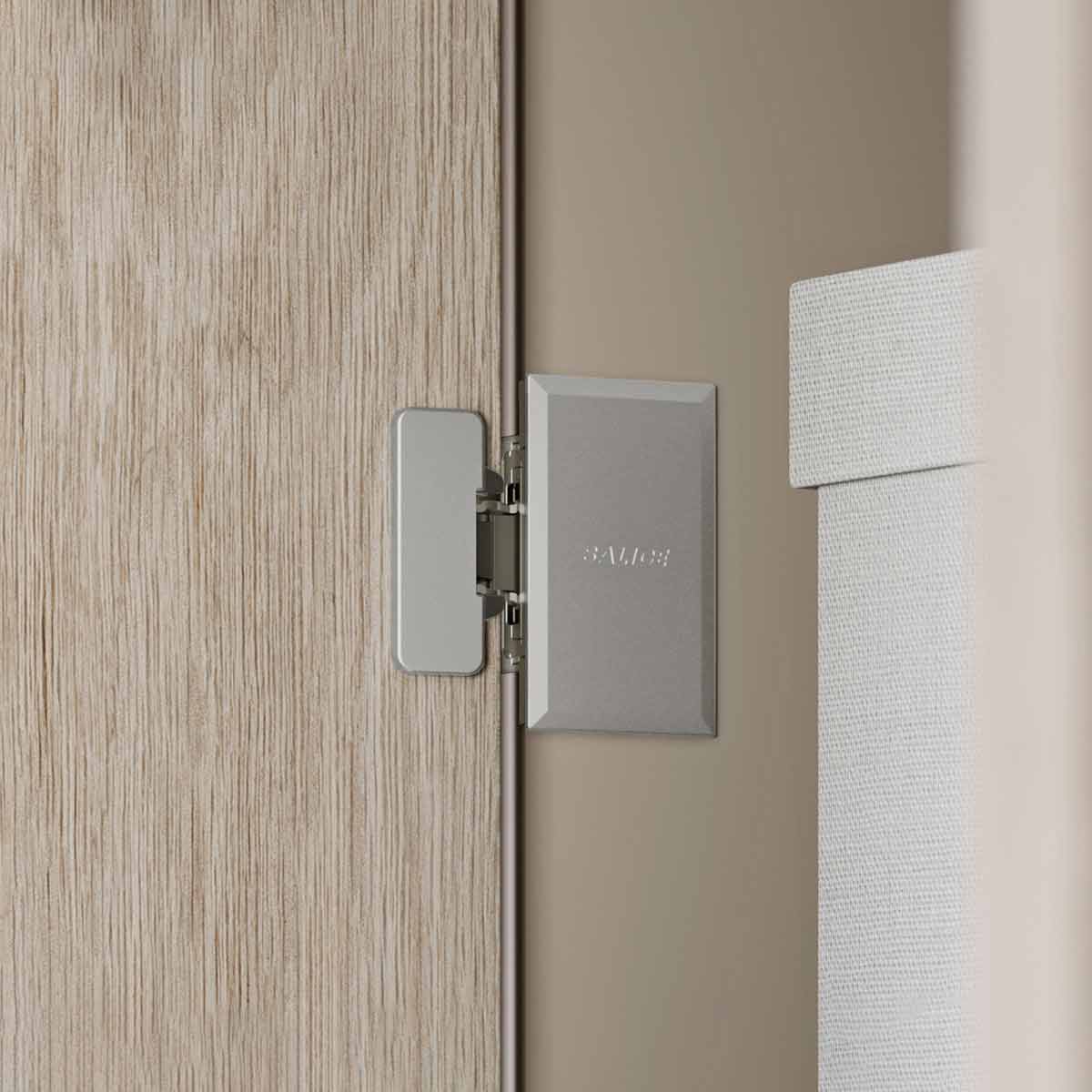

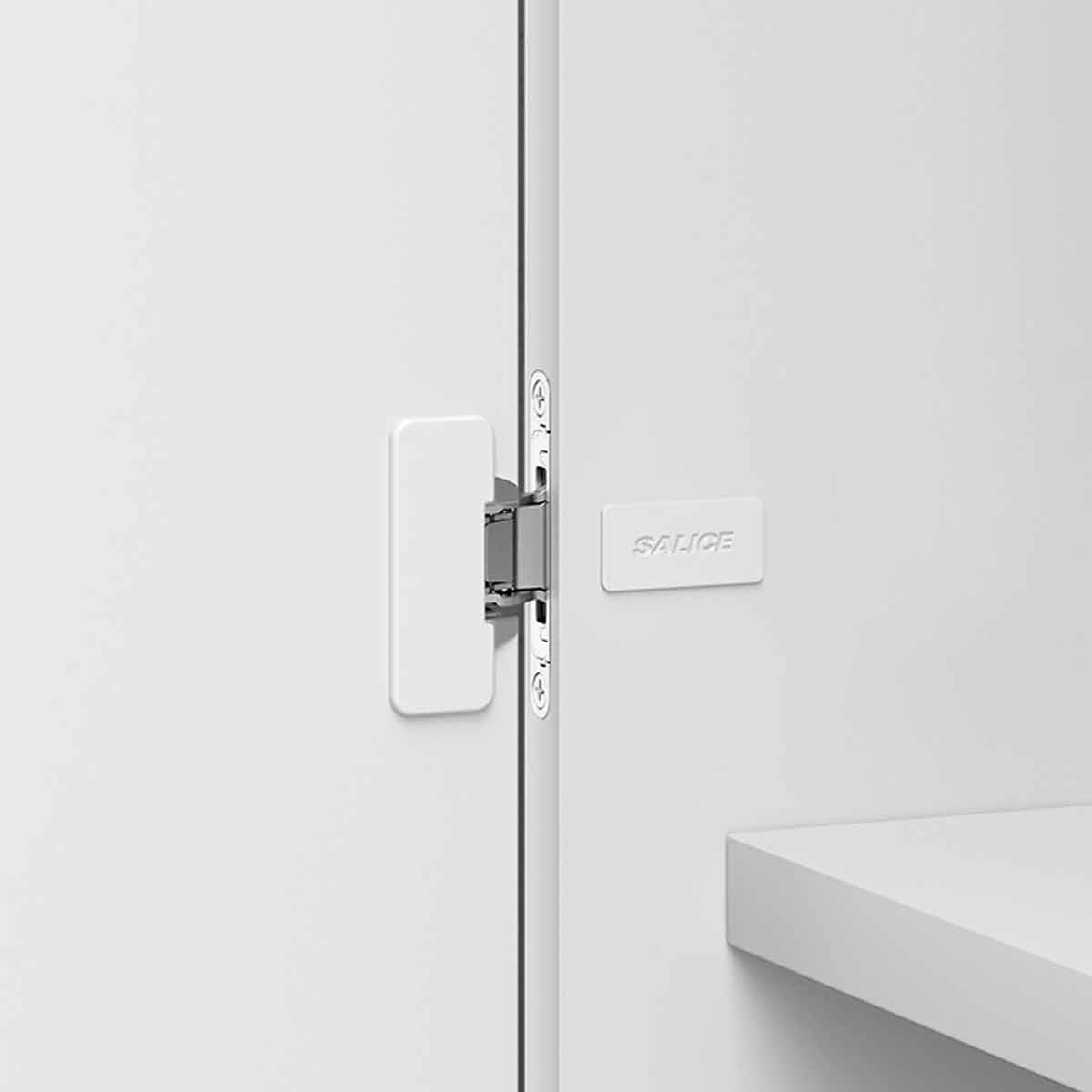

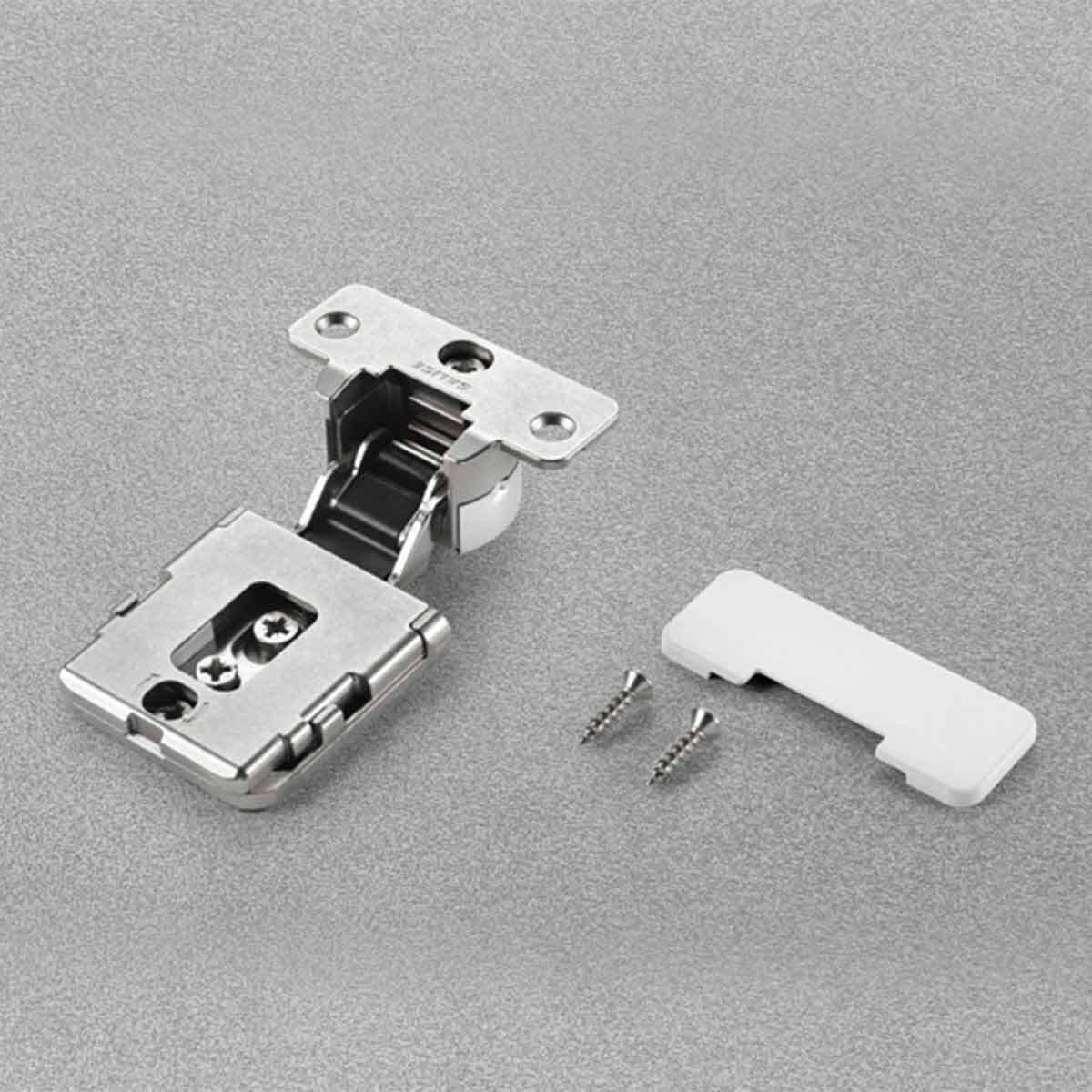

Experience the Salice Conecta concealed hinge. A perfect blend of compactness and adaptability, completely hidden inside your cabinet door. With its ability to manage the opening and closing movements with precision and fluidity, even for large and heavy wooden doors, it brings exceptional elegance and functionality to your furniture.
- 94° opening
- Cup depth: 22mm
- Cup diameter: 35mm
- For MDF or wooden doors
- Minimum thickness: 19mm
- Depth adjustment +/- 3mm
- Height adjustment +/- 2.5mm
- Sideways adjustment +/- 2mm
- For 14-16.5mm door overlaps*
- Drilling distance fixed at 10mm from the edge of the door to the centre of the hole
Please note that:
- Doors not included

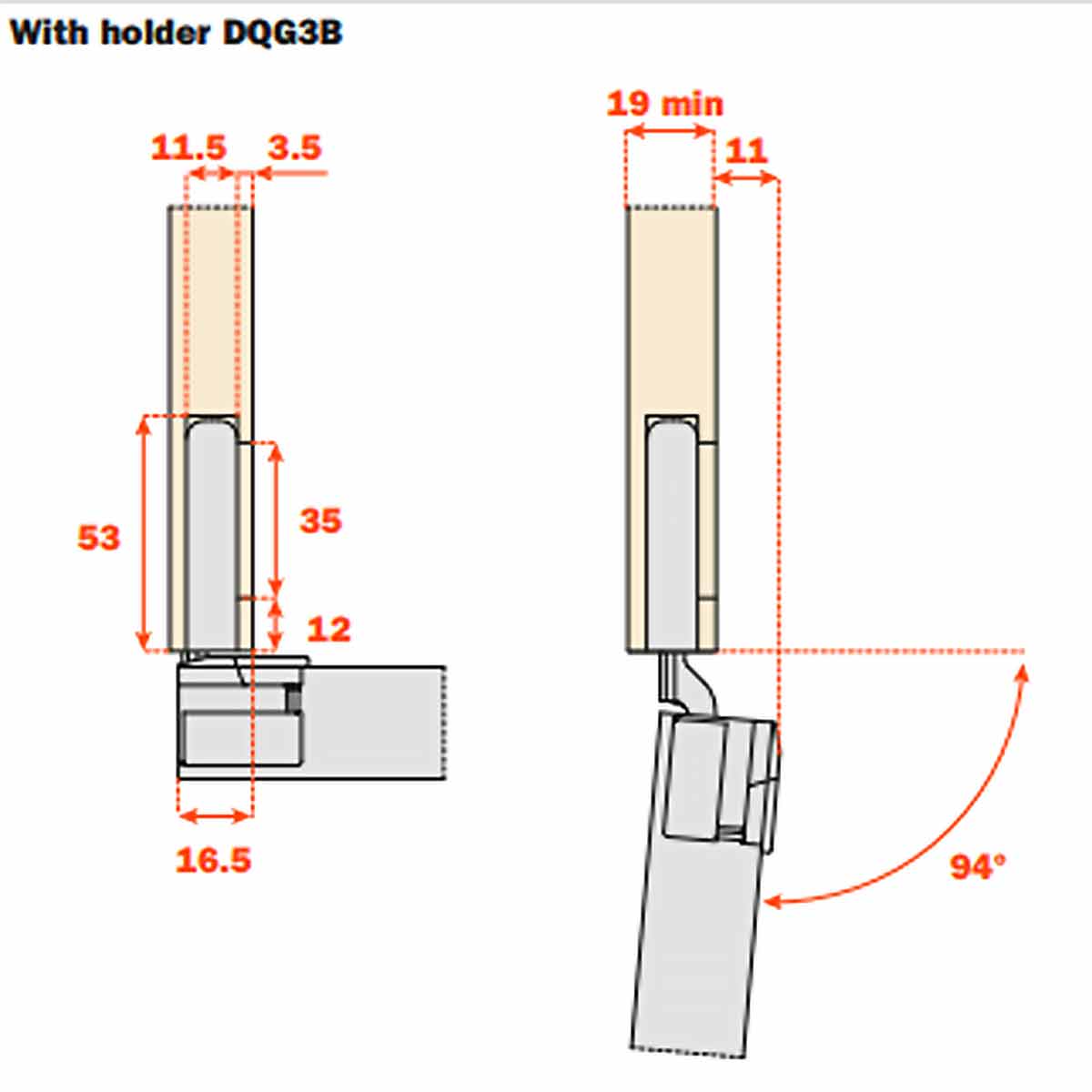

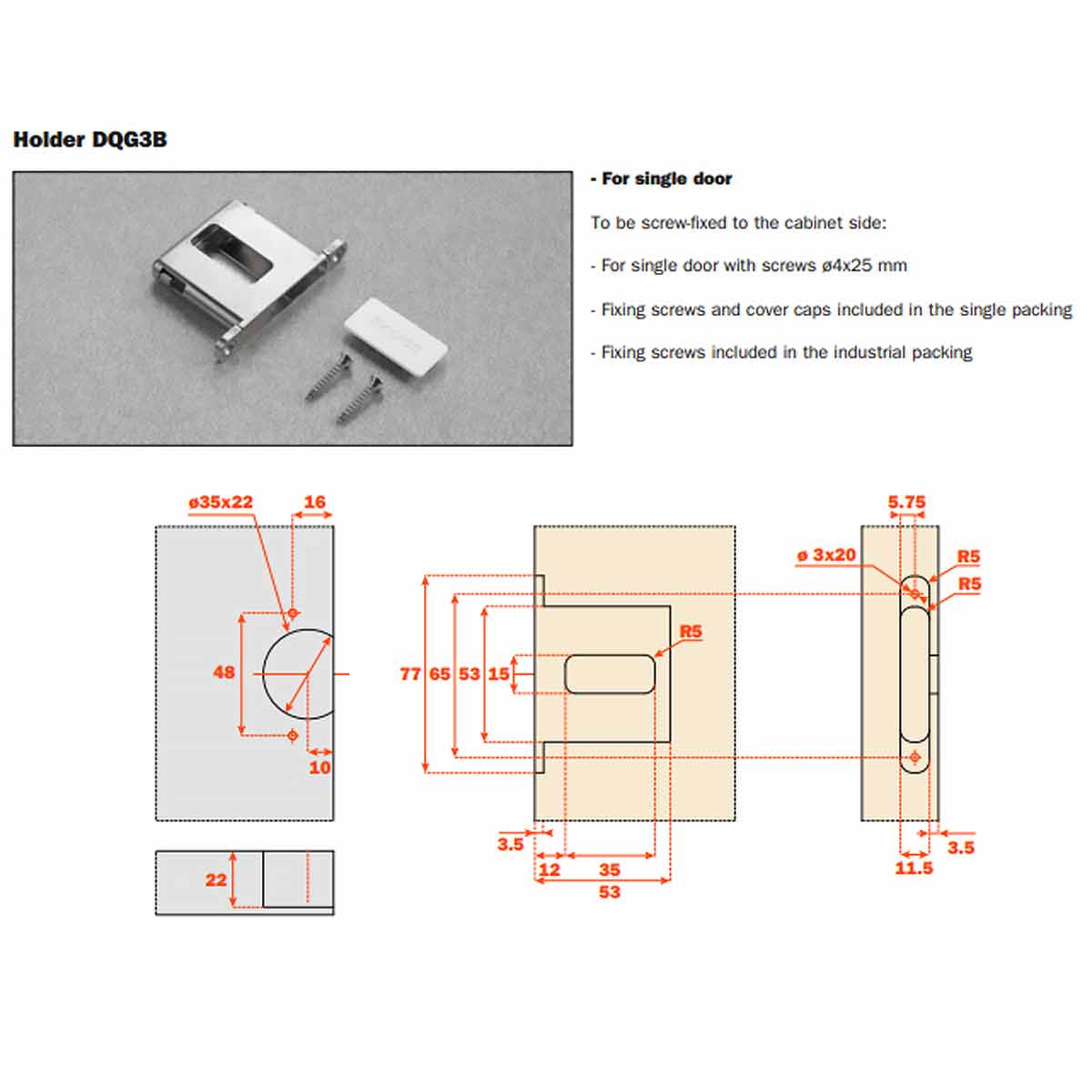

- *For the meaning behind 14/16.6mm door overlaps, please refer to the technical diagrams shown in the photos and in the technical docs tab
