Slido 80-M Sliding Door Fittings

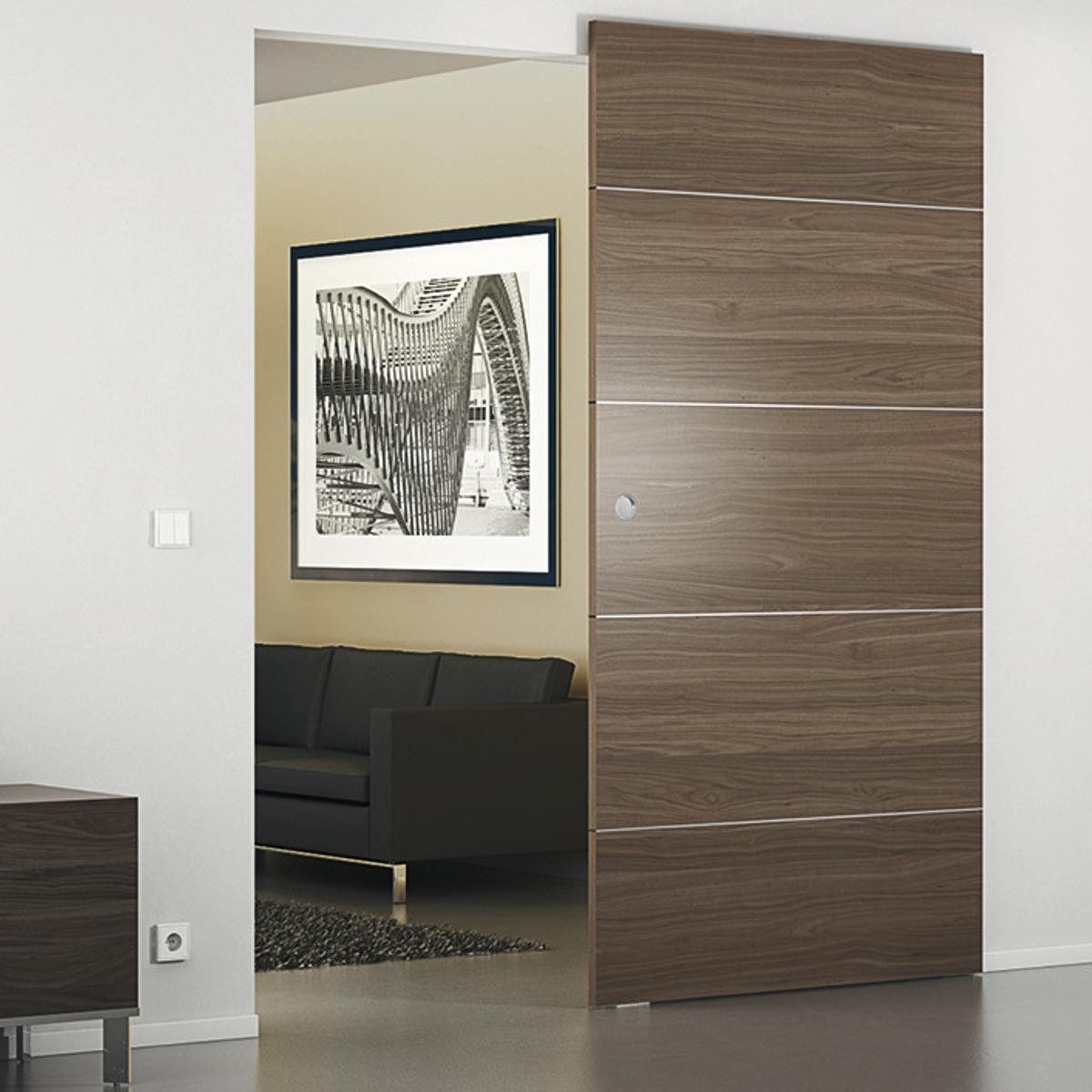

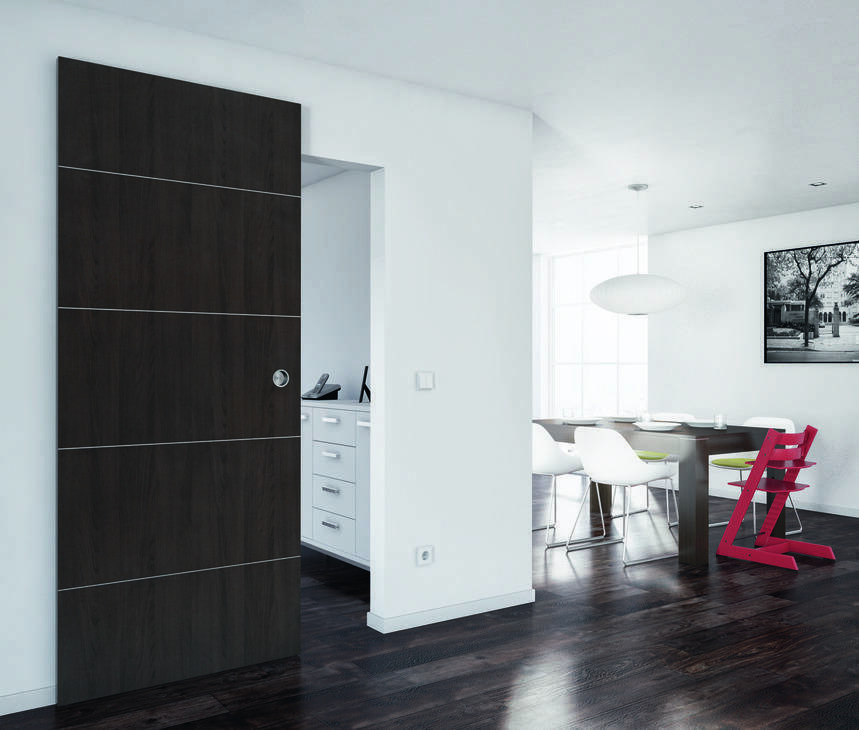

Allows wall-mounted wooden doors to slide across openings as if they were floating, the unique design means all tracks and fixings are hidden. Suitable for residential or commercial applications such as offices, meeting rooms or hotels. Includes soft-closing mechanism.

• Height adjustment: ±2mm
• Maximum door weight: 80kg

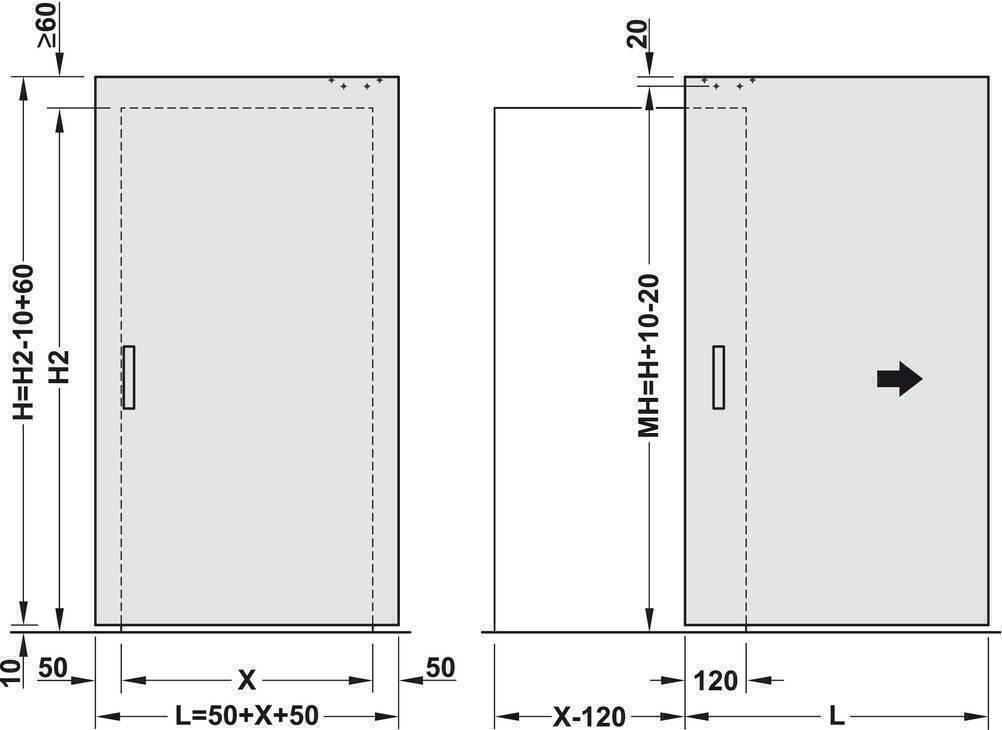

• For door width: 800-1800mm
• Minimum door thickness: 30mm
• Please note the bottom rollers need to run on a solid floor, if the carpet is present then a running strip must be used (by others)

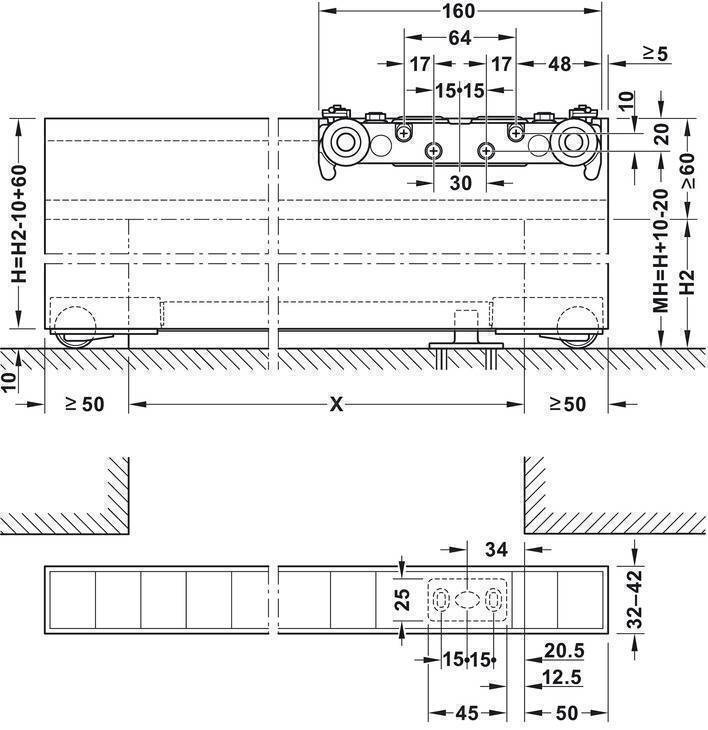

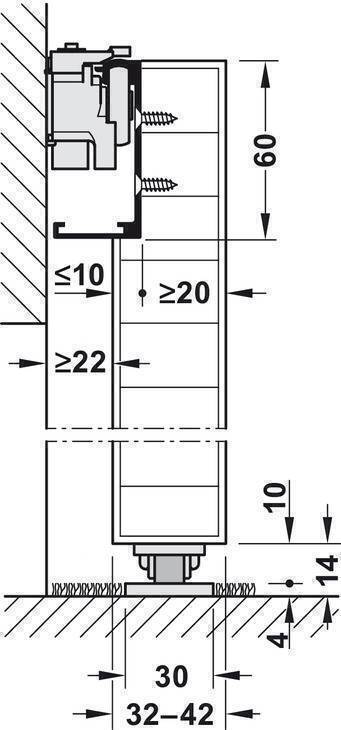

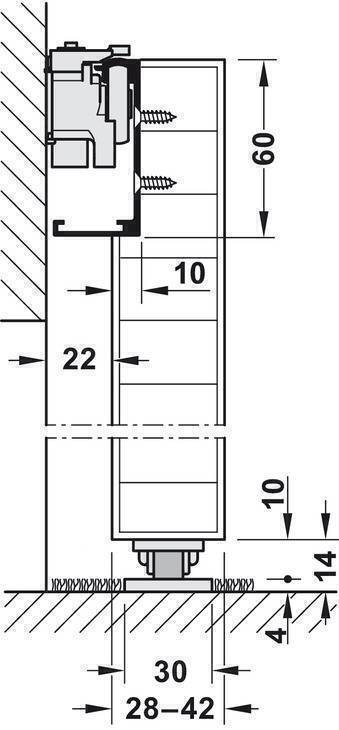

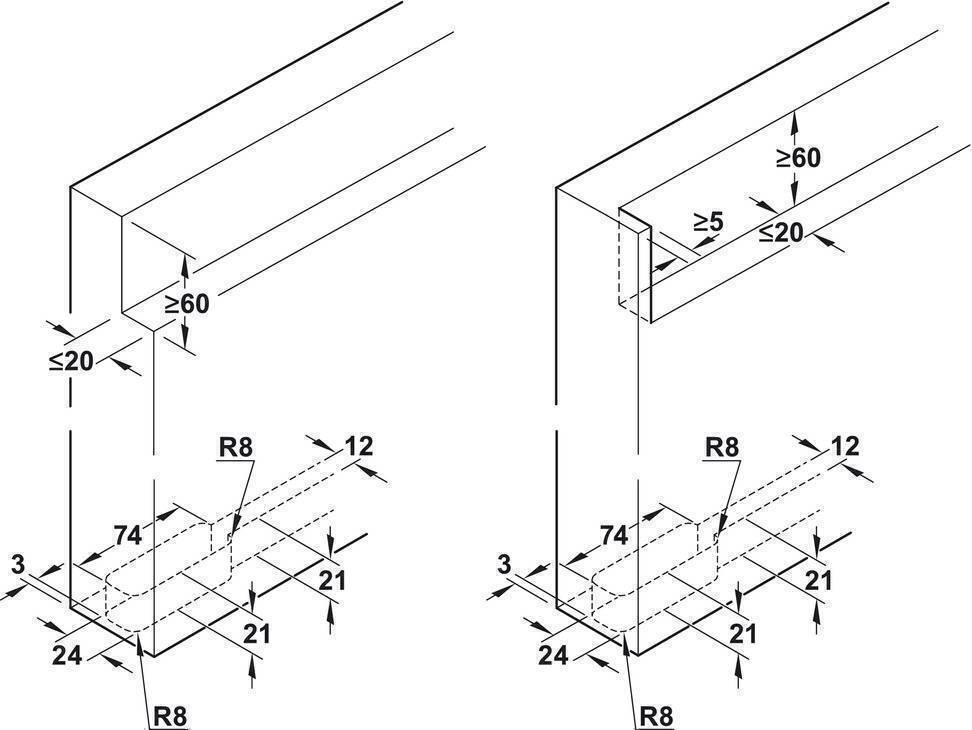

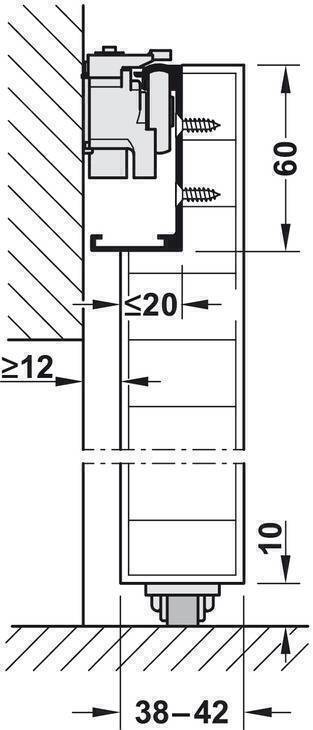

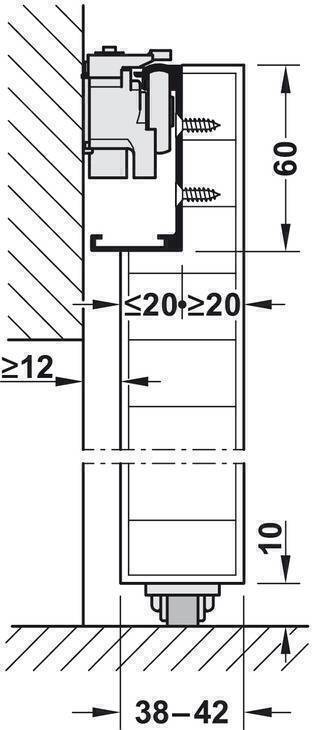

• The top track can be recessed into the door for a wall-to-door clearance of 12-22mm or face fixed with a clearance of 32mm for skirting boards

The fitting set for one door consists of:

• 2 x spacers
• 2 x hex keys
• 1 x floor guide
• 1 x guide track
• 1 x running gear
• 1 x running track
• 1 x set of guide rollers
• 1 x open-ended spanner
• 2 x soft and self-closing mechanisms
• 1 x floor-mounted door stop (for optional use)
• 1 x set of end caps (1 pair black, 1 pair silver coloured)
