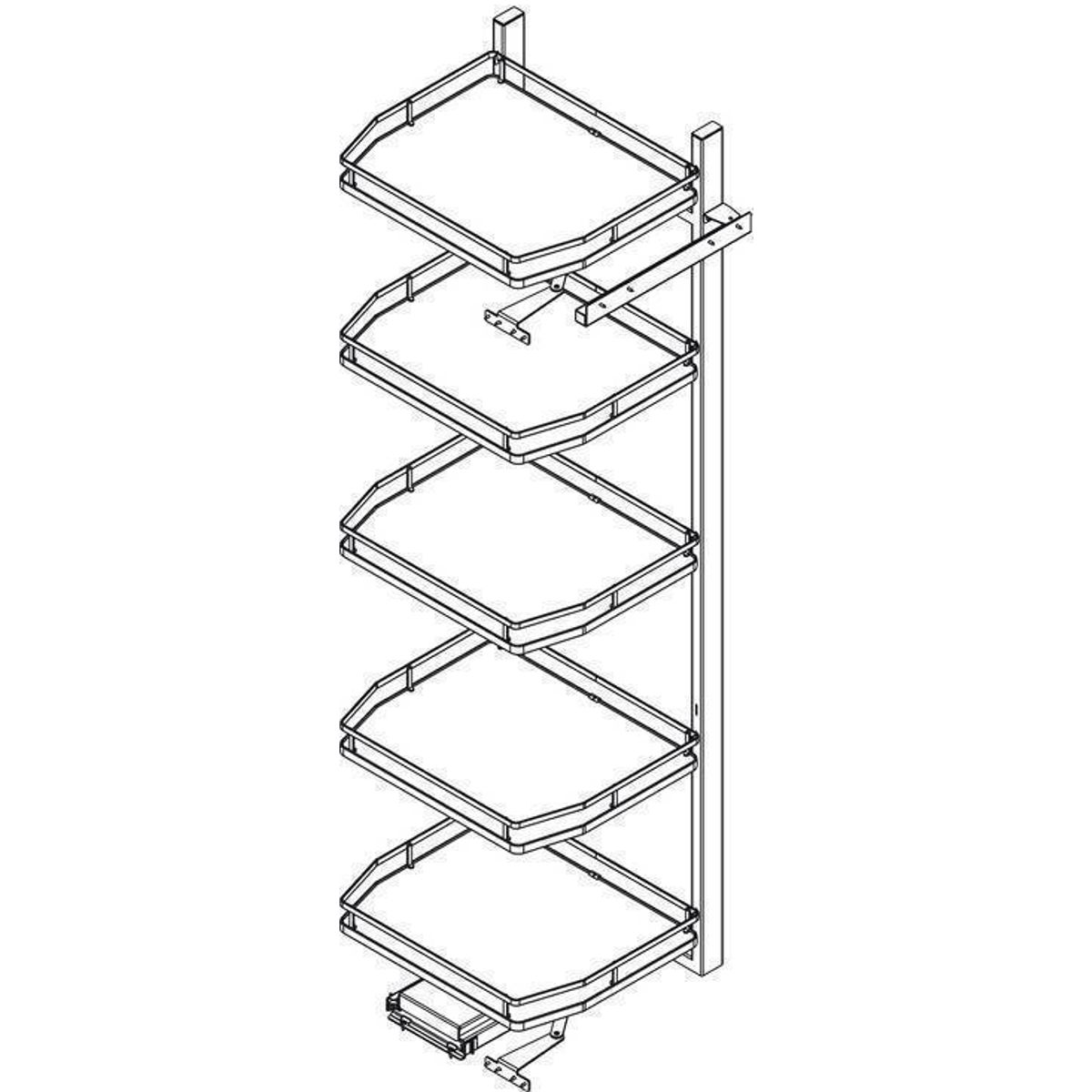

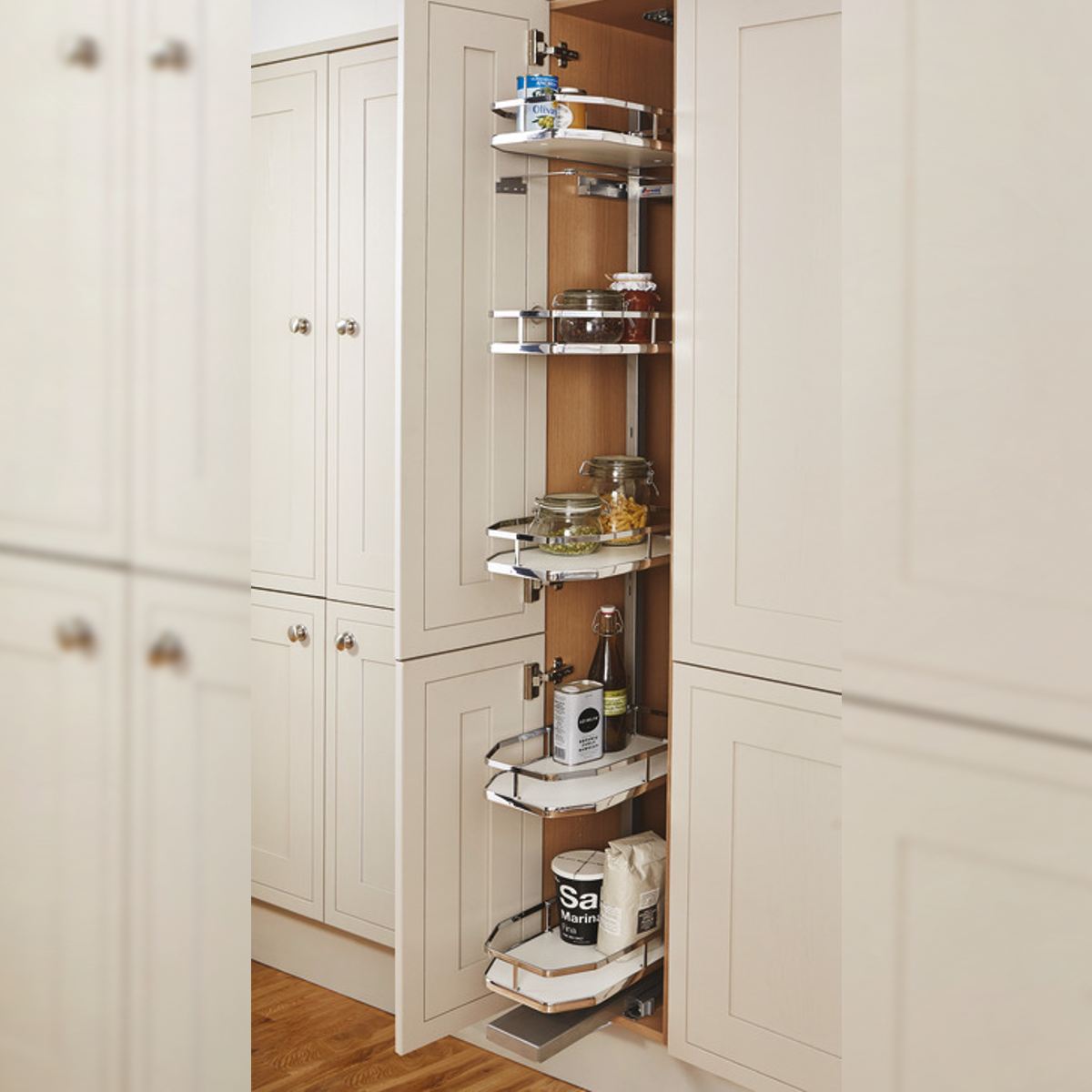

Swing Out Larder Unit With Full Extension Runners

German made swing out larder unit with chrome rail surrounds and 5 white solid base shelves. Suitable for external cabinet widths of 300, 500 and 600mm. Due to the top runner being side-mounted there is no maximum height restriction.

• Minimum built-in depth: 465mm
• Minimum installation height: 1750mm
• Minimum built-in width: 240/440/540mm
• Recommended hinges:
  • 110º/125º for 300-400mm cabinets
  • 110º/170º for 500-600mm cabinets
• Soft close hinges must be used if you'd like to use soft close on the unit

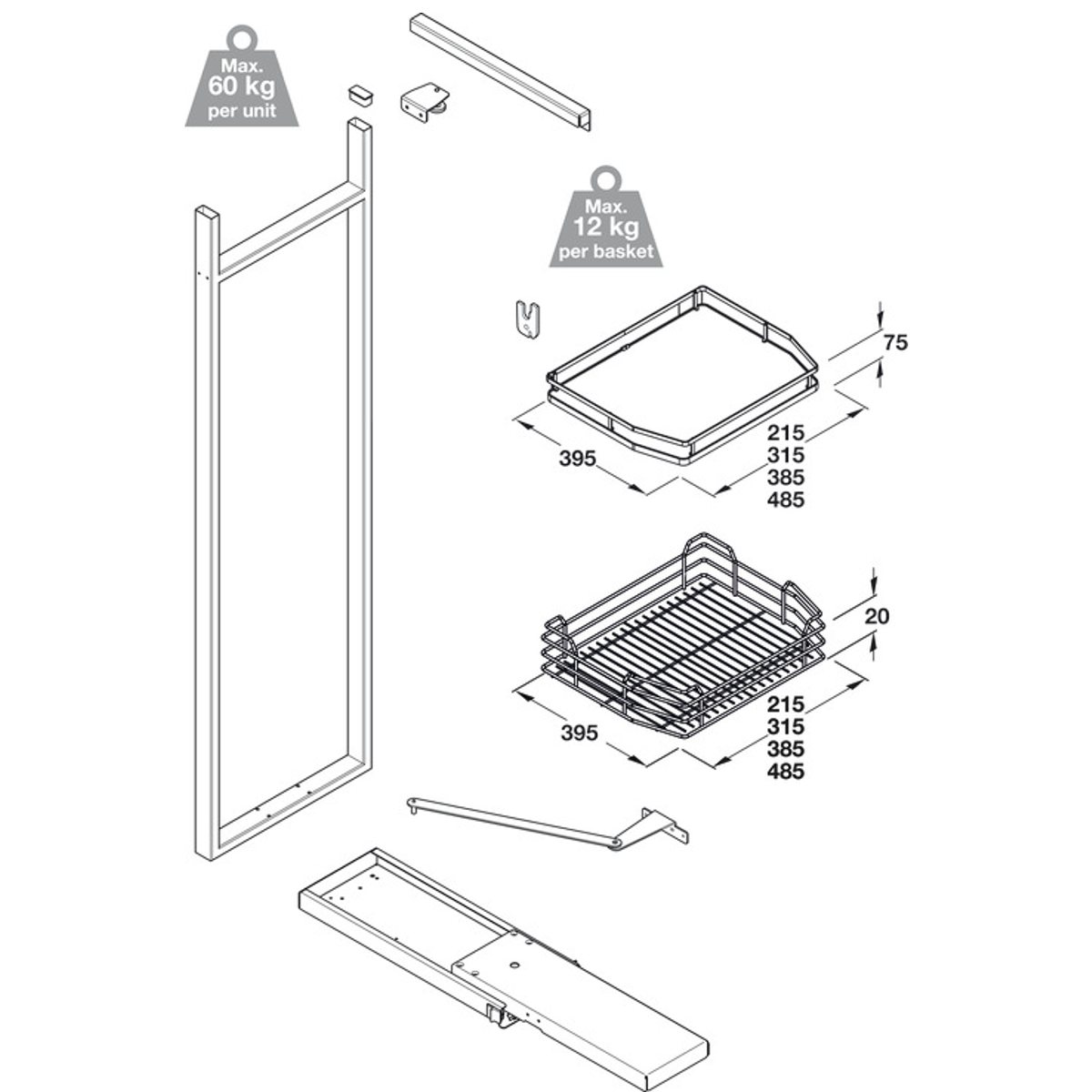

• Maximum weight per unit: 60kg
• Maximum weight per basket: 12kg
• Made out of: steel

Sizes of basket based on width of cabinet

• 300mm: 215mm basket width
• 500mm: 385mm basket width
• 600mm: 485mm basket width

Set includes:

• 1 x frame set
• 1 x runner set
• 1 x basket set (5 baskets and 10 hooks)
• Fixing materials included

Please note that:

• Cabinet is not included
