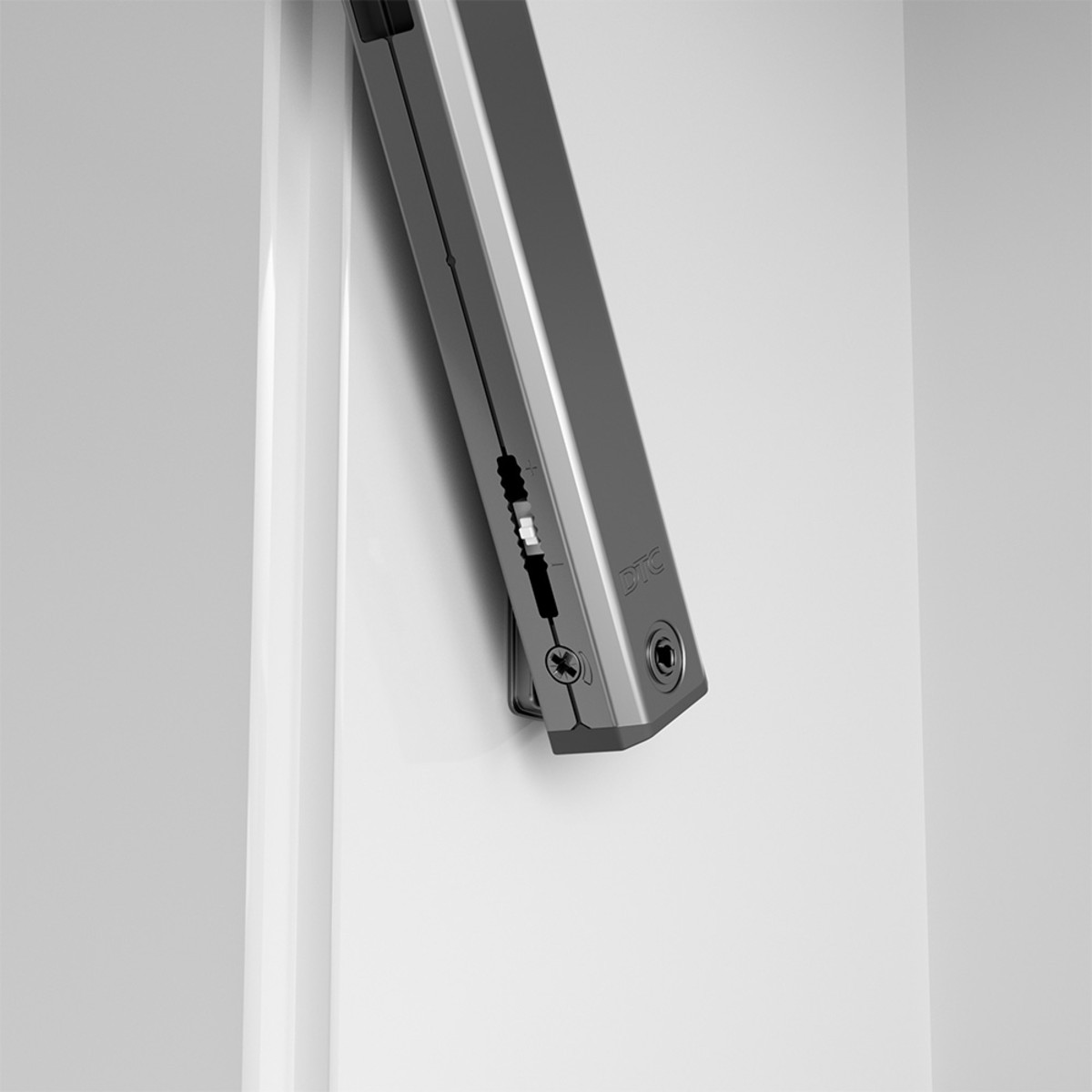

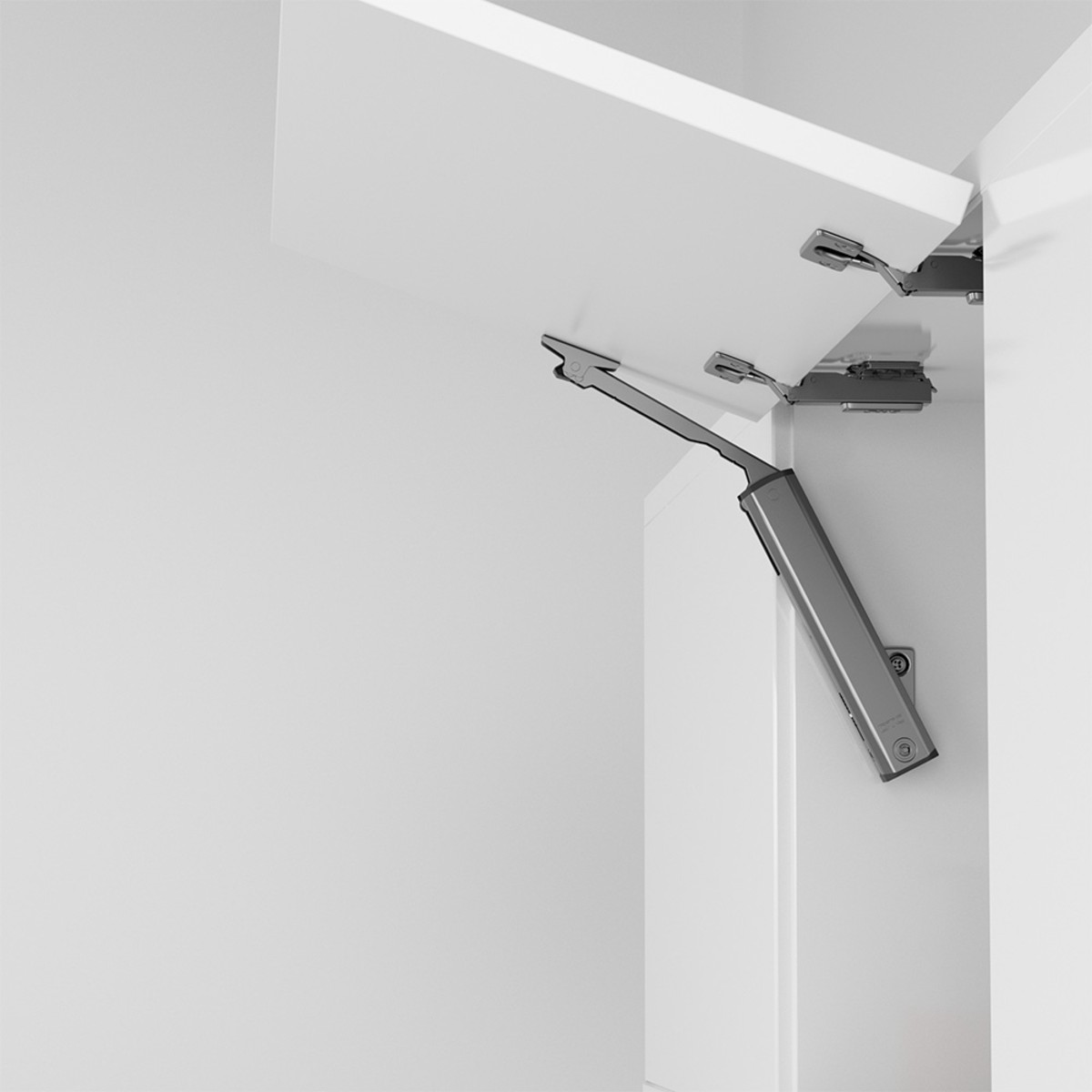

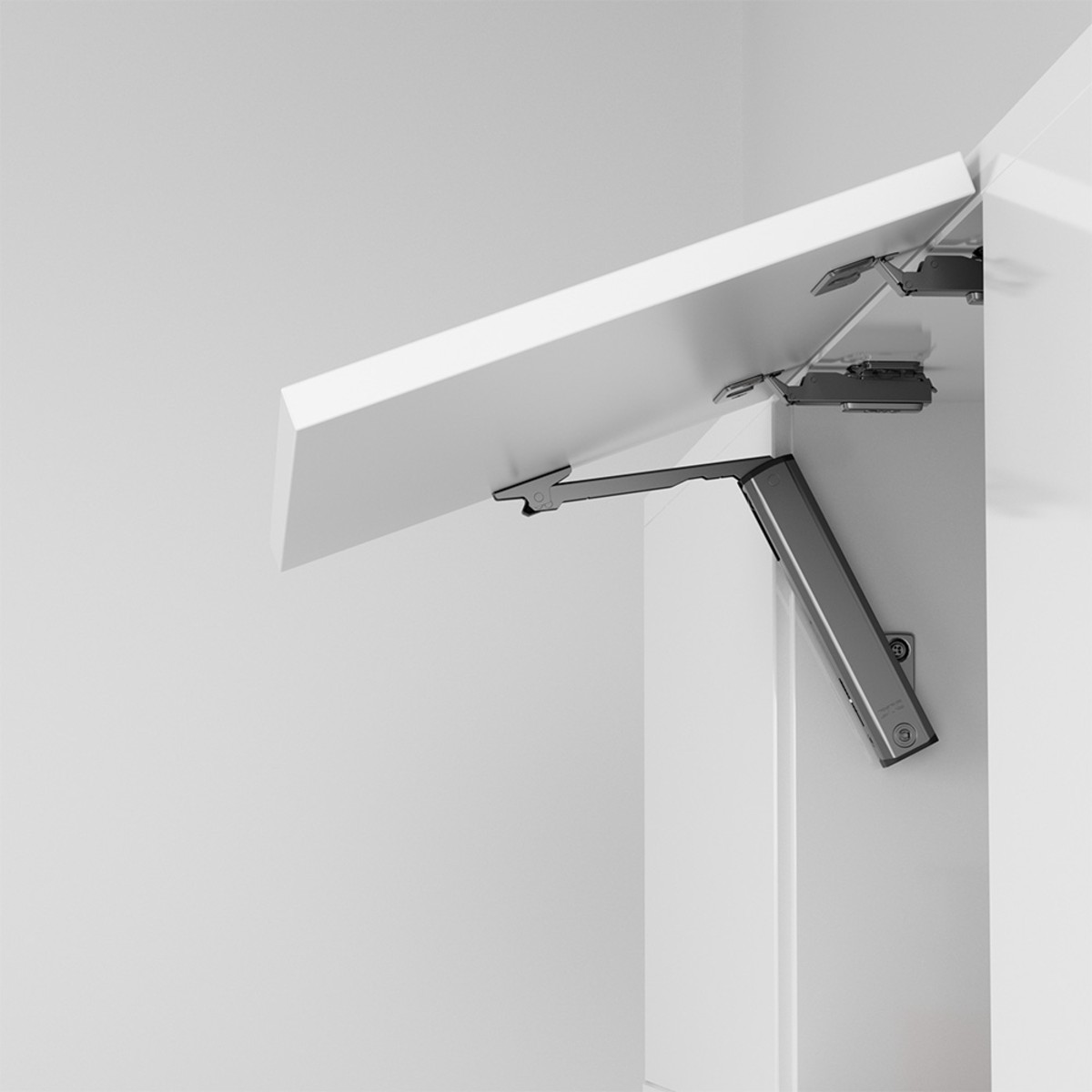

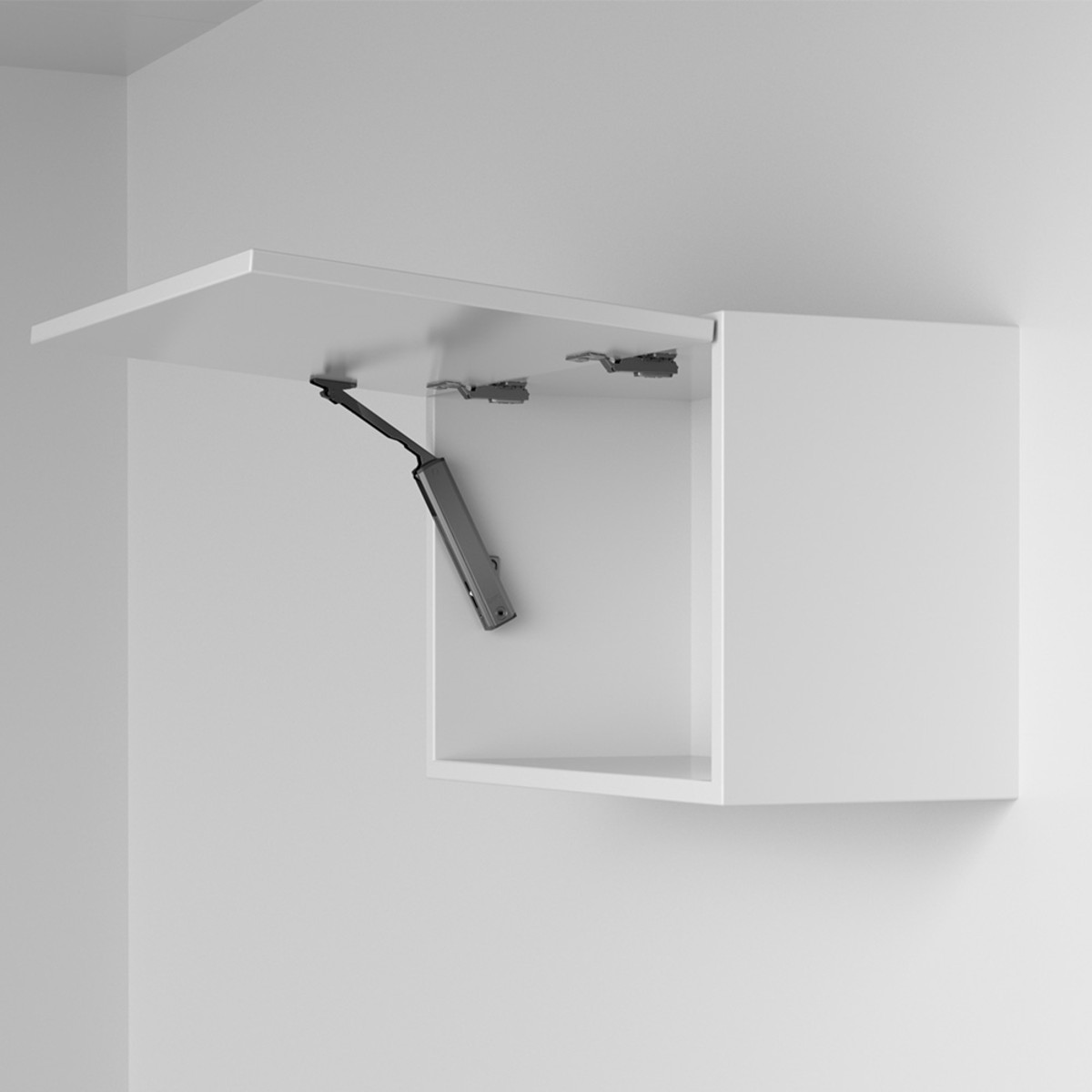

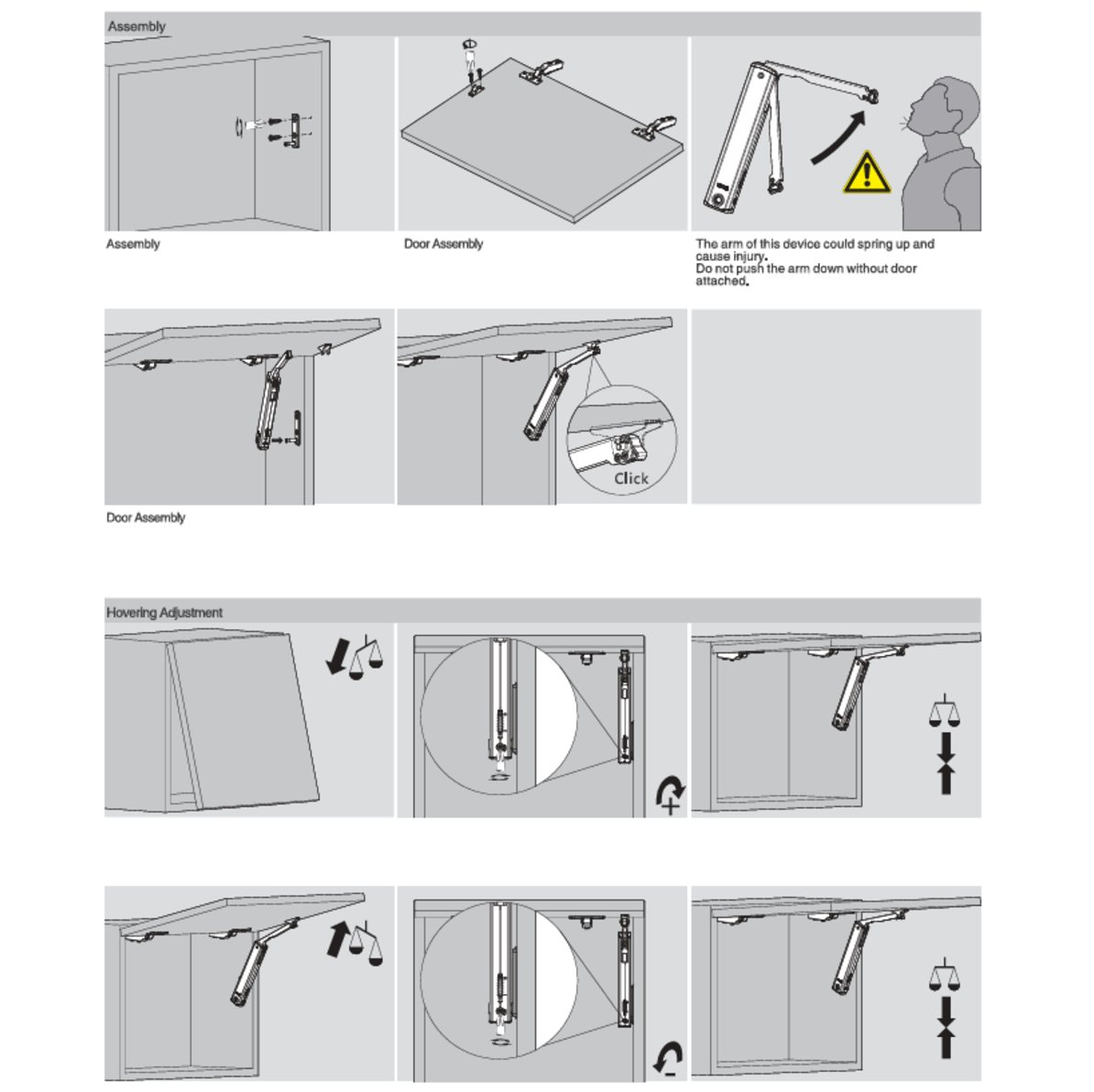

Transform your cabinet with the top stay SE lift system. This complete single set provides excellent power, durability, and functionality for various cabinet designs. The lift mechanism comes with mounting plate to ensure smooth and reliable installation to the cabinet and cabinet front, making this system an ideal solution for modern and versatile cabinet applications.
- Range: Top Stay
- Sold individually
- Made out of steel
- Opening angle: 105°
- Finish: nickel plated
- Fixing type: screw-on
- Power factor: 200-2350

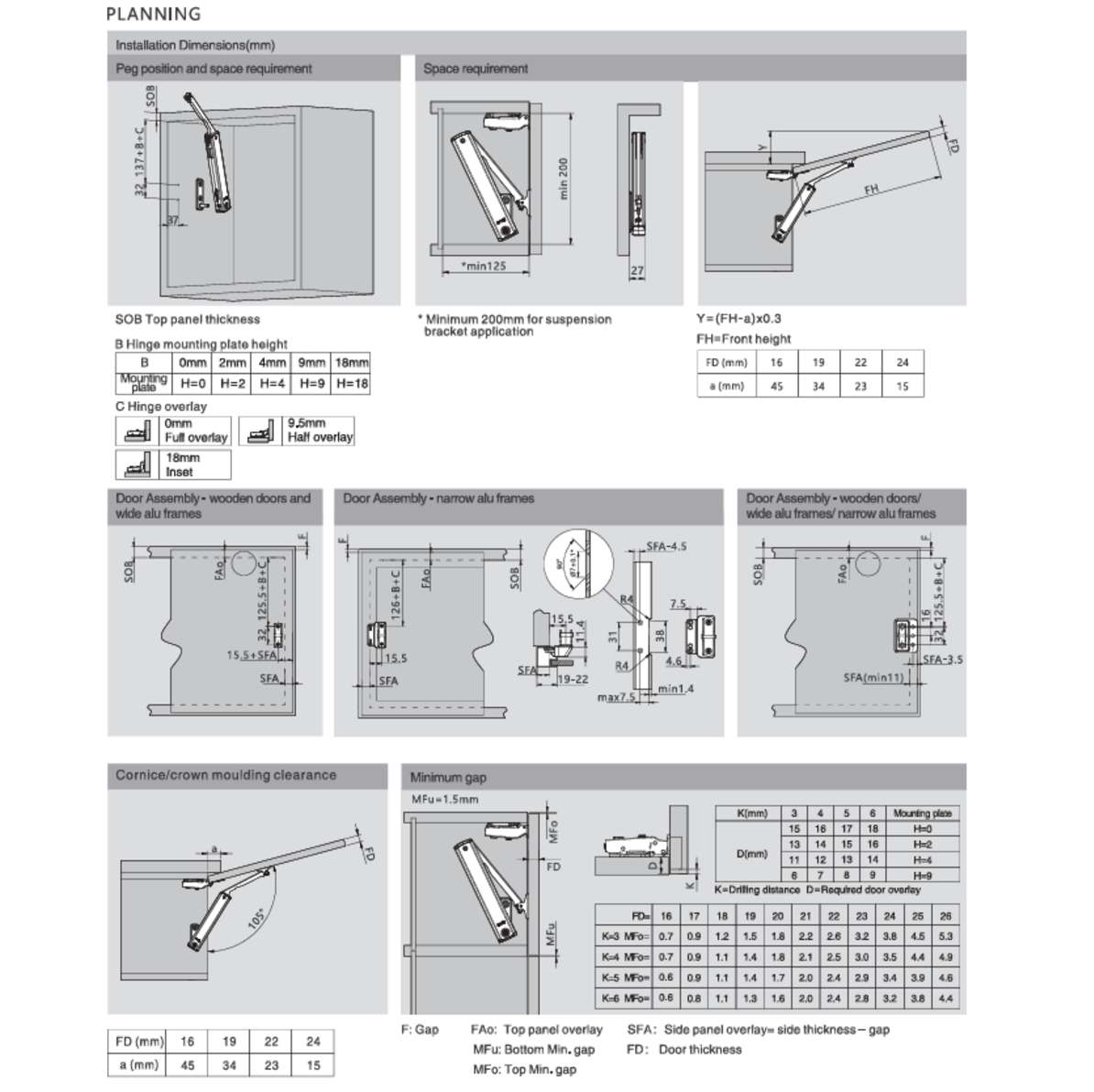

- Suitable for cabinet heights: 240-600mm
- Minimum internal cabinet depth: 125mm
- Minimum internal cabinet height: 200mm
- Maximum external cabinet width: 1800mm

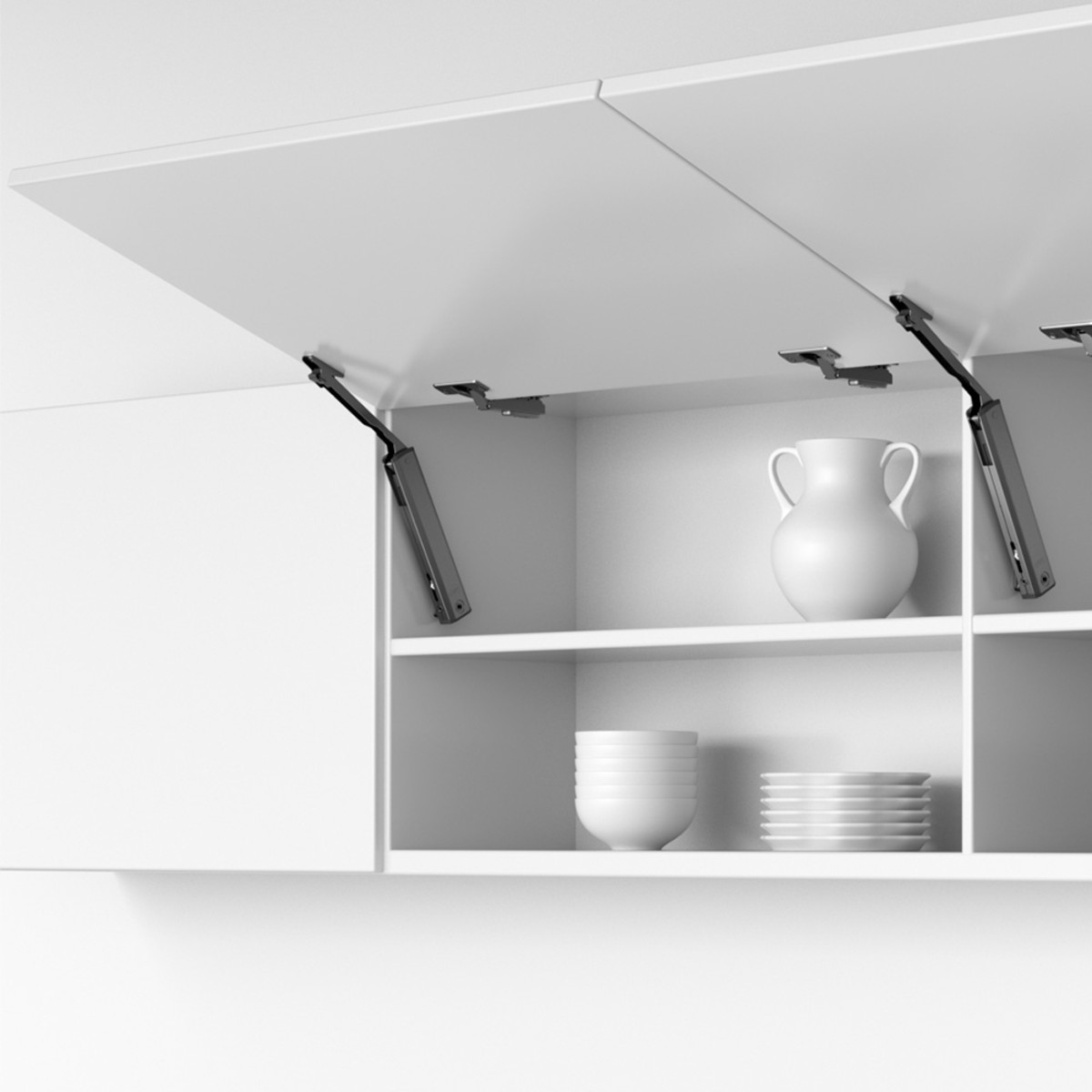

- The power factor can be doubled when a second lift mechanism is used
- Contents of the set:
- 4 x woodscrews

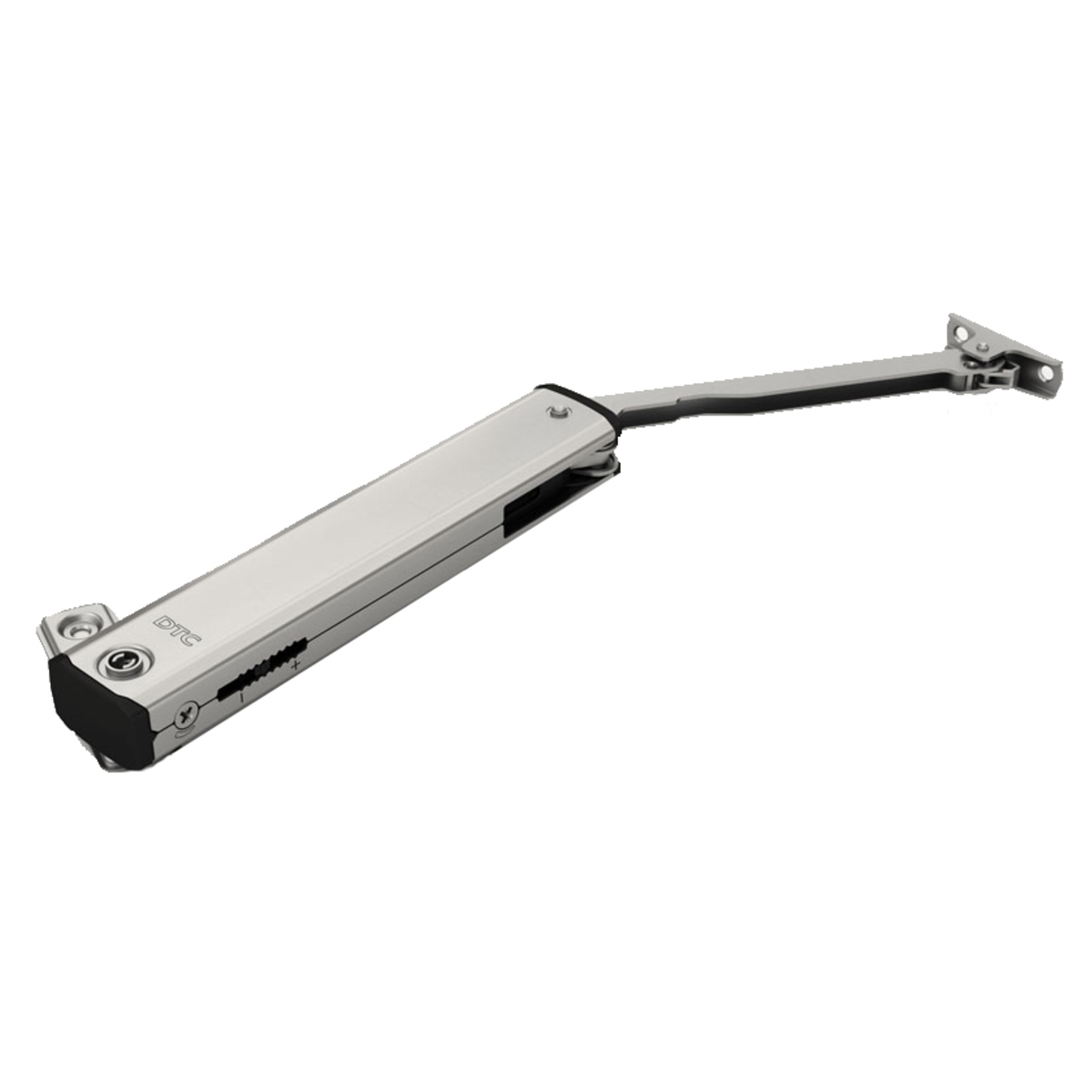

- 1 x lift mechanism
- 1 x mounting plate
- 1 x front fixing bracket
To work out the power factor please use the below formula:
- Cabinet height x ((weight of door (kg) + (2 x weight of handle kg))
Please note that:
- There is a lifetime warranty on this product
- Hinges and hinge mounting plates are sold separately
- This product can be used with soft close 110 degree hinges to allow it to be soft close
Power Factor:
200-1000
