All Sportub components are manufactured to en1527 standard. All tracks are coated with magnesium zinc (without chromium) to preserve all the qualities to all weather conditions. They have up to 800h resistance to salt spray and red rust.
- To fit 8570 track
- M16 fixing to fit trolley
- To suit door thickness of 55-75mm
- To fit trolley 0285, 0288s and 0285s
- Manufactured in Europe to EN1527 standard
- The individual weight of the product is 0,980kg
- Trolley mounting bracket to be screwed on both sides of door

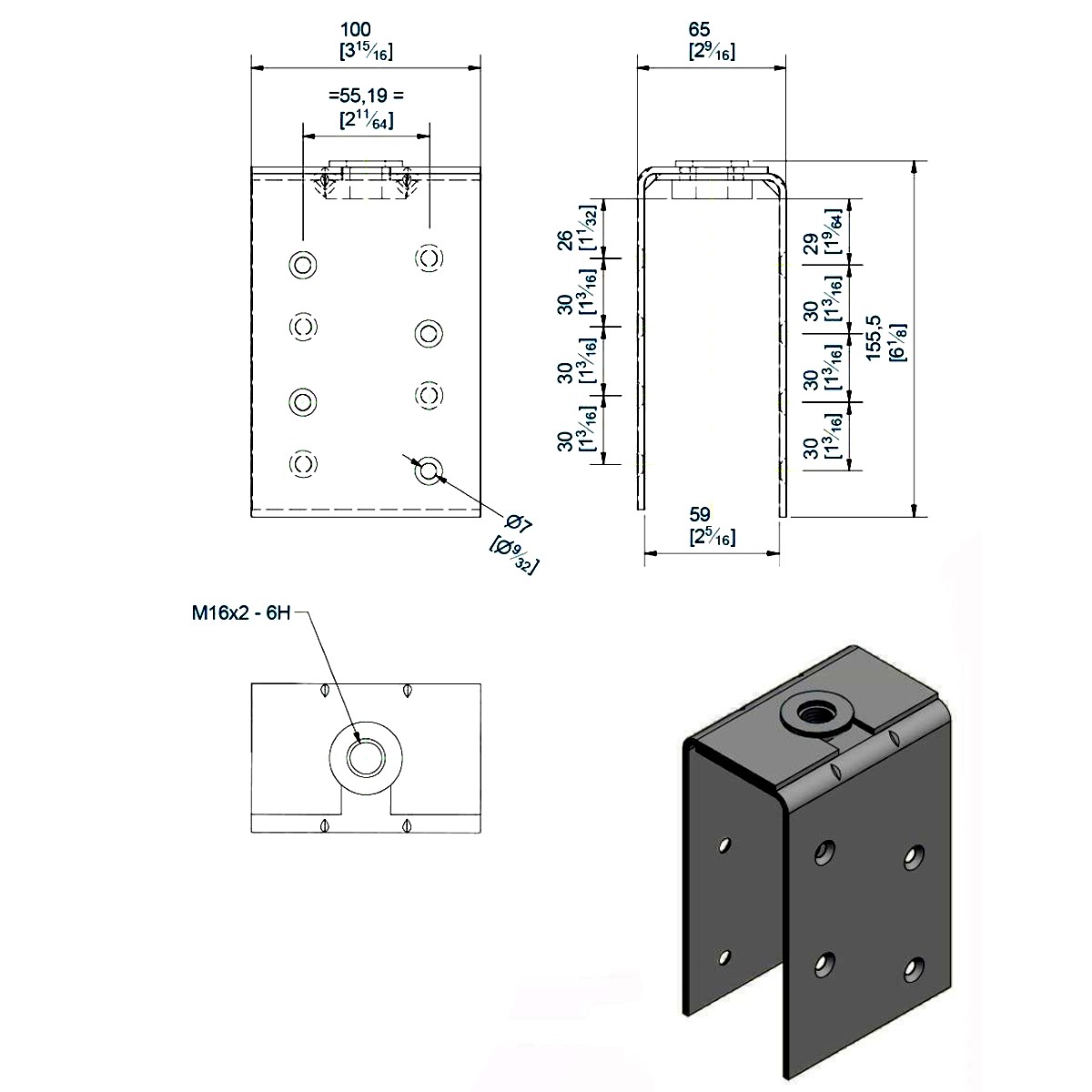

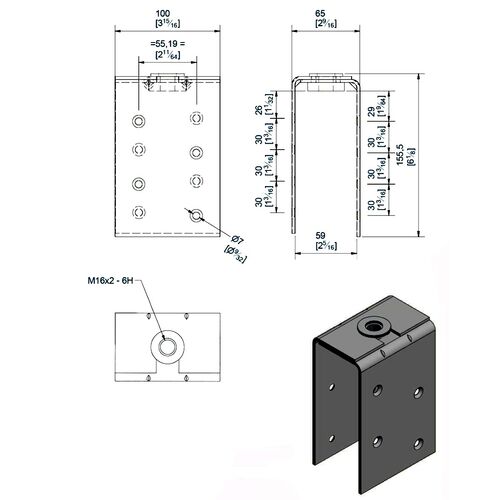

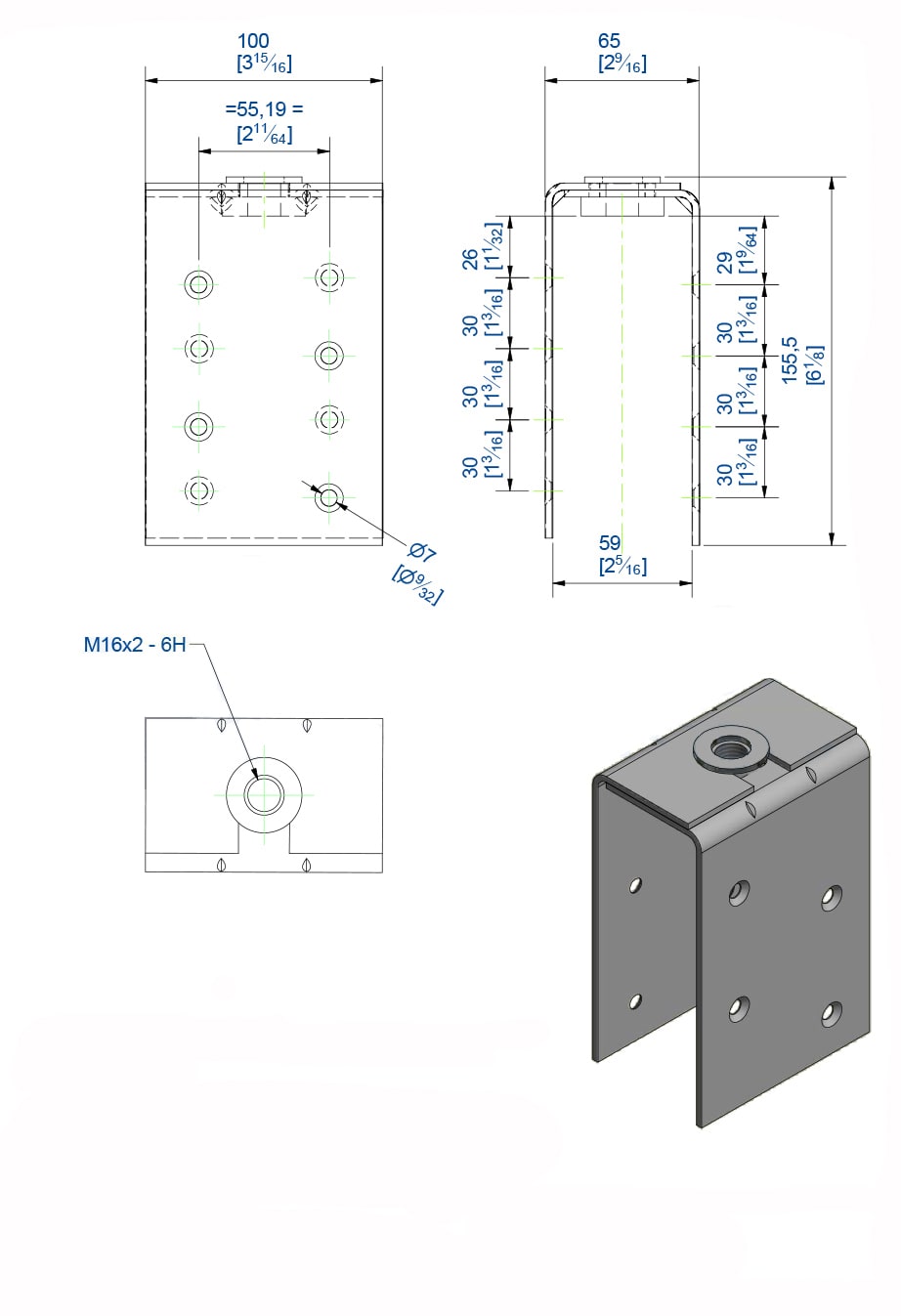

- All technical drawings and dwg models are available in 'technical docs' tab
