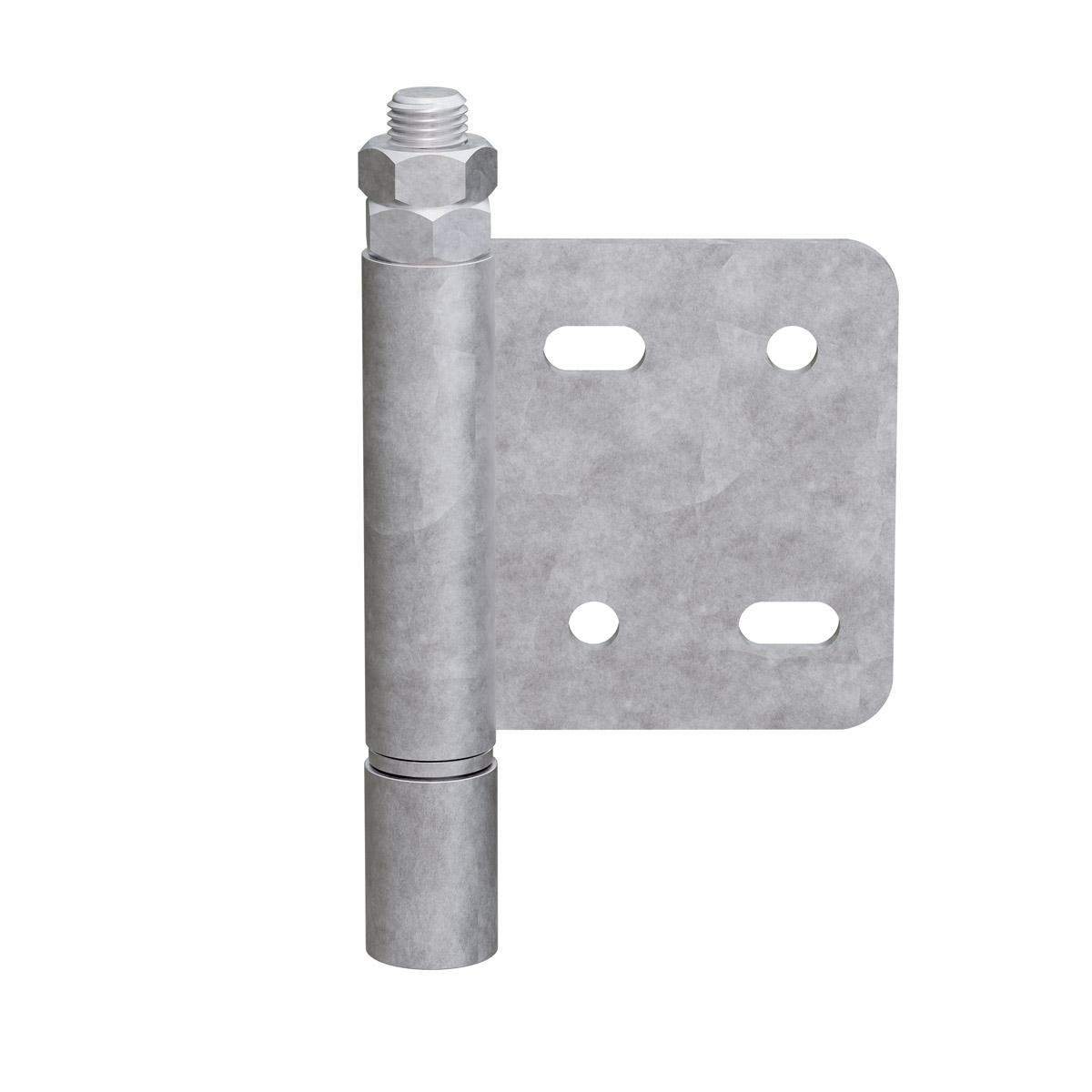

U-19 Bottom End Guide For Curved/Folding Systems

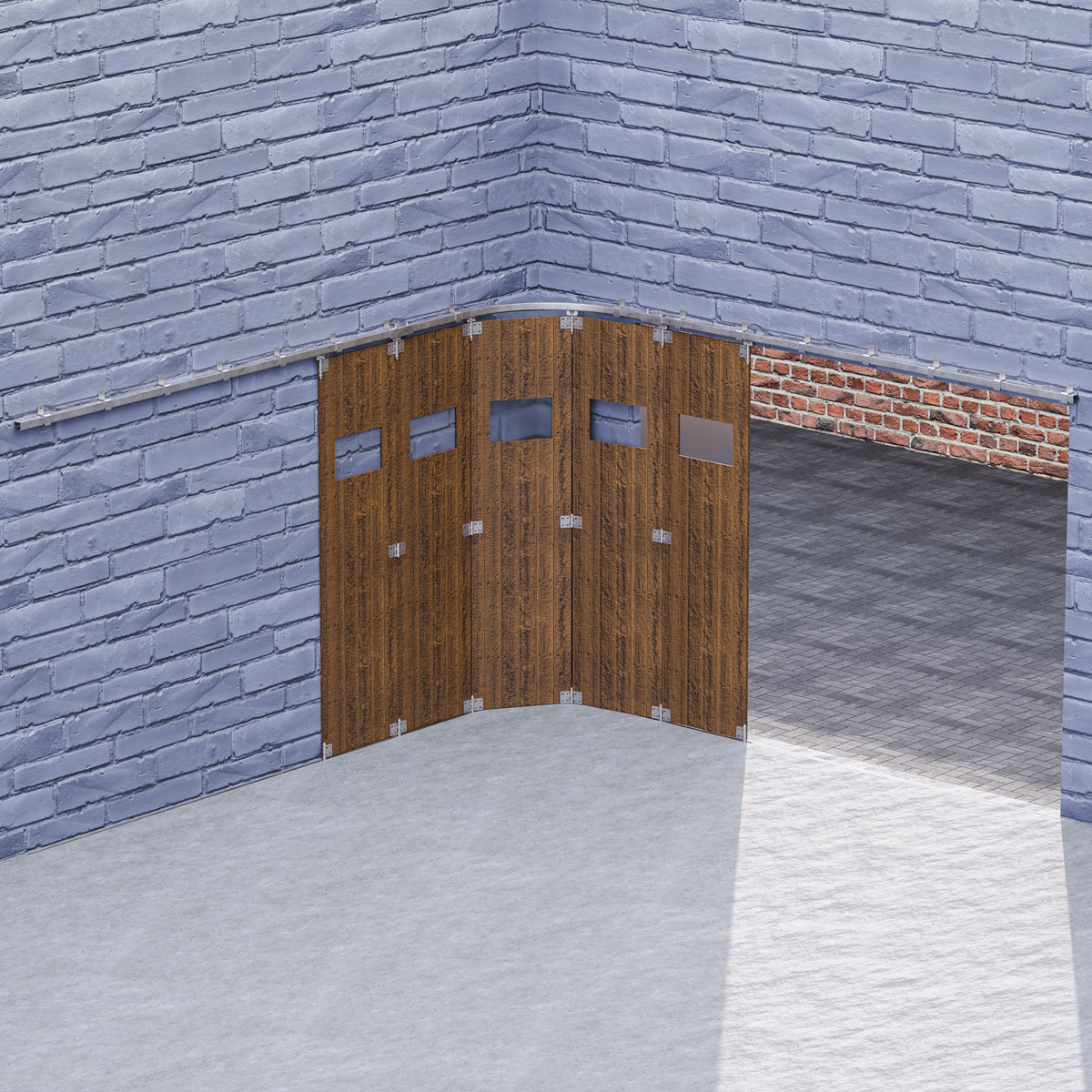

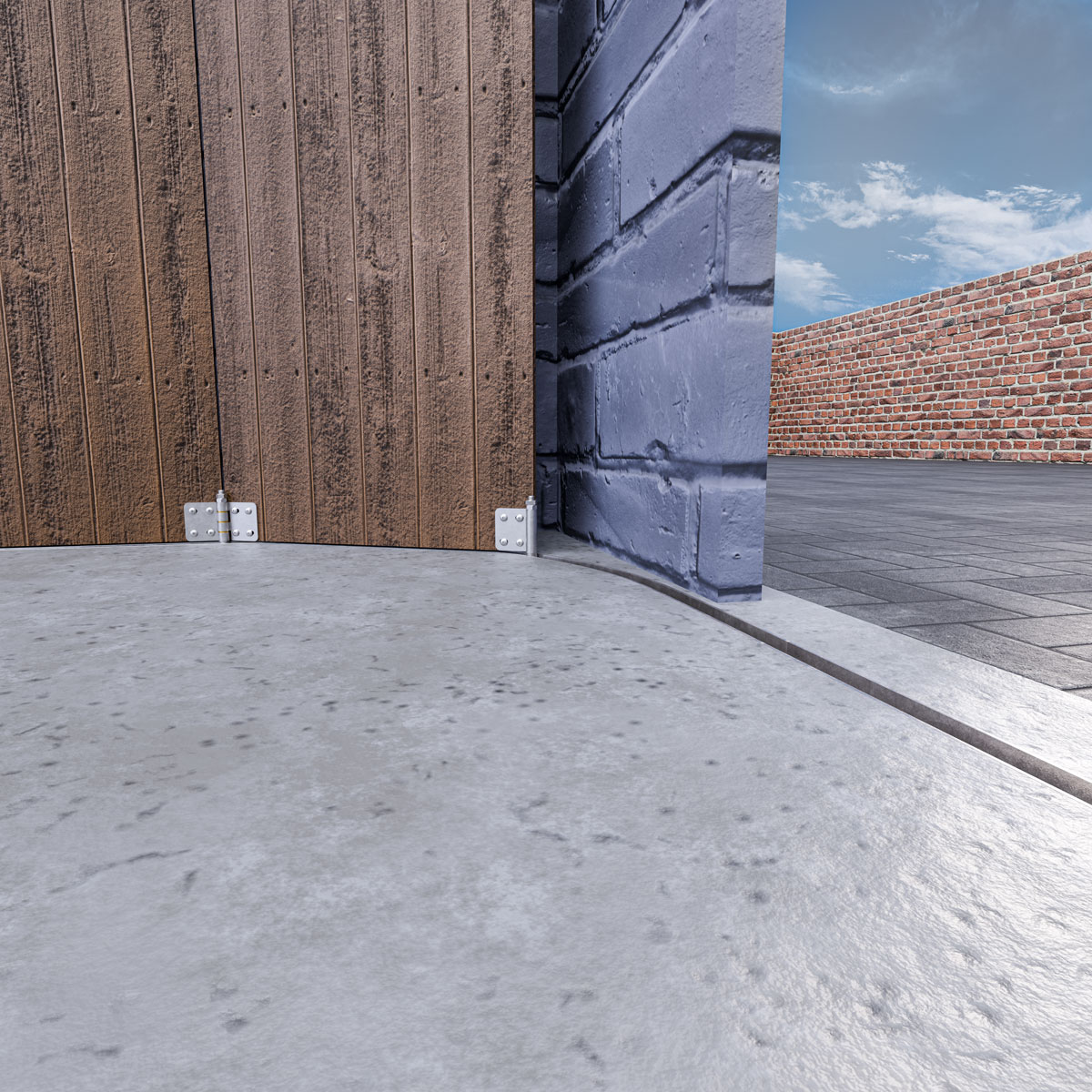

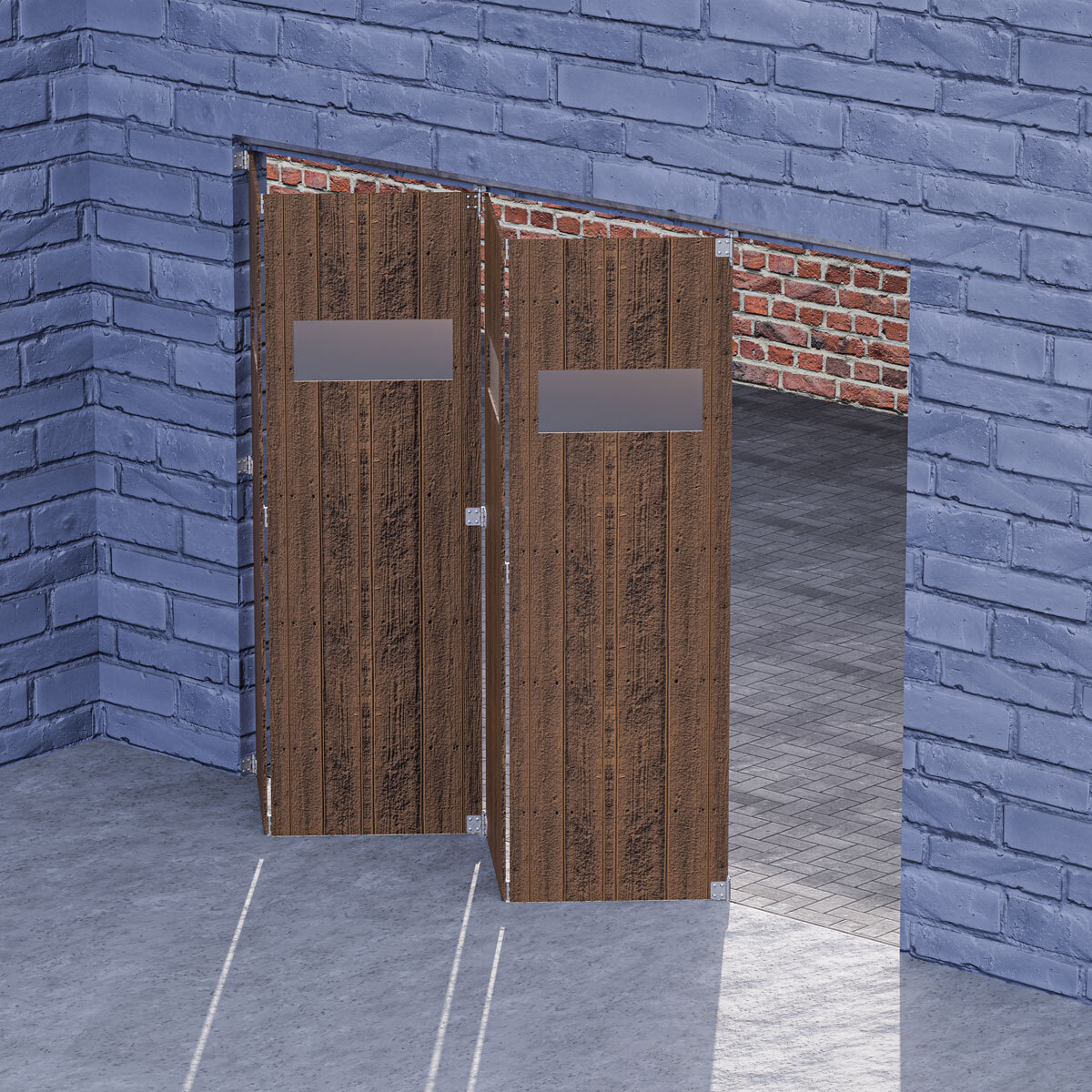

U-19 bottom end guide for curved/folding industrial sliding track systems for commercial and agricultural applications. Perfect for enabling doors to either slide round a corner or fold to one side. Created for curved and folding sliding systems designed to function by sliding along the U-19 bottom track. This guide has one hinge to screw to the last door of a curved/folding system.

• M12 bolt
• Suitable for outdoor and indoor use
• Manufactured with DD11 zink plated steel
• To work with 50/75/100/150/200kg folding/curved systems
• All compatible components are available in related products below

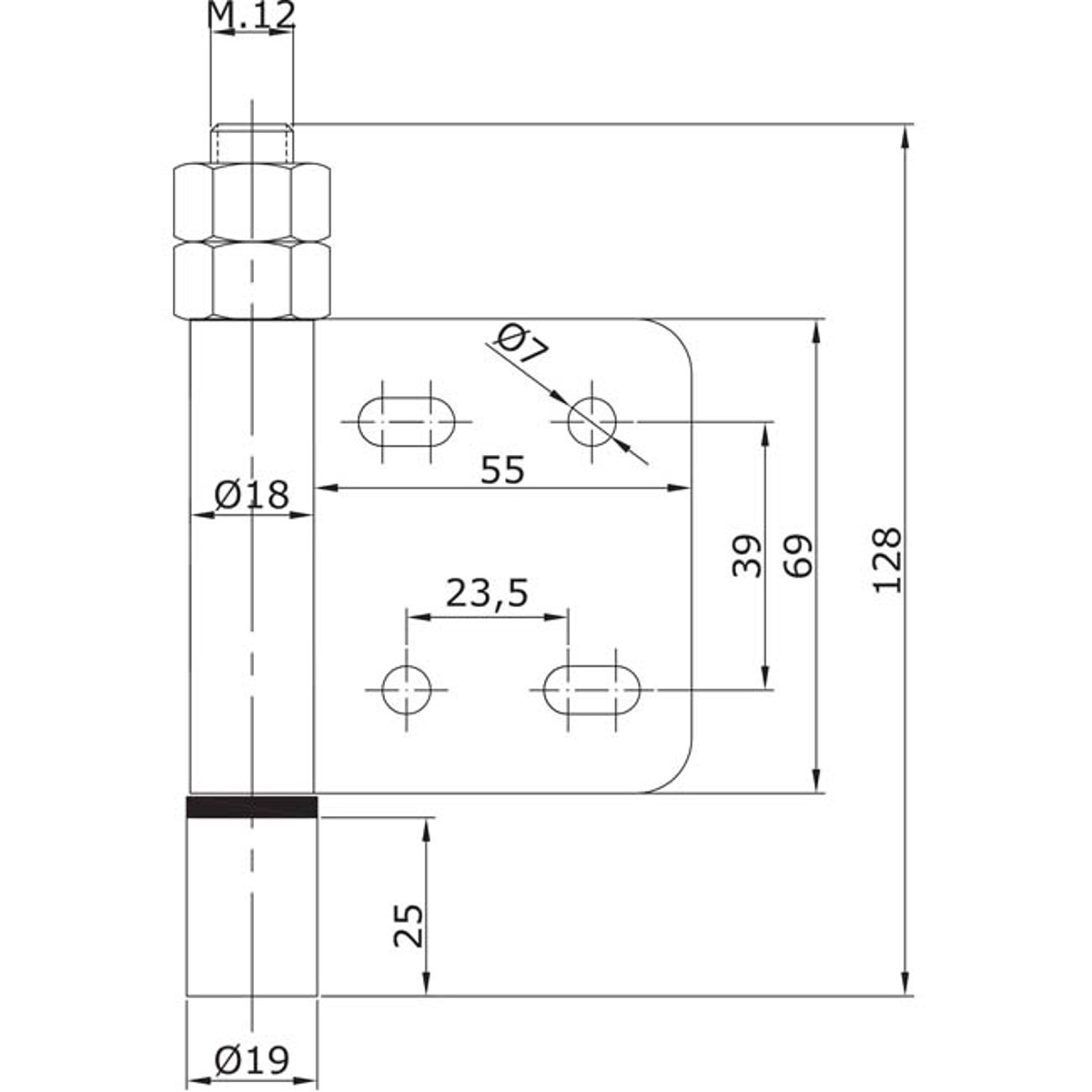

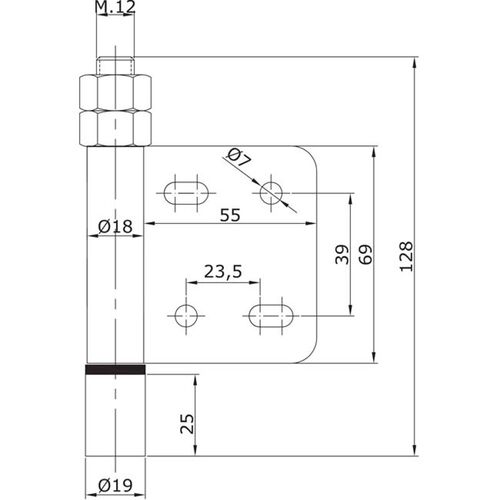

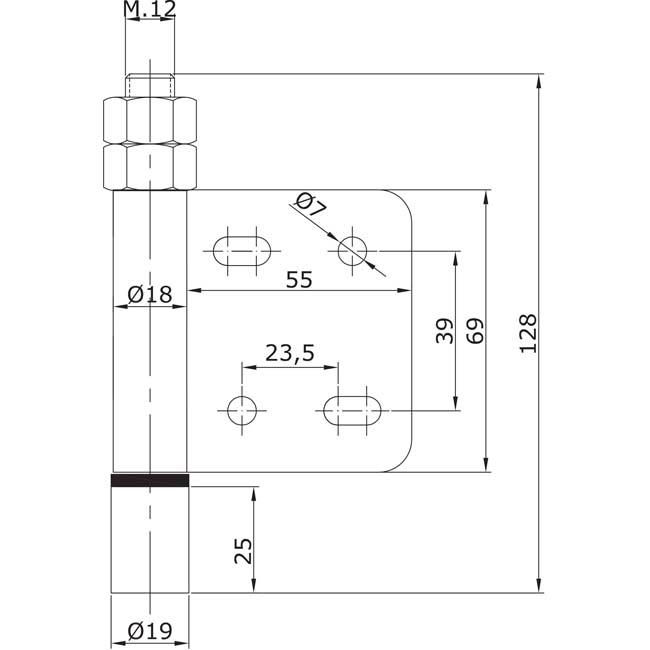

• Dimensions
  • Plate height: 69mm
  • Plate width: 55mm
  • Plate thickness: 3mm
  • Overall height: 128mm
  • Overall width: 74mm
