U-19 Bottom Guide

Name: U-19 Bottom Guide
Brand: Estebro
SKU: 4843-001
Price: 3.12 GBP
Availability: InStock

Part no: 4843-001

Price: £3.12inc VAT

Quantity:

− +

Link for quick purchase

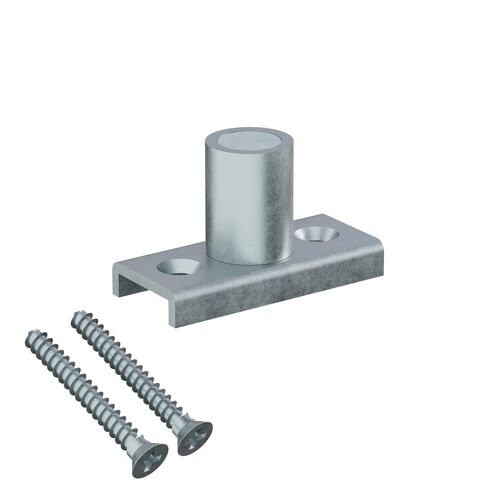

Zinc-plated bottom guide for U-19 bottom channel for commercial and agricultural applications. Suitable for outdoor and indoor use.

Works with all U-19 tracks
Mounts on the bottom edge of the door
Manufactured with high-quality DD11 and 11SMn30 steel
Compatible with 50/75/100/150/200kg folding/curved/accordion systems
Combined with the U-19 bottom channel keeps the door stable and in-line when sliding

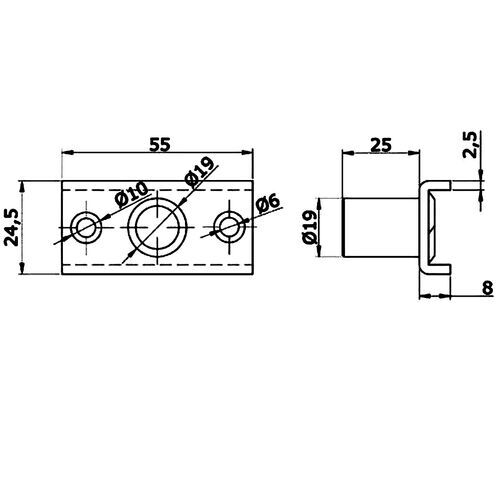

Dimensions:
- Width: 55mm
- Depth: 24.5mm
- Height: 35mm
