U-40 Steel/Nylon Hinge Trolley For Curved Systems 75kg

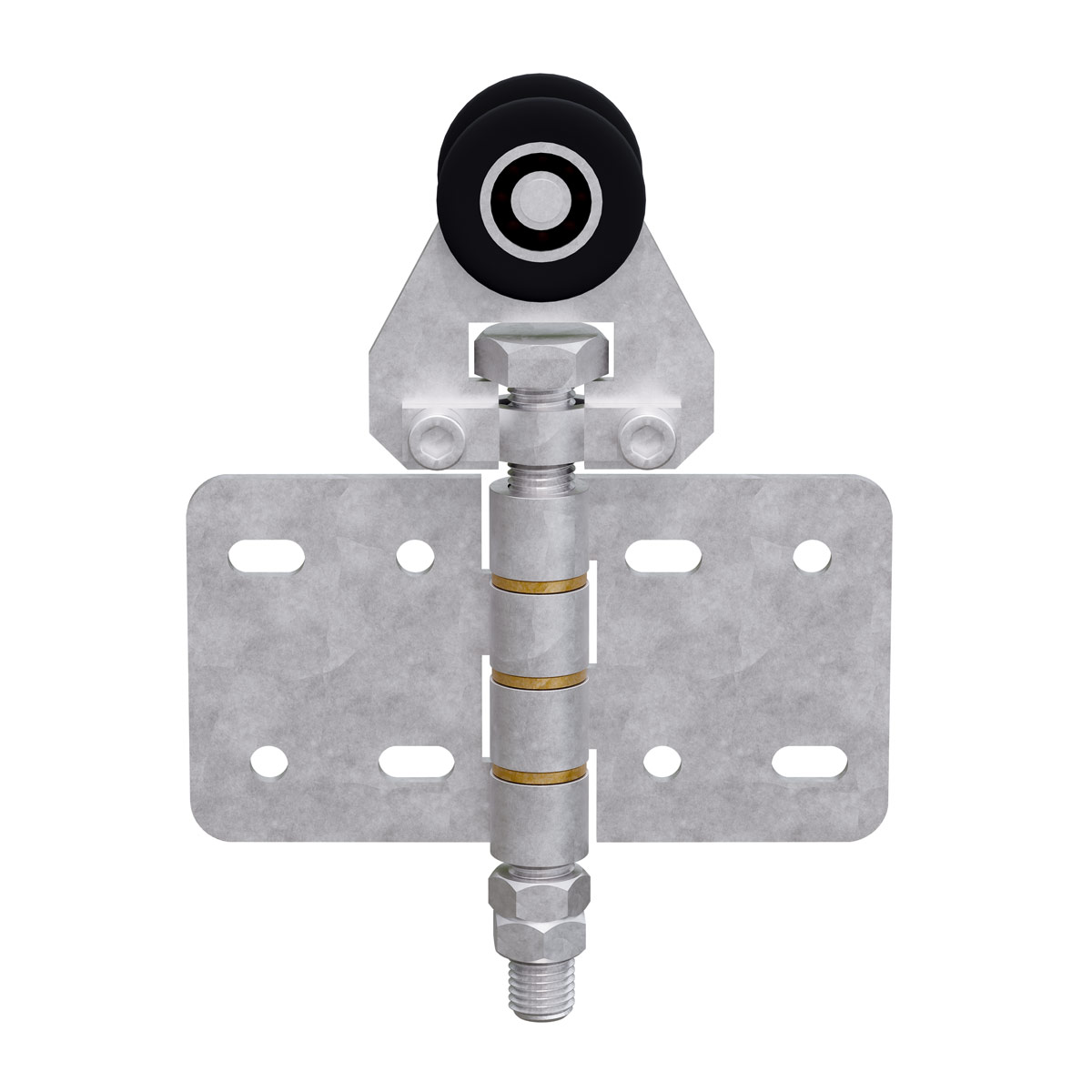

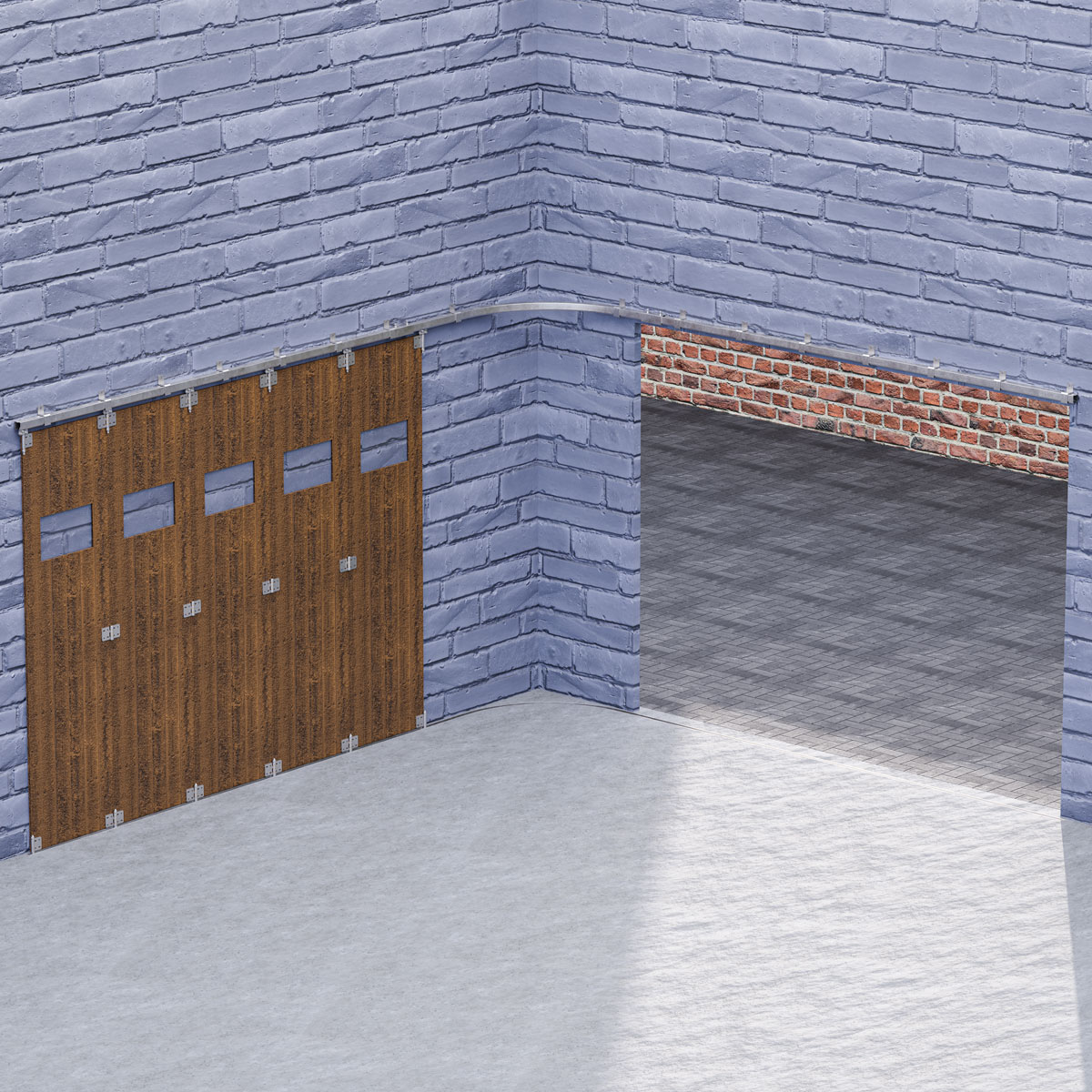

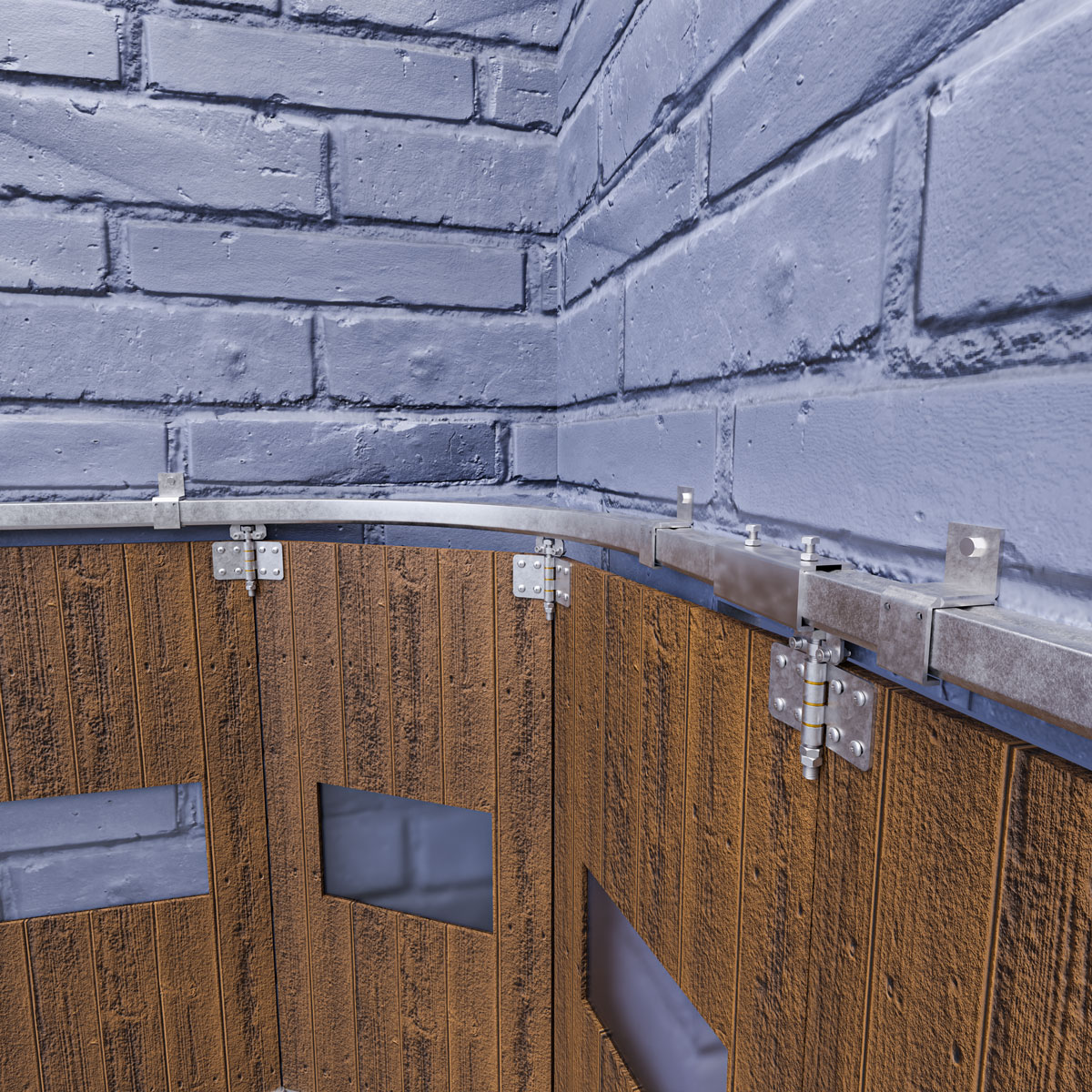

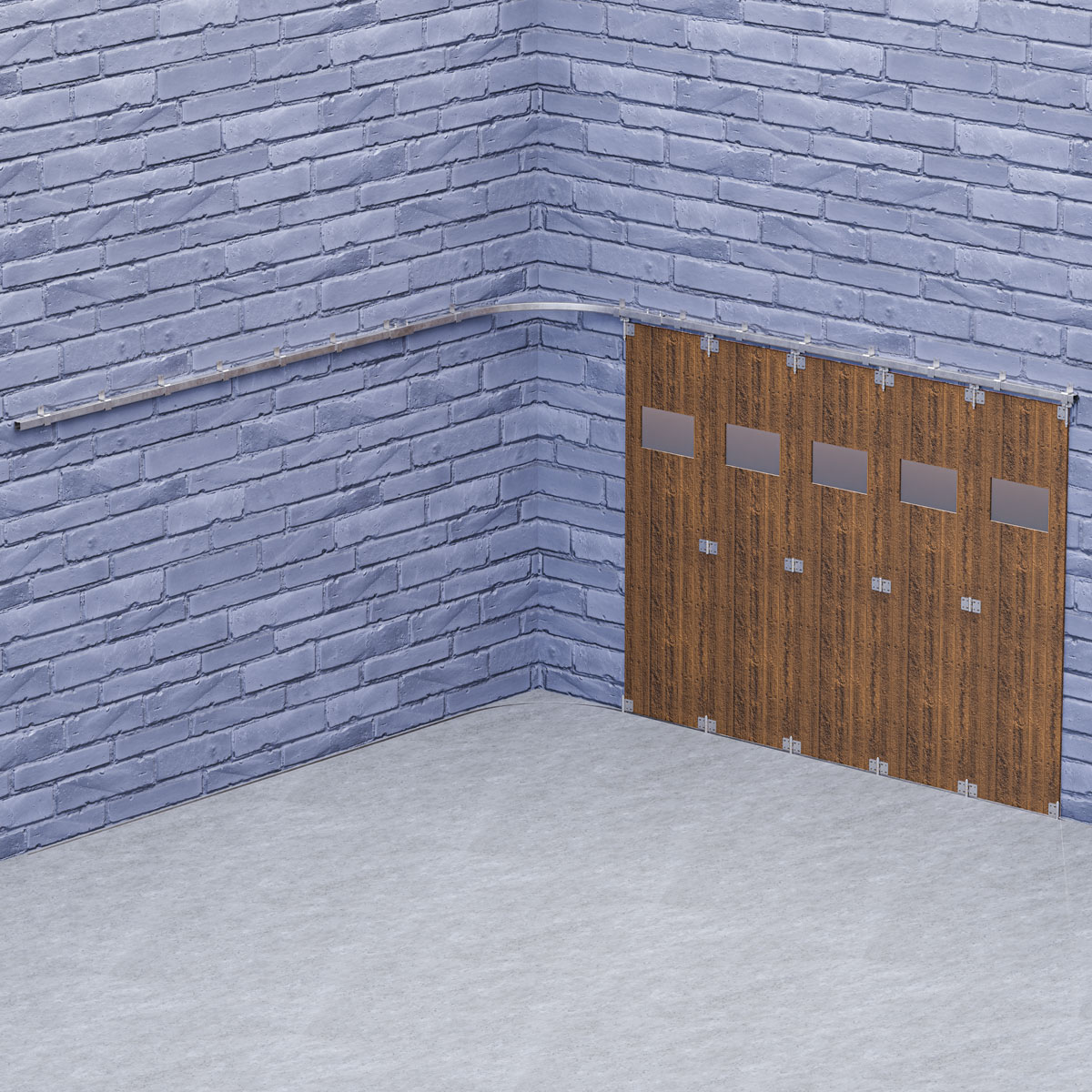

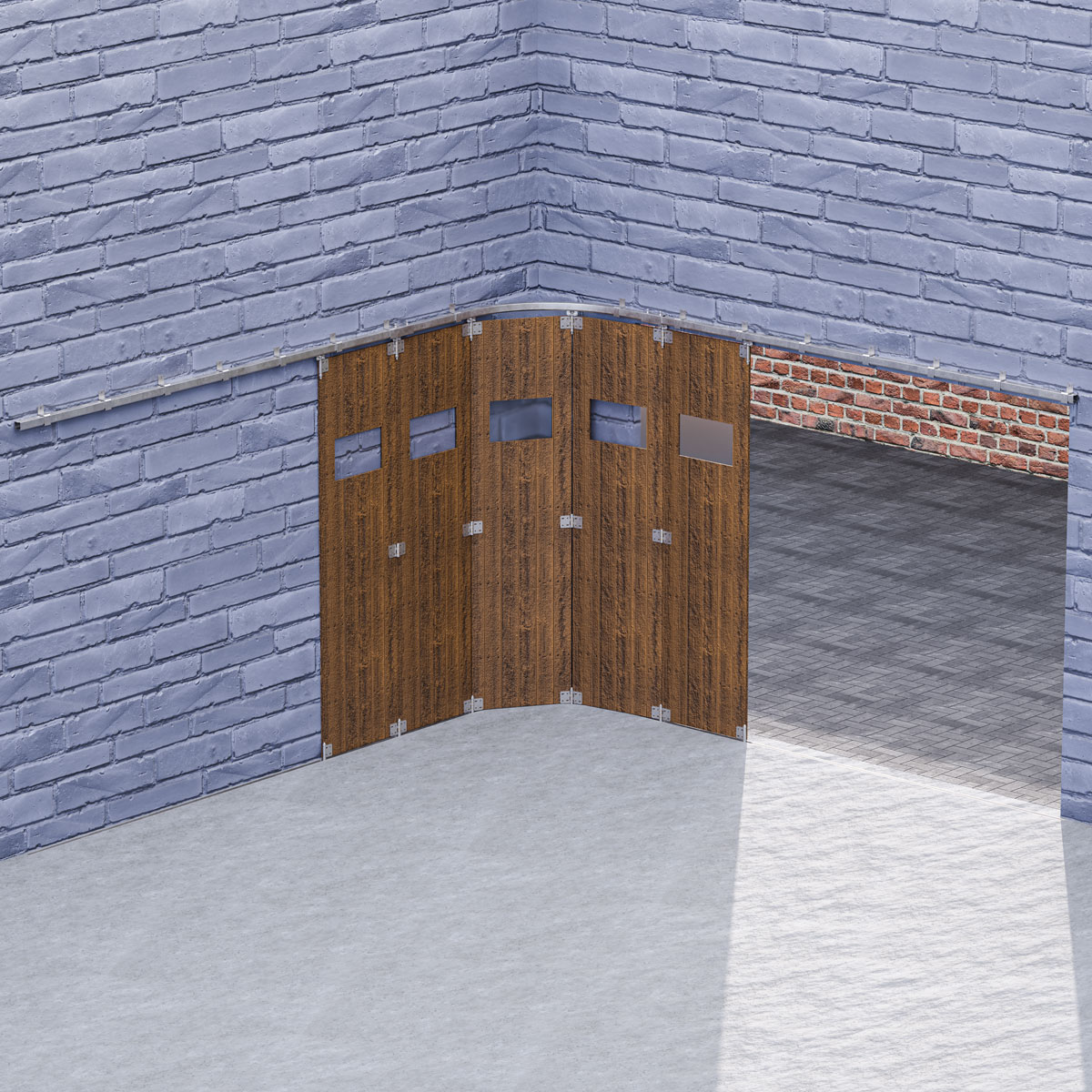

The u-40 steel/nylon middle hinge trolley for curved industrial sliding track systems for commercial and agricultural applications. This trolley slides into the u-40 top track and is screwed into the door panels which enables them to slide and fold. Perfect for enabling doors to slide round a corner. Designed with 2 nylon wheels and 1 middle hinge allocated in the screw of the trolley. The hinge plates would be screwed to both door panels by screwing each leaf of the hinge, which permits the folding and swinging movement for sliding curved systems.

• M12 bolt
• To work with 75kg curved systems
• Suitable for outdoor and indoor use
• Manufactured with DD11 zink plated steel
• All compatible components are available in related products below

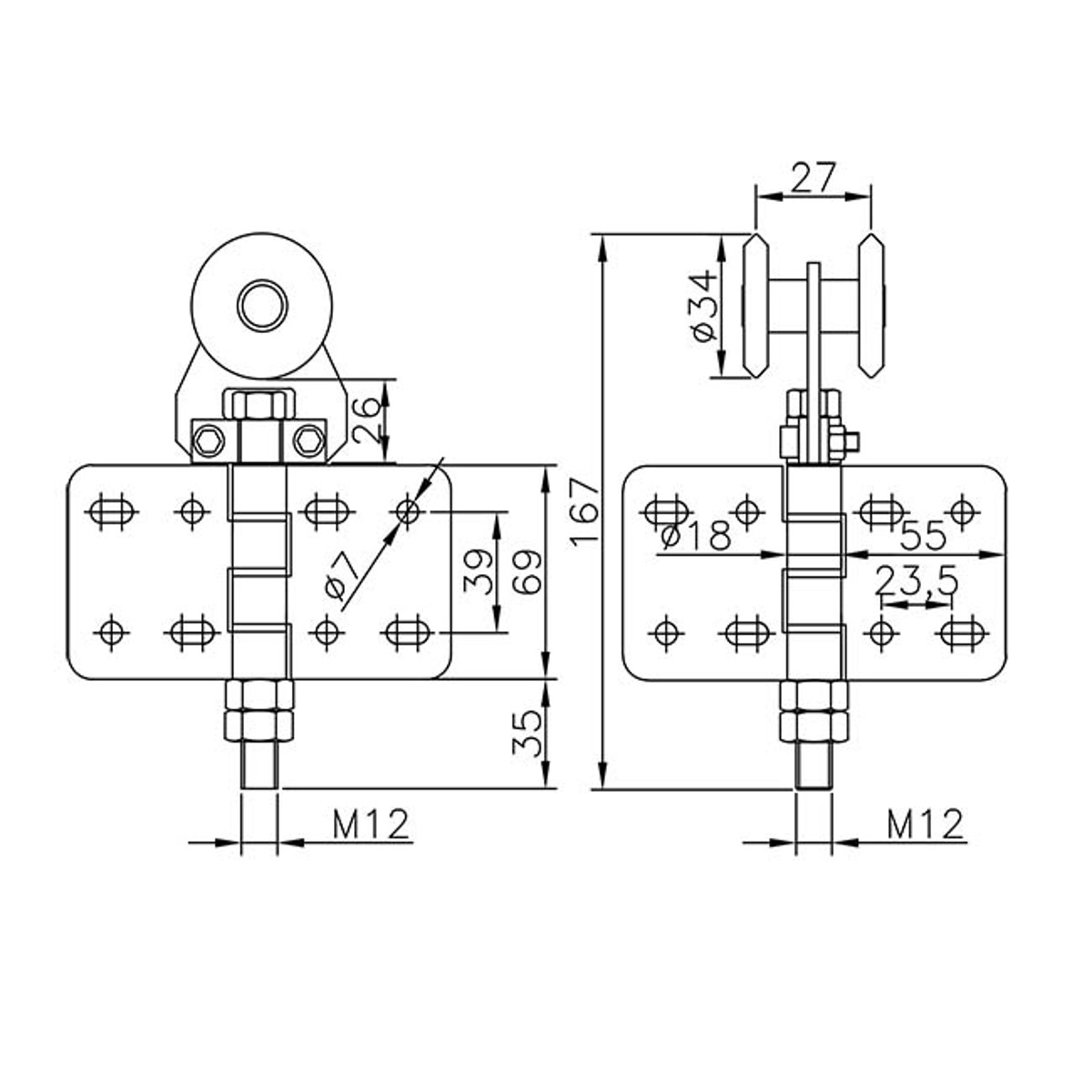

• Dimensions
  • Plate height: 69mm
  • Plate width: 55mm
  • Plate thickness: 3mm
  • Overall height: 167mm
  • Overall width: 128mm

Please note that:

• If you need any assistance in building an order or what parts work with each other, please do not hesitate to contact us, either via our phone line, live chat, or our contact us page.
