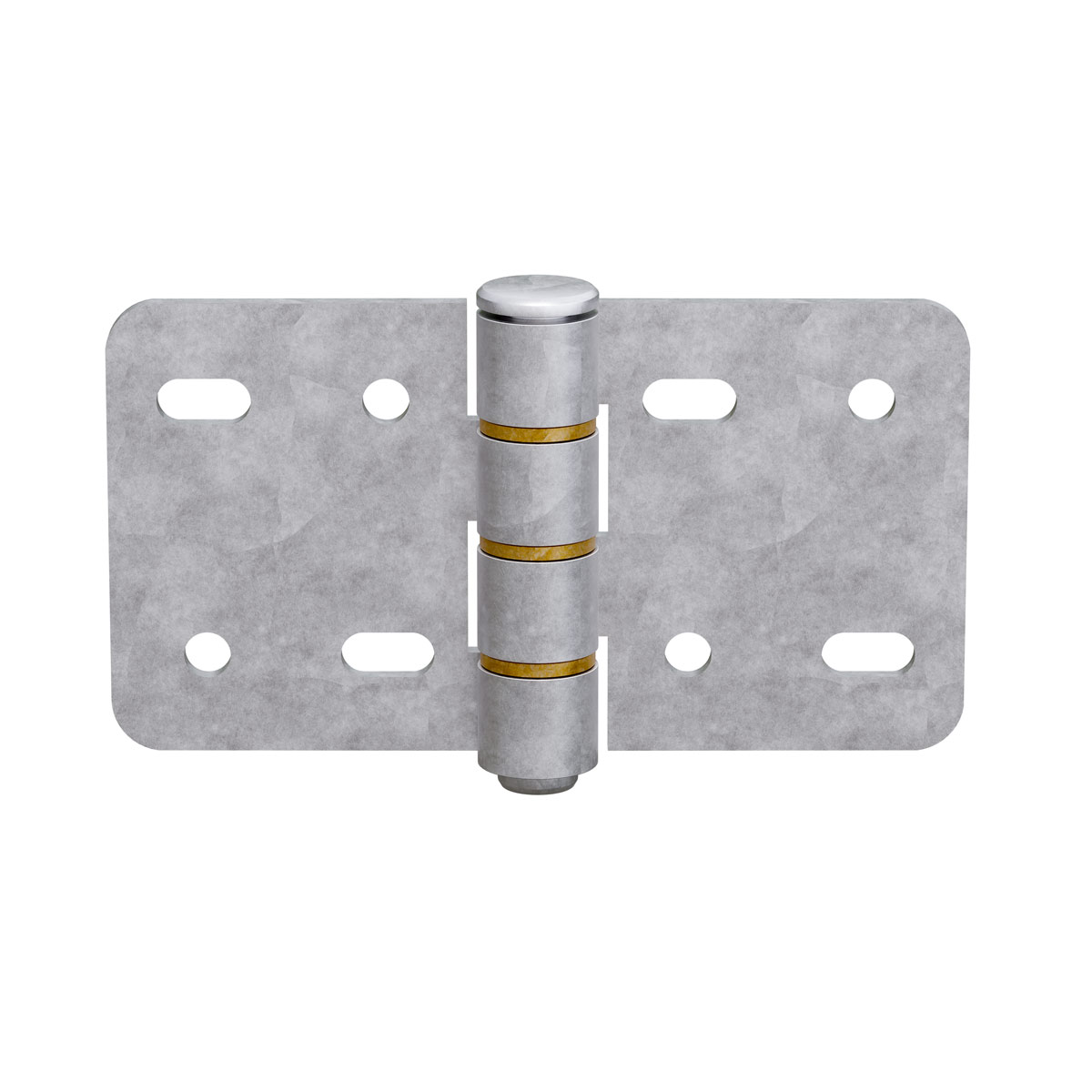

U-40 / U-60 Middle Hinge For Curved/Folding/Accordion Systems

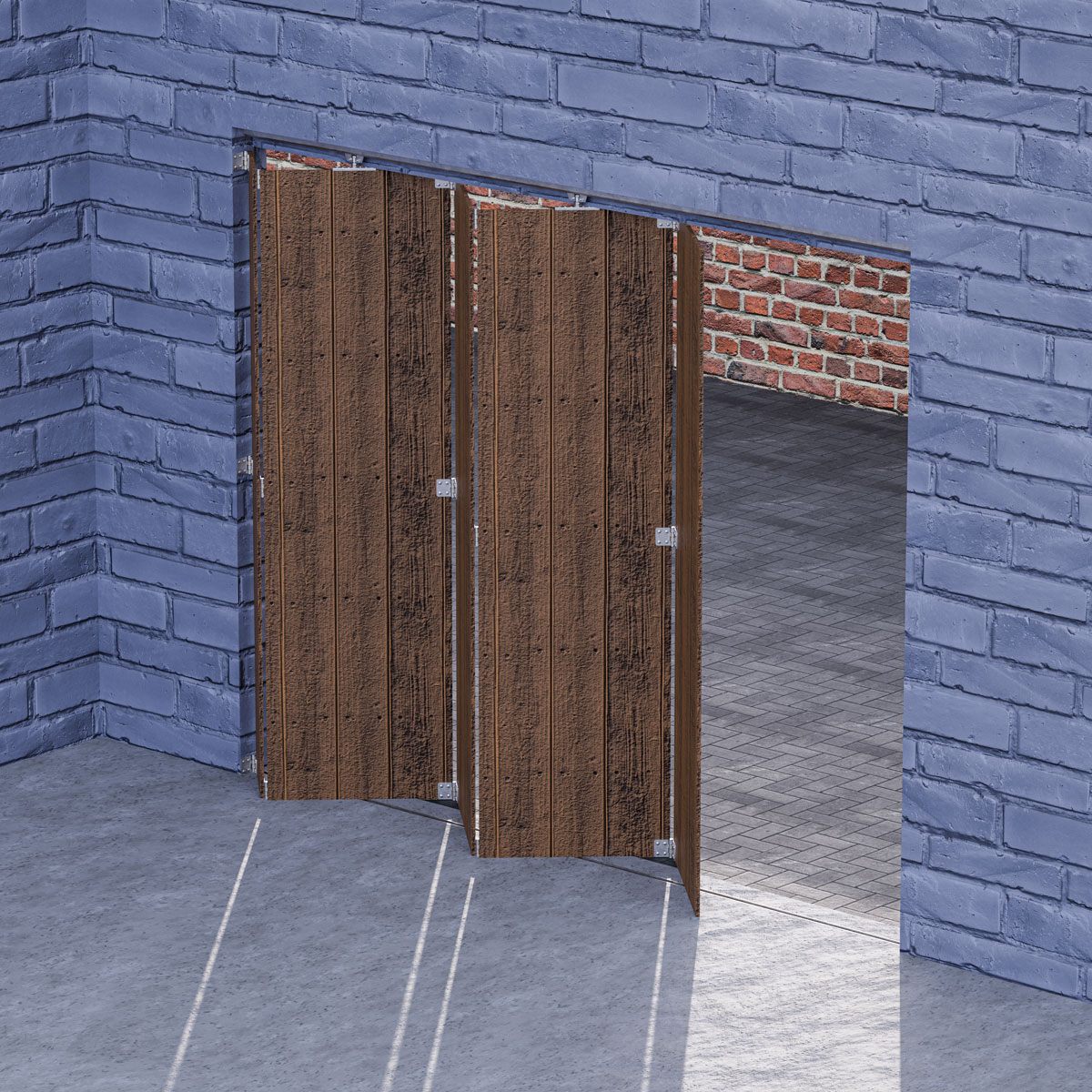

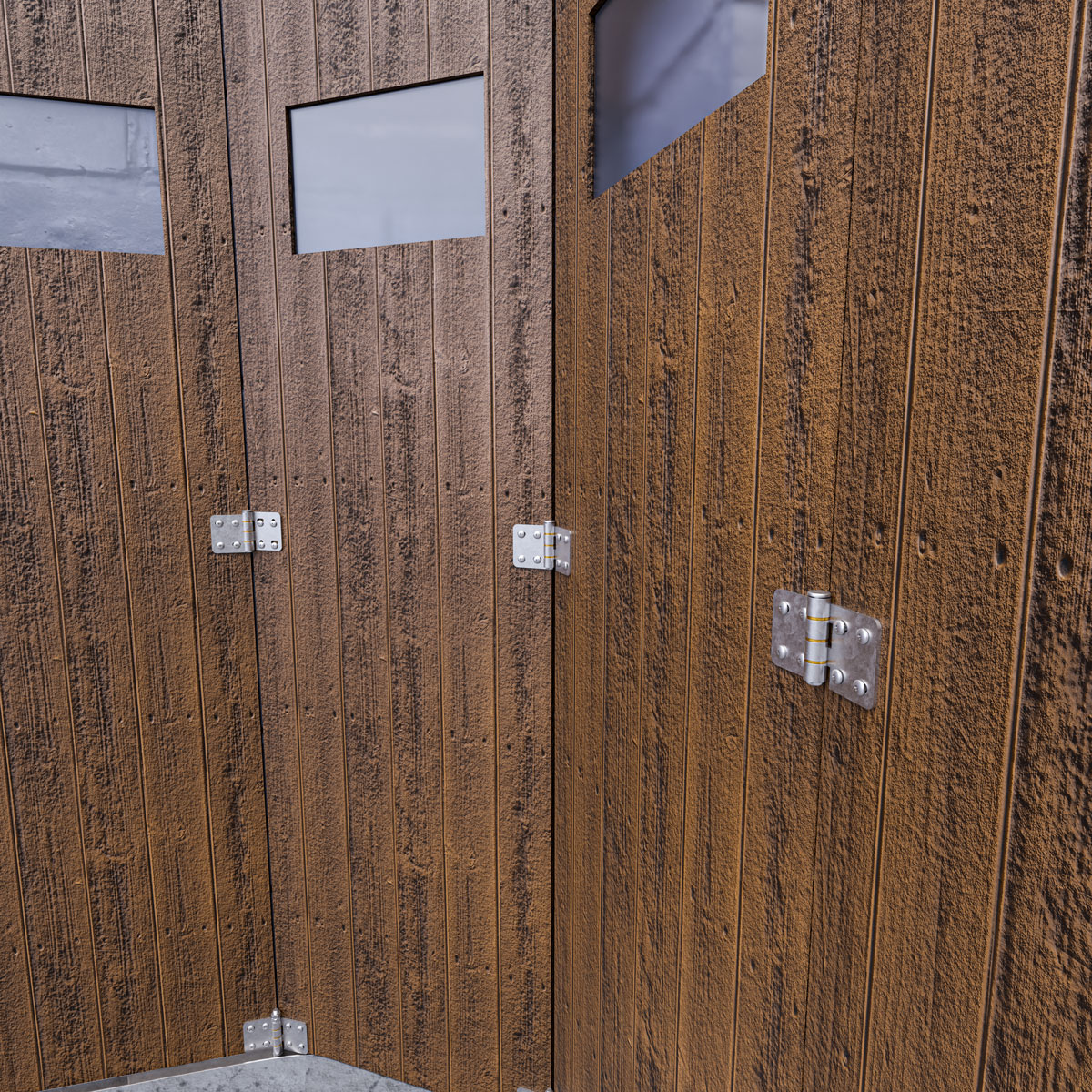

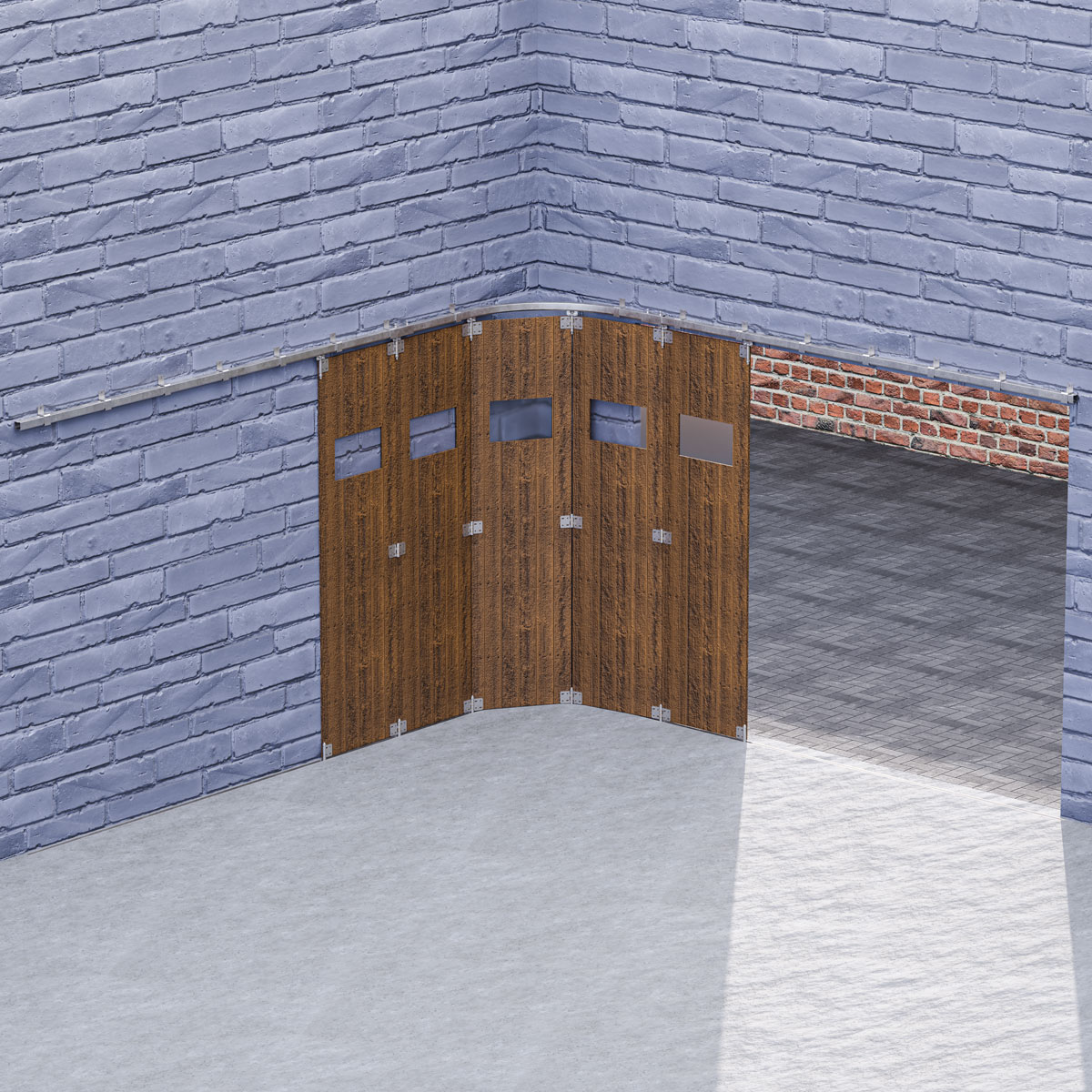

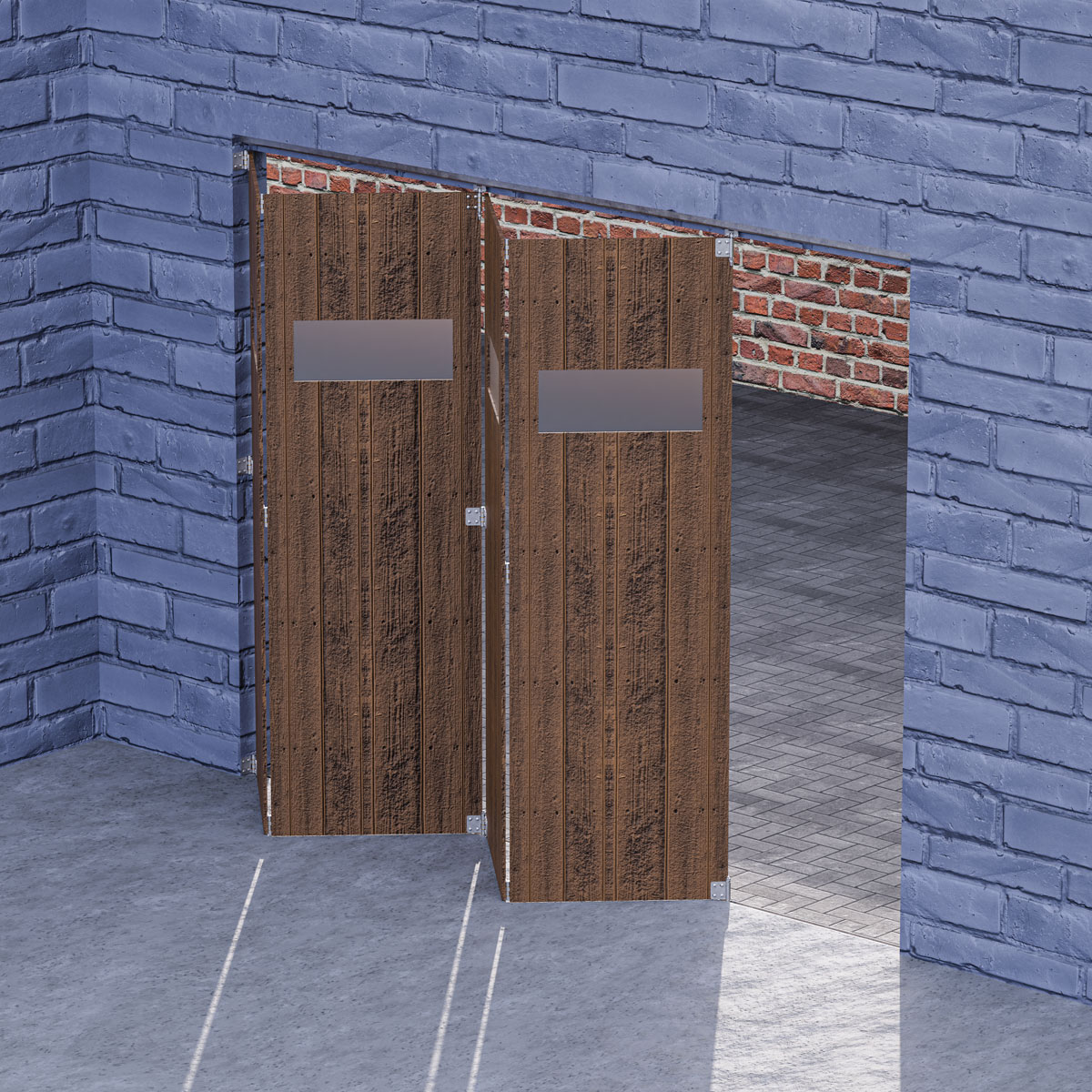

Middle hinge for curved/folding/accordion industrial sliding track systems for commercial and agricultural applications. Perfect for enabling doors to either slide round a corner or fold to one side. This hinge is screwed to the sliding door panels with the objective to ease the folding movement between the folding door panels.

• 12mm axle
• Suitable for outdoor and indoor use
• Manufactured with DD11 zink plated steel
• All compatible components are available in related products below
• To work with 50/75/100/150/200kg folding/curved/accordion systems

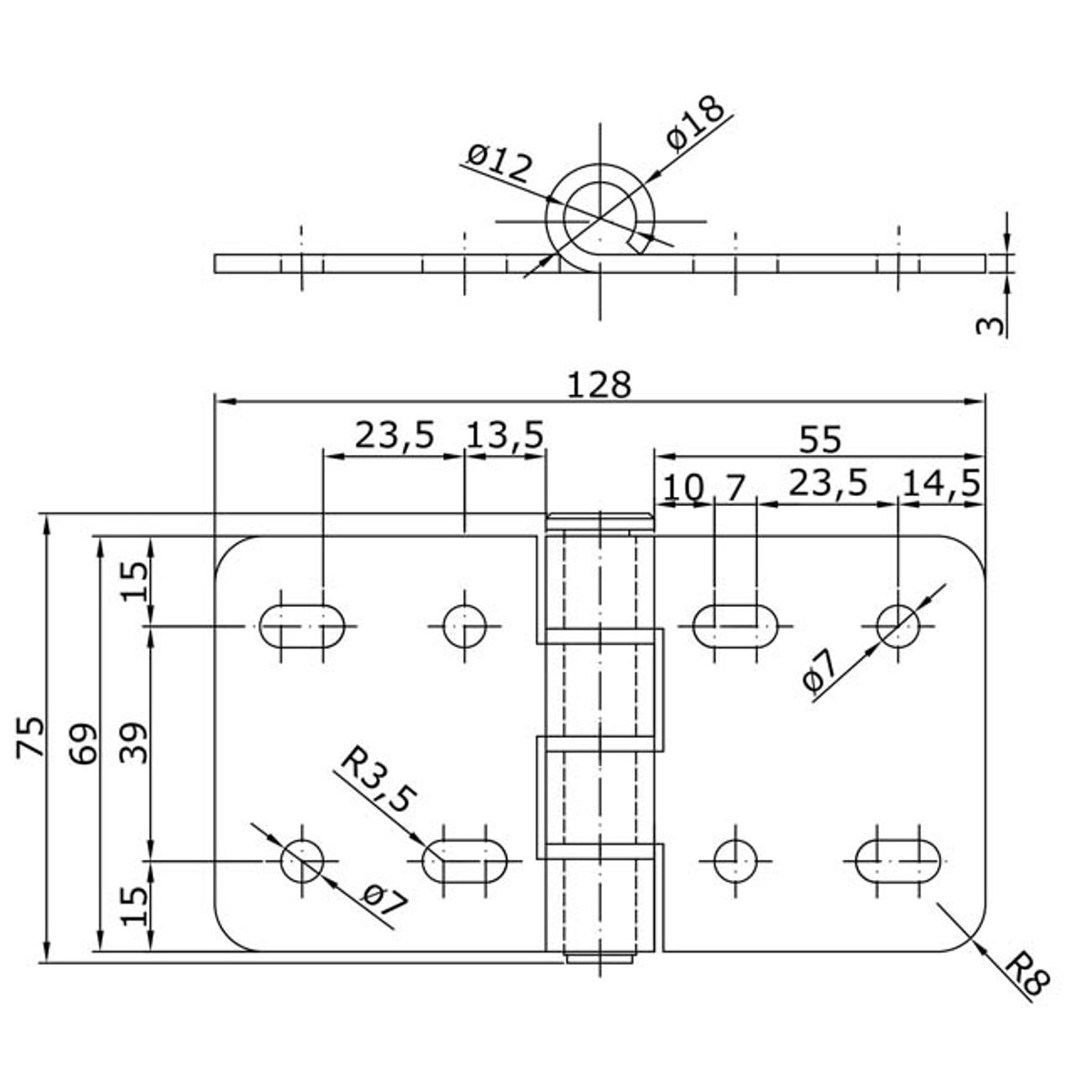

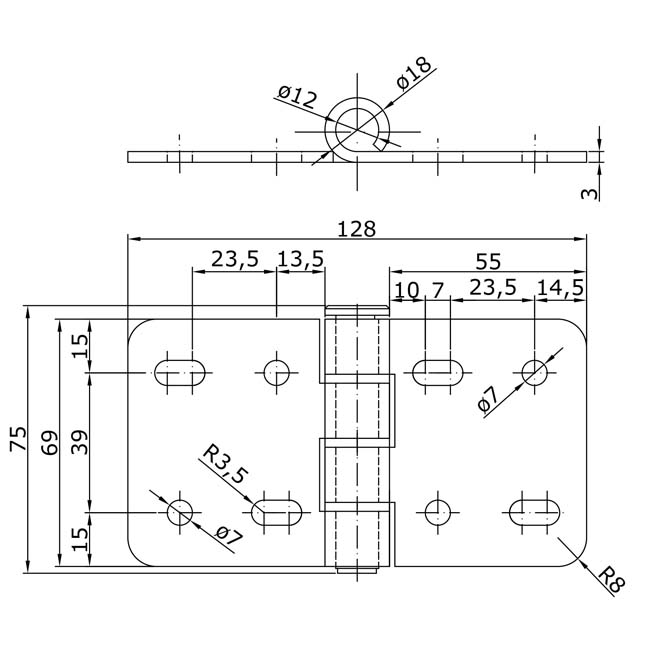

• Dimensions
  • Plate height: 69mm
  • Plate width: 55mm
  • Plate thickness: 3mm
  • Overall height: 128mm
  • Overall width: 128mm

Please note that:

If you need any assistance in building an order or what parts work with each other, please do not hesitate to contact us, either via our phone line, live chat, or our contact us page.
