U-60 Steel/Nylon Middle Hinge Trolley For Curved/Folding Systems 100/200kg

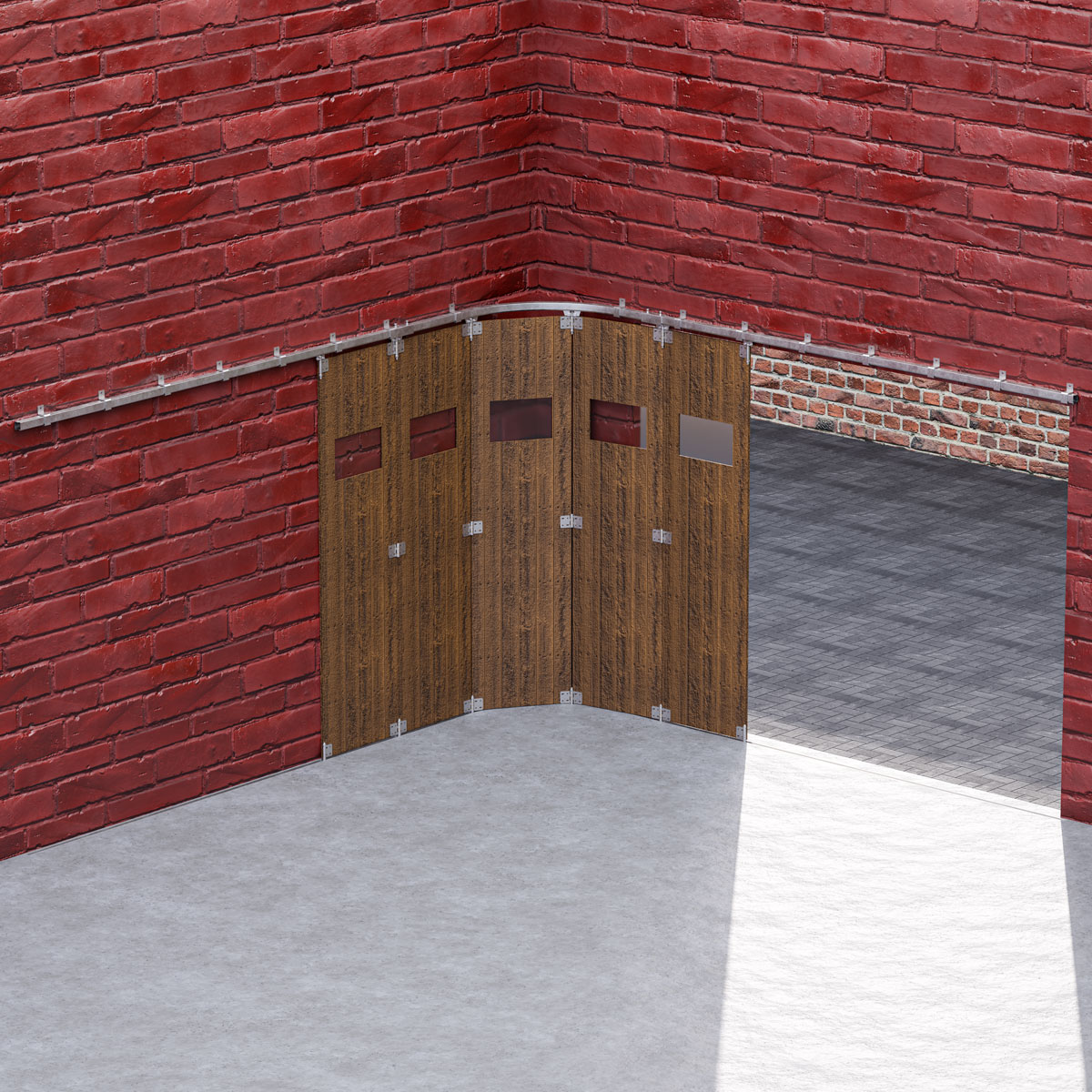

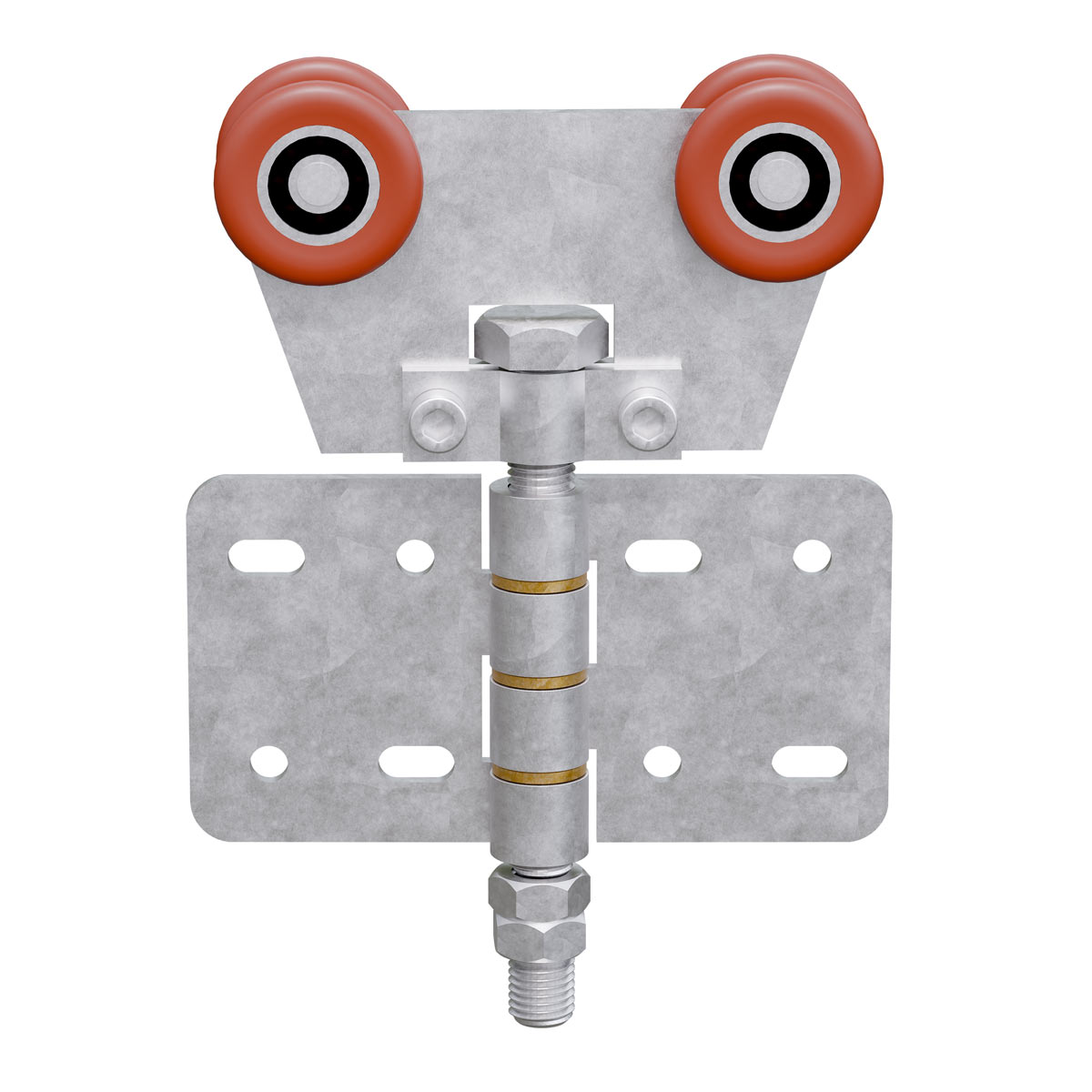

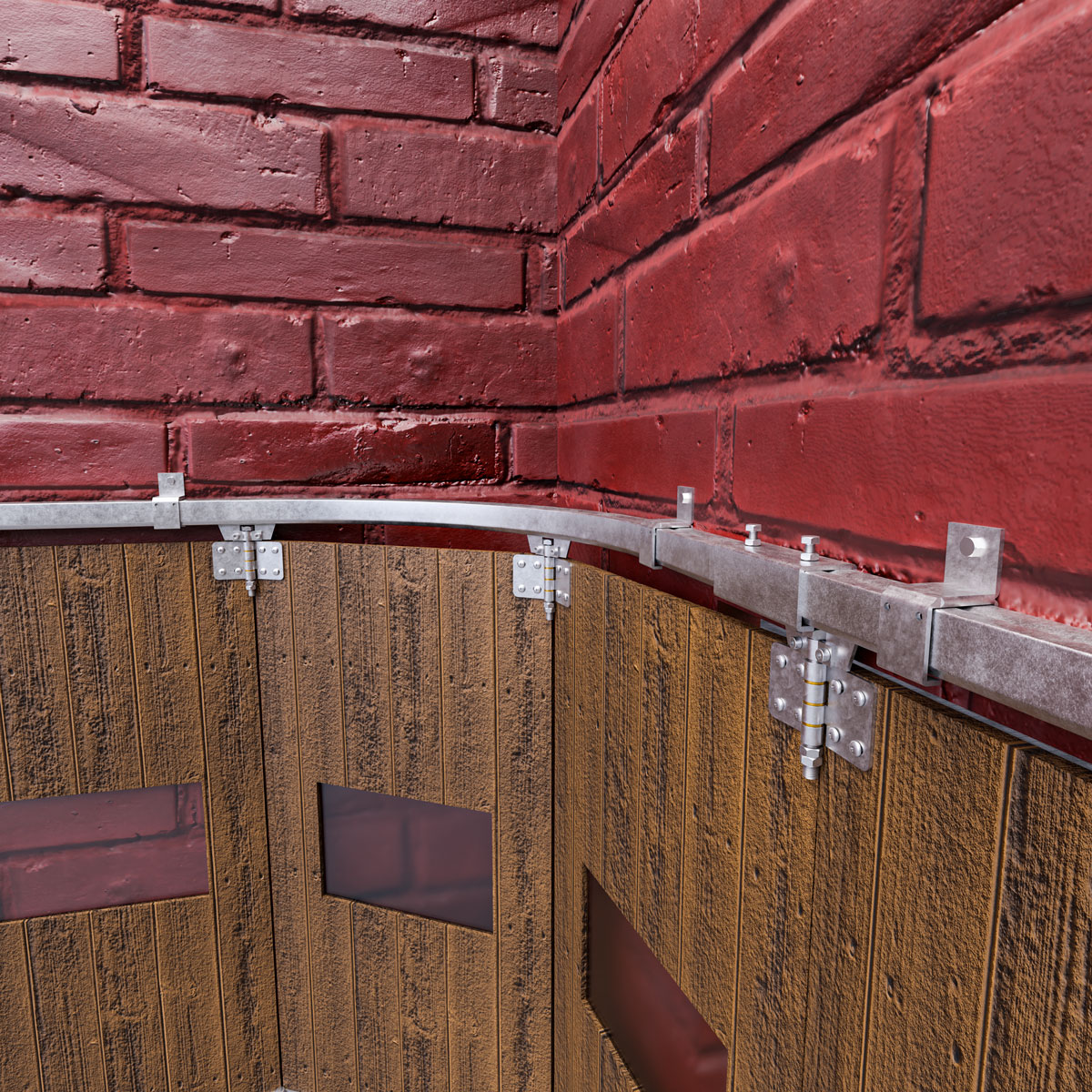

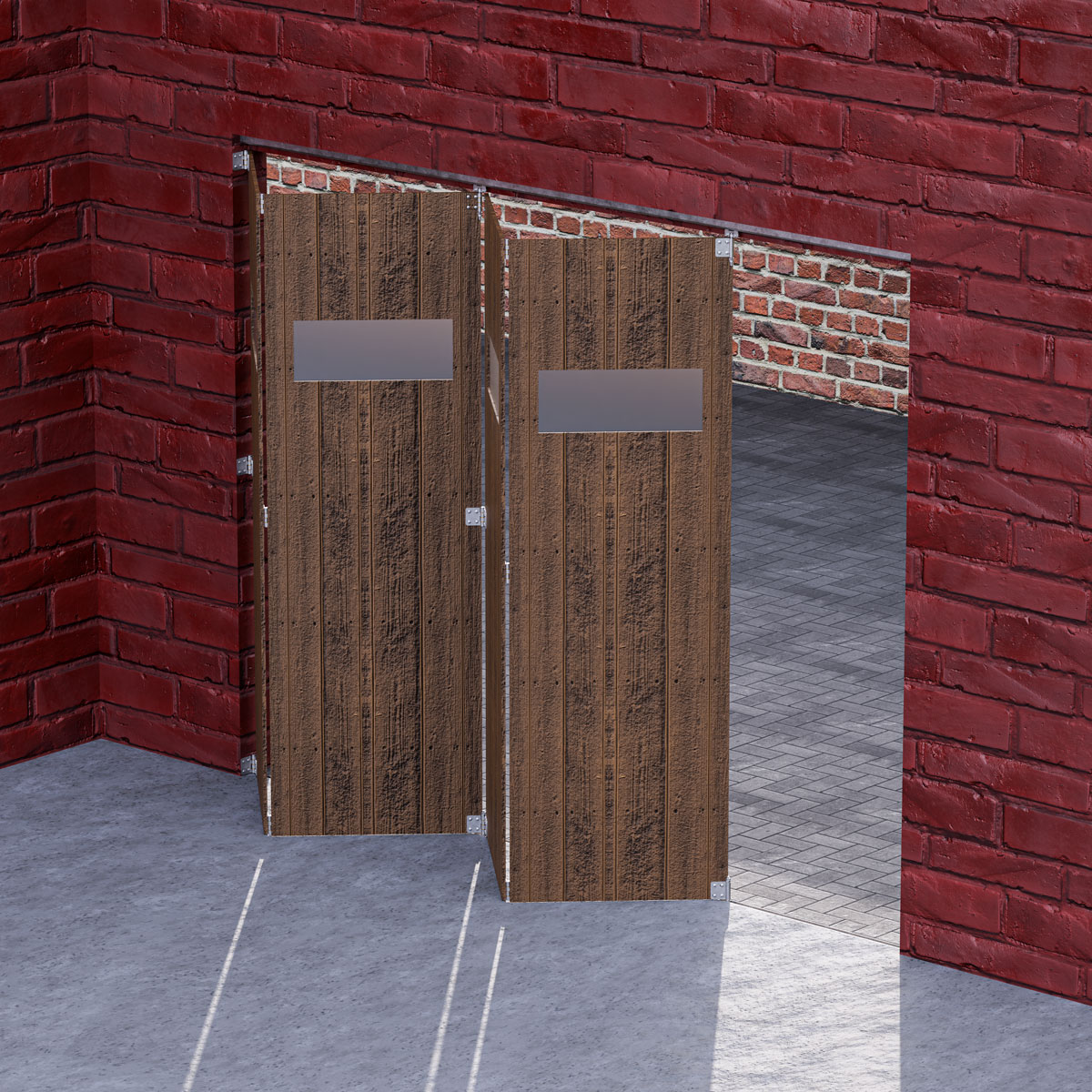

The U-60 steel/nylon middle hinge trolley for curved/folding industrial sliding track systems for commercial and agricultural applications. Perfect for enabling doors to either slide round a corner or fold to one side. This trolley slides into the U-60 top track and is screwed into a door panel which enables them to slide and fold. Designed with 4 nylon wheels and 1 middle hinge allocated in the screw of the trolley. The hinge plates would be screwed to both door panels by screwing each leaf of the hinge, which permits the folding and swinging movement for sliding curved/folding systems.

• M12 bolt
• Suitable for outdoor and indoor use
• Manufactured with DD11 zink plated steel
• To work with 100/200kg folding/curved systems
• All compatible components are available in related products below

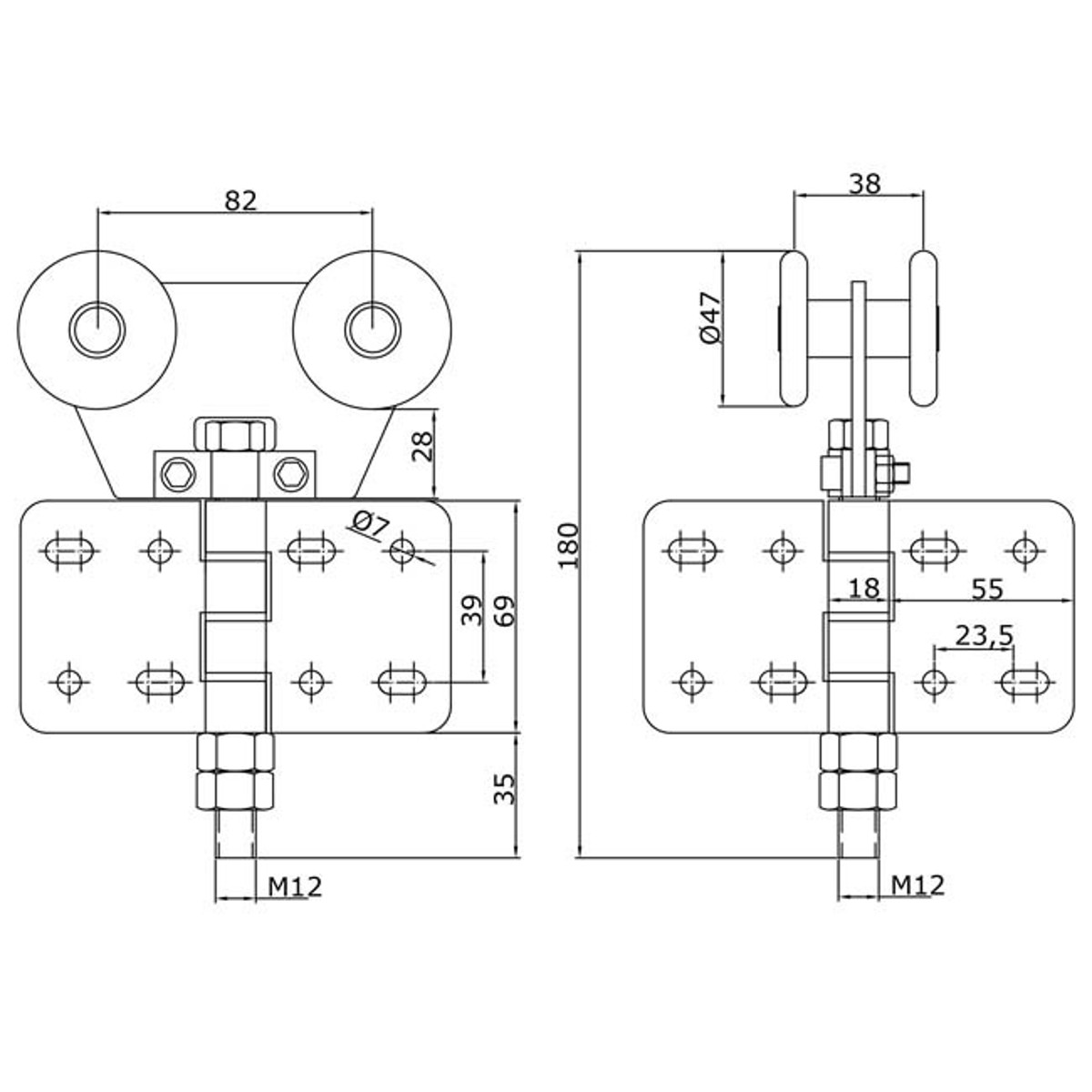

• Dimensions
  • Plate height: 69mm
  • Plate width: 55mm
  • Plate thickness: 3mm
  • Overall height: 180mm
  • Overall width: 128mm

Please note that:

• If you need any assistance in building an order or what parts work with each other, please do not hesitate to contact us, either via our phone line, live chat, or our contact us page.
