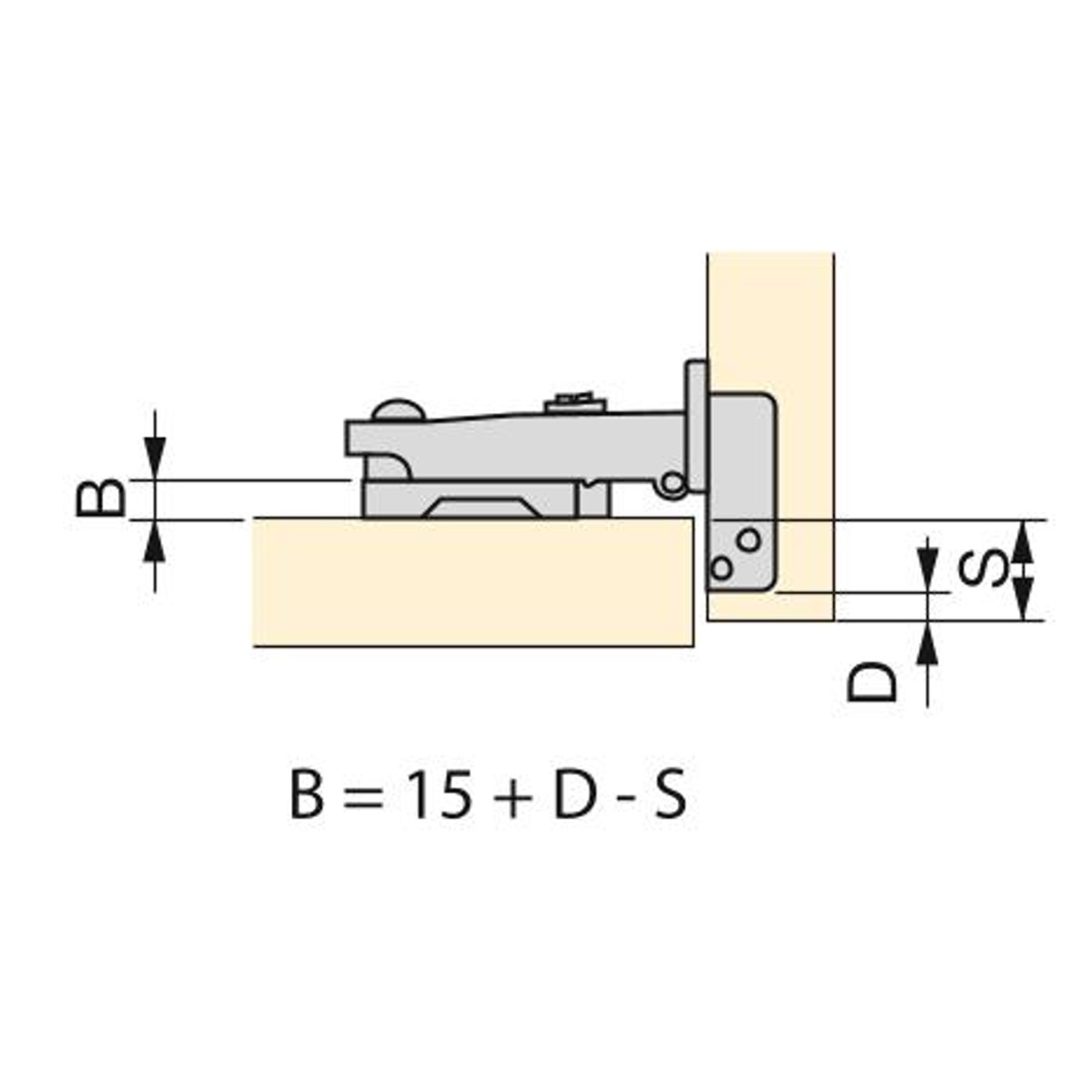

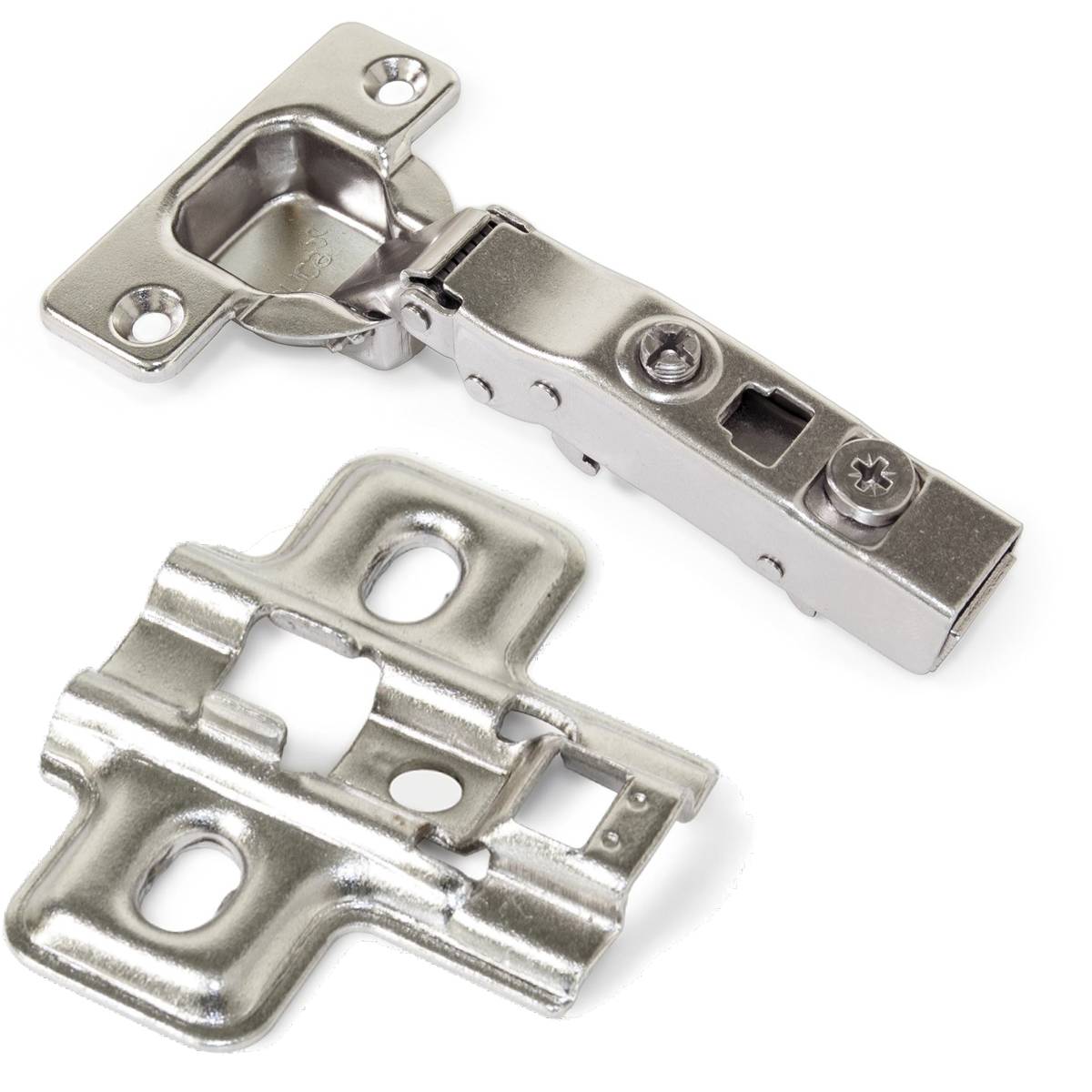

Get the best quality x91 unsprung 105 overlay hinge and mounting plate kit for your furniture at an affordable price. Upgrade your furniture with the x91 unsprung 105 overlay hinge. The x91 unsprung overlay hinge is a concealed hinge with a diameter of 35mm and 105º opening.
- Unsprung hinge

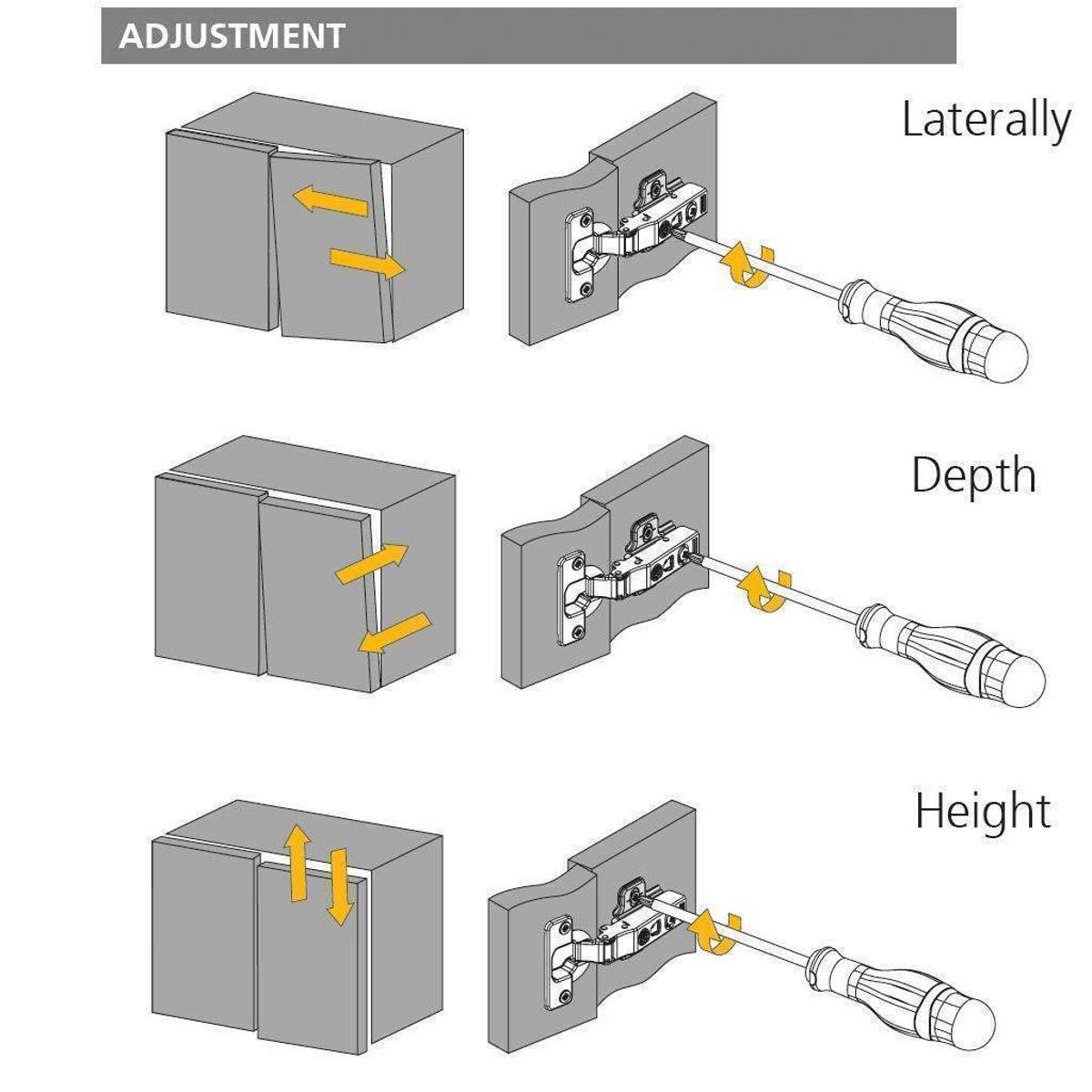

- 3 separate adjustments
- Door thickness: 14-24mm
- Depth adjustment by cam
- 4 varieties of mounting plates to choose from
- Clip on for easy mounting to the mounting plate
- We recommend to use flat head screws: Ø4 x 16

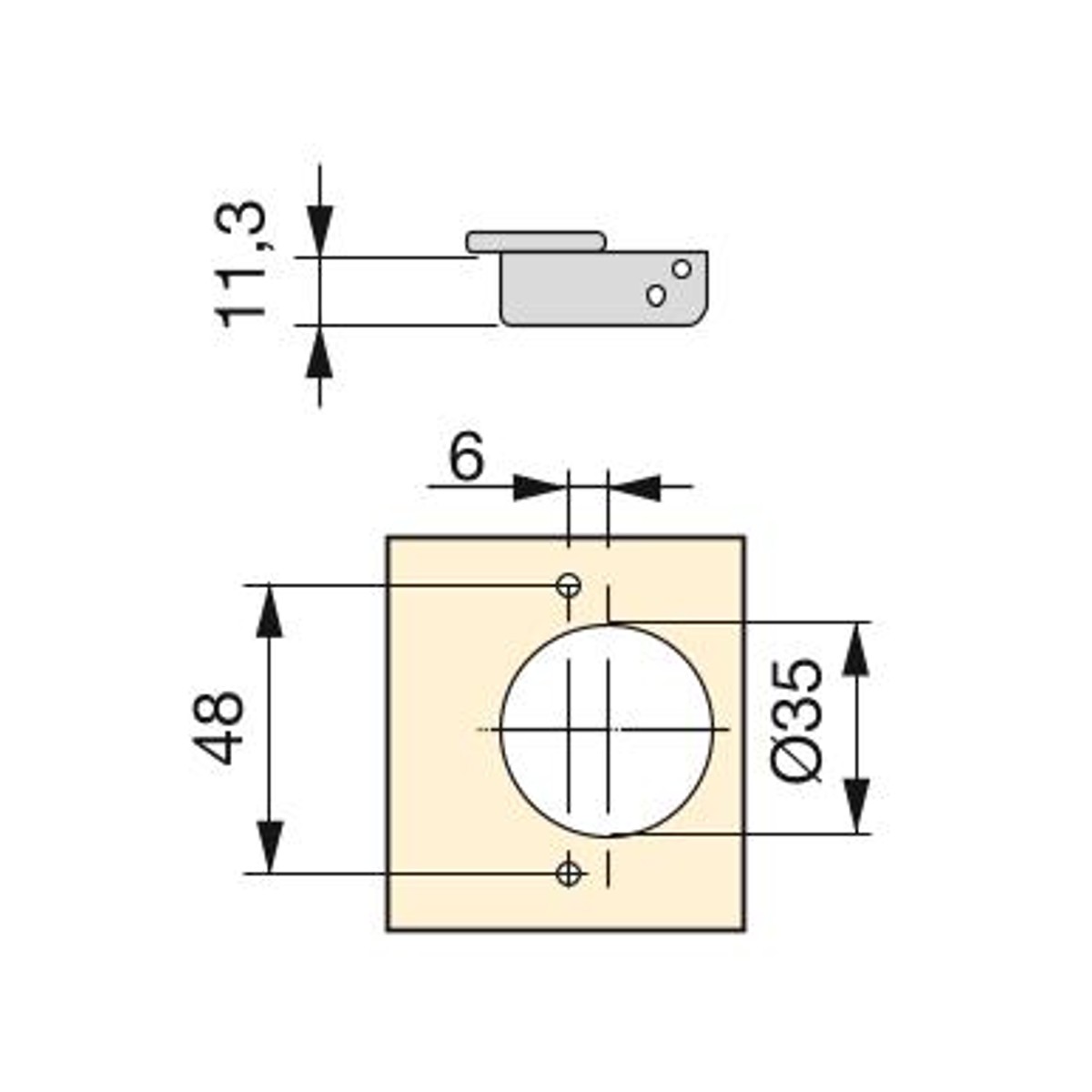

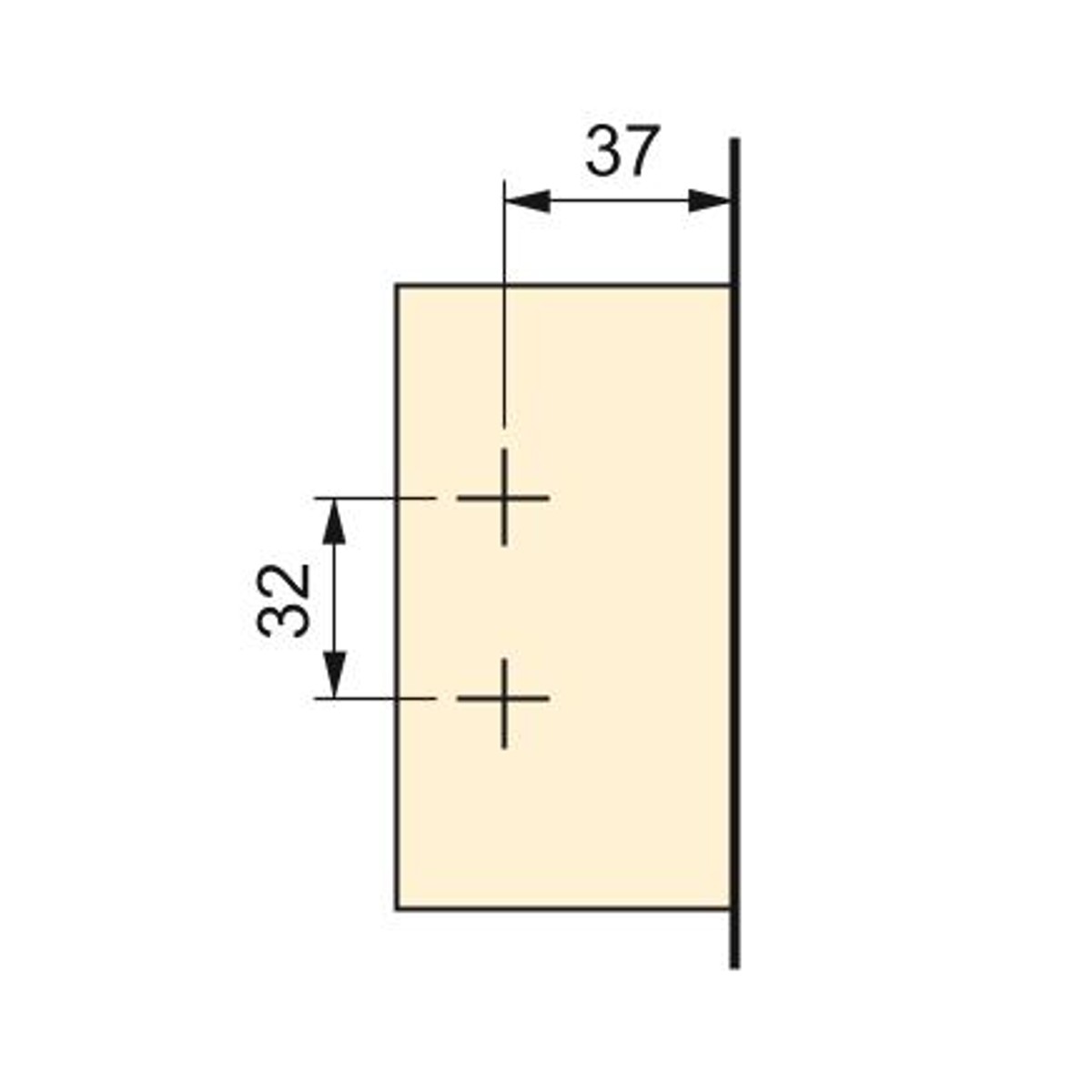

Mounting Plate:
Standard
